RAYVOLT Cruzer - Page 64

Owner manual
I
II
VII. DC Converter
1. Orange (3 pin connector)
X. Micro EIVA or End plug
1. Green (6 pin connector)
XIII. Rear light wire
1. Black (6 pin connector)
VIII. Brake sensor wires x2
1. Red (2 pin connector)
XI. Throttle wire
1. Black (6 pin connector)
XIV. Future use wire
1. Blue (4 pin connector)
IX. Light splitter wire
1. Blue (4 pin connector)
XII. Front light wire
1. Red (2 pin connector)
VI. Main bike wire
1. Black (8 pin connector)
III
IV
VVI
VII
VIII IX X XI
XII XIII
XIV

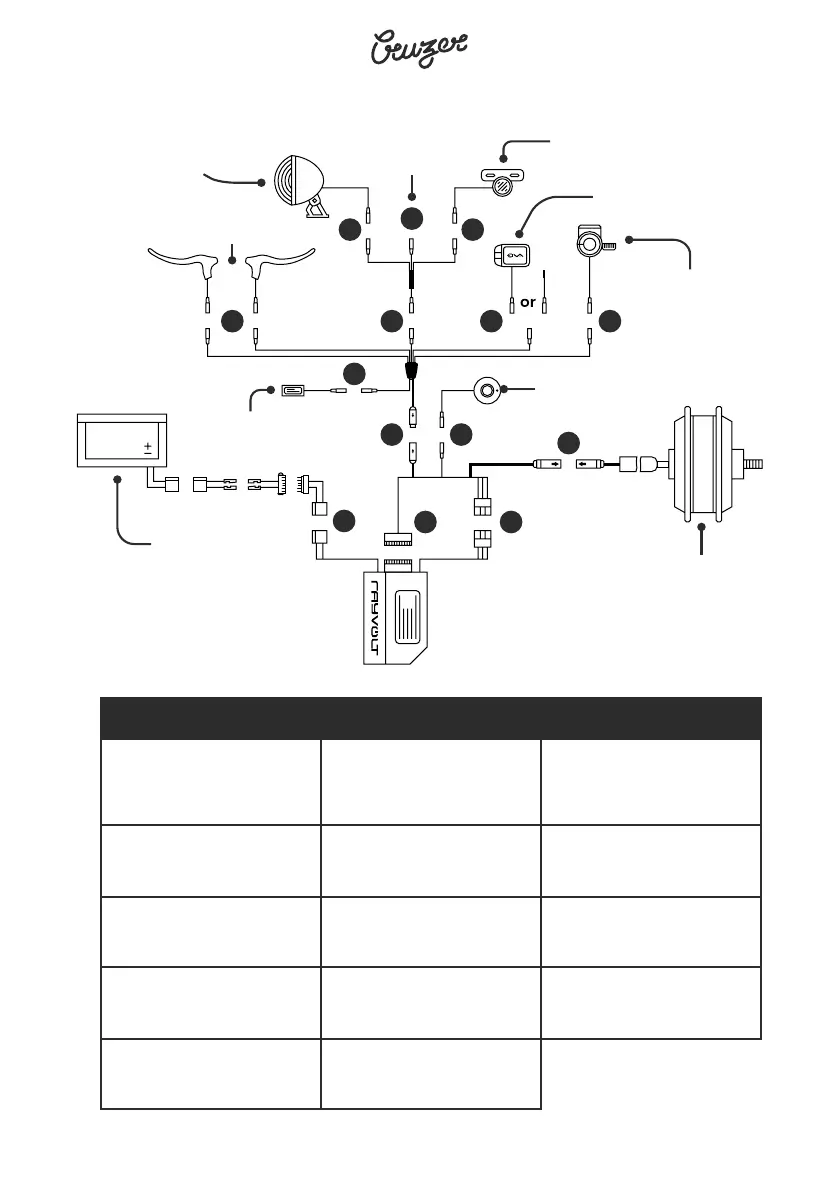

Controller Cruzer V4
CONTROLLER V4
I. Power wire
1. Red (+V)
2. Black (ground)
II. Controller wire 1
1. White connector
III. Controller wire 2
1. Yellow (3 pin connector)
IV. Motor wire
1. Black (9 pin connector)
V. Pedal Assist Sensor wire
1. Orange (3 pin connector)
BRUSHLESS
MOTOR
BATTERY
PAS
DC
CONVERTER
MICR OEIVA OR
END PLUG
REAR LIGHT
FUTURE
USE
FRON T
LIGHT
THROTTLE
BRAKES
