WARNING: Once a bolt or fastener is seated, impacting for longer than five (5) seconds will cause
excessive wear and possible damage to the impacting mechanism. If it takes longer than five seconds to
tighten or loosen your bolt or fastener, we recommend the use of a larger size impact wrench.
MAINTENANCE
An in-line filter-regulator-lubricator is recommended as it increases tool life and keeps the tool in
sustained operation. The in-line lubricator should be regularly checked and filled with air tool oil.
Proper adjustment of the in-line lubricator is performed by placing a sheet of paper next to the tool’s
exhaust ports and holding the throttle open approximately 30 seconds. The lubricator is properly
set when a light stain of oil collects on the paper. Excessive amounts of oil should be avoided.
In the event that it becomes necessary to store the tool for an extended period of time
(overnight, weekend, etc.), it should receive a generous amount of lubrication through the
air inlet. The tool should be run for approximately 30 seconds to ensure oil has been evenly
distributed throughout the tool. The tool should be stored in a clean and dry environment.
Recommended Lubricants:
Use air tool oil or any other high grade turbine oil containing moisture absorbent,
rust inhibitors, metal wetting agents and an EP (extreme pressure) additive.
Impact Clutch Lubrication:
The oil reservoir in the anvil housing should be checked every 40 hours of operation. Remove the
oil plug from the housing and hold tool so the oil port is lower than the anvil housing. Drain oil.
Measure and refill with approximately 1 oz. (30 rot) of SAE 30 weight oil. Never over fill the anvil.

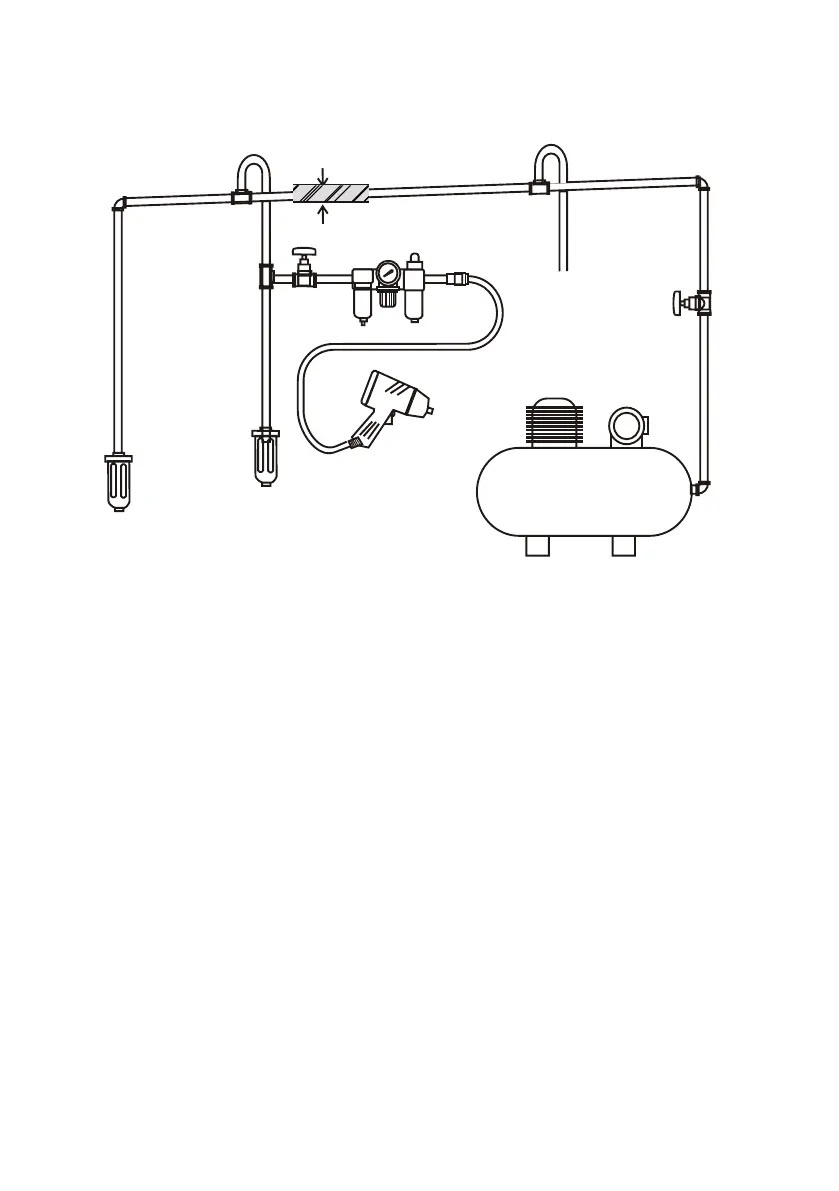

Minimum 1/100 Slope
Regulator
Filter
Oiler
Stop
Valve
Air Tool
Auto
Drain
Valve
Air Compressor
To Next Page
