Razor 100 - V-Belt and Rear Wheel

250-070
P2007 Jens Broecking © Firma WJG, Braunschweig. Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung

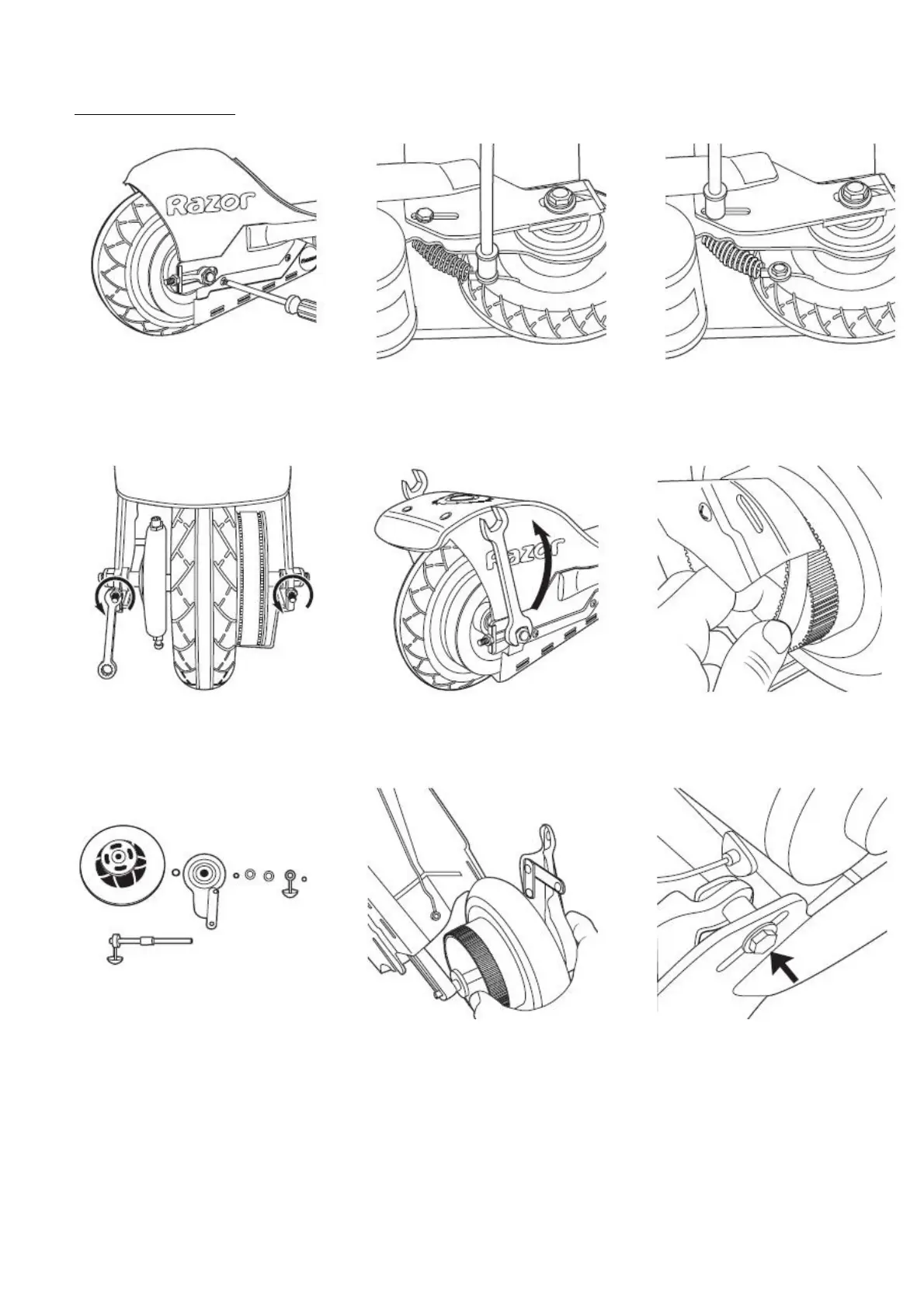

V-Belt and Rear Wheel:
• Release the screw and remove the cover of the v-belt.
• Loosen the brake line and remove it.
• Unfasten the brake housing of the rear wheel.
• Unscrew the adjusters of the rear axle.
• Loosen the screw of the rear axle itself.
• Push the rear wheel forward and strip off the v-belt.
• To exchange the tire or the whole rear wheel remove it completely. Make sure that you have an eye on
the correct order of the mounting components.
• Put the mounting parts to the new rear wheel and place together with the rear axle to its place.
• Tighten the screw of the rear brake.
