DOMINATOR INSTALLATION AND OPERATION INSTRUCTIONSPage 8

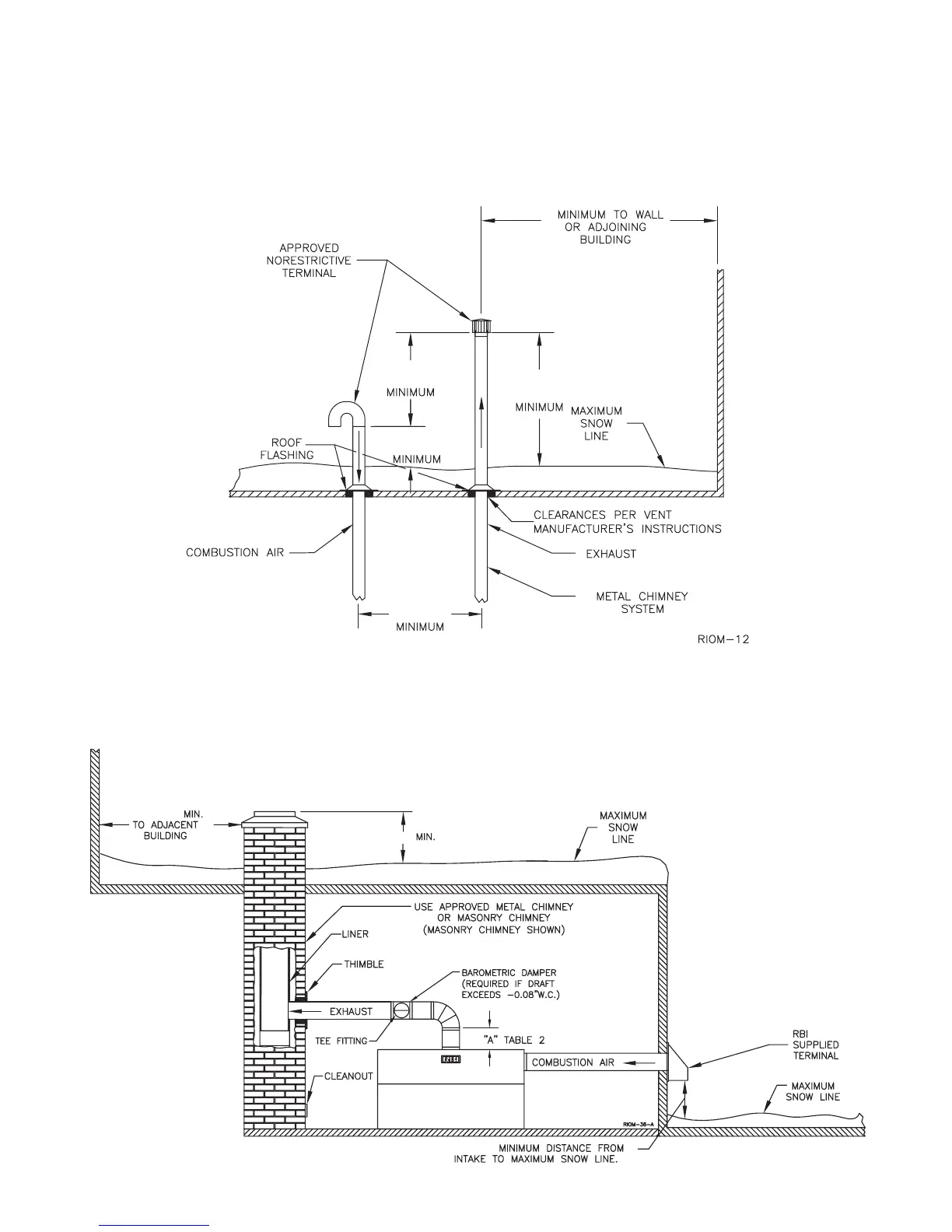

Figure 6 - Vertical Combustion Air and Venting, Metal Chimney System Shown
Locate exhaust terminal downwind from air intake to reduce potential for fl ue gas recirculation.
Figure 7 - Combination Air Intake And Venting, Masonry Chimney Shown
10 FT 3.1 m
4 FT
1.2 m
5 FT
1.5 m
1.5 FT
0.5 m
5 1/2 FT
1.7 m
1.5 FT .5m
10 FT 3.1 m
3 FT 1 m
