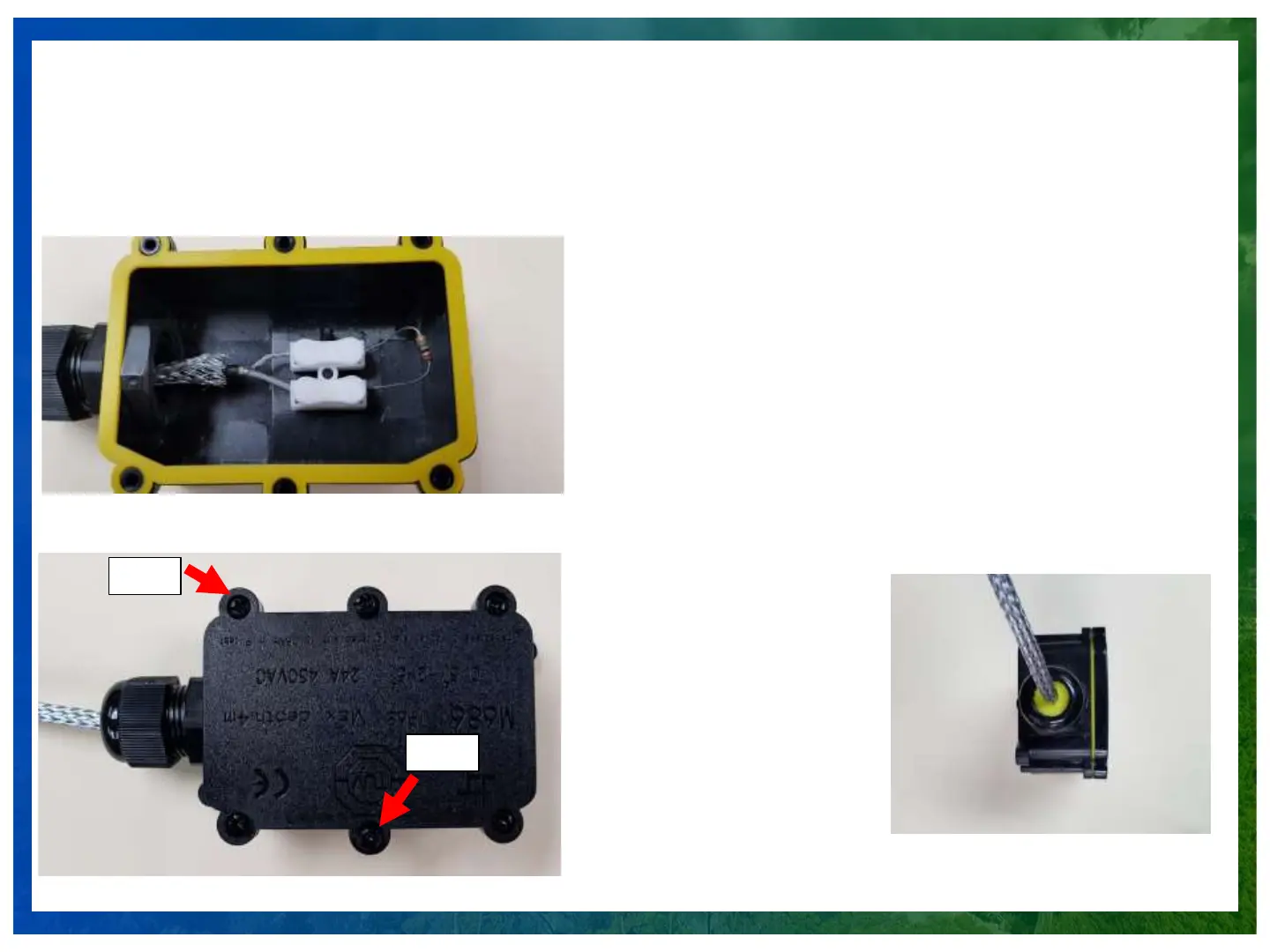

Step 4
Press the terminal onto
the holding pin until it is
firmly secured.
Do not leave the terminal
loose in the box.
Movement of this piece
will trigger false alarms.
Step 5
Close the cover following
the numbers sequence.
When finished, the box
should appear as
indicated here.
1
2
3
45
6
When finished, ensure that
the cable is sealed within the
assembled case as shown.
First
Last
Attention!
1. When stripping only use the proper tool, verify ALL wire strands stay intact.
2. Verify there are no shorts between the sensing wire and GND wire when connecting to the end of the
line resistor.
