Function Description

The IRONCLAD system is a fence-mounted sensor system that detects attempts to climb, cut, or otherwise breach a fence. It consists of a sensor cable, an End-Of-Line Termination Unit (MCTR), and a Local Processing Unit (LPU-400). The sensor cable is attached to the fence and detects vibrations caused by intrusion attempts. These signals are then processed by the LPU-400, which can trigger an alarm. The system is designed to filter out false alarms caused by natural fence movement due to weather.

Important Technical Specifications

Sensor Cable:

Length per zone: Up to 1000ft (300m) per zone.

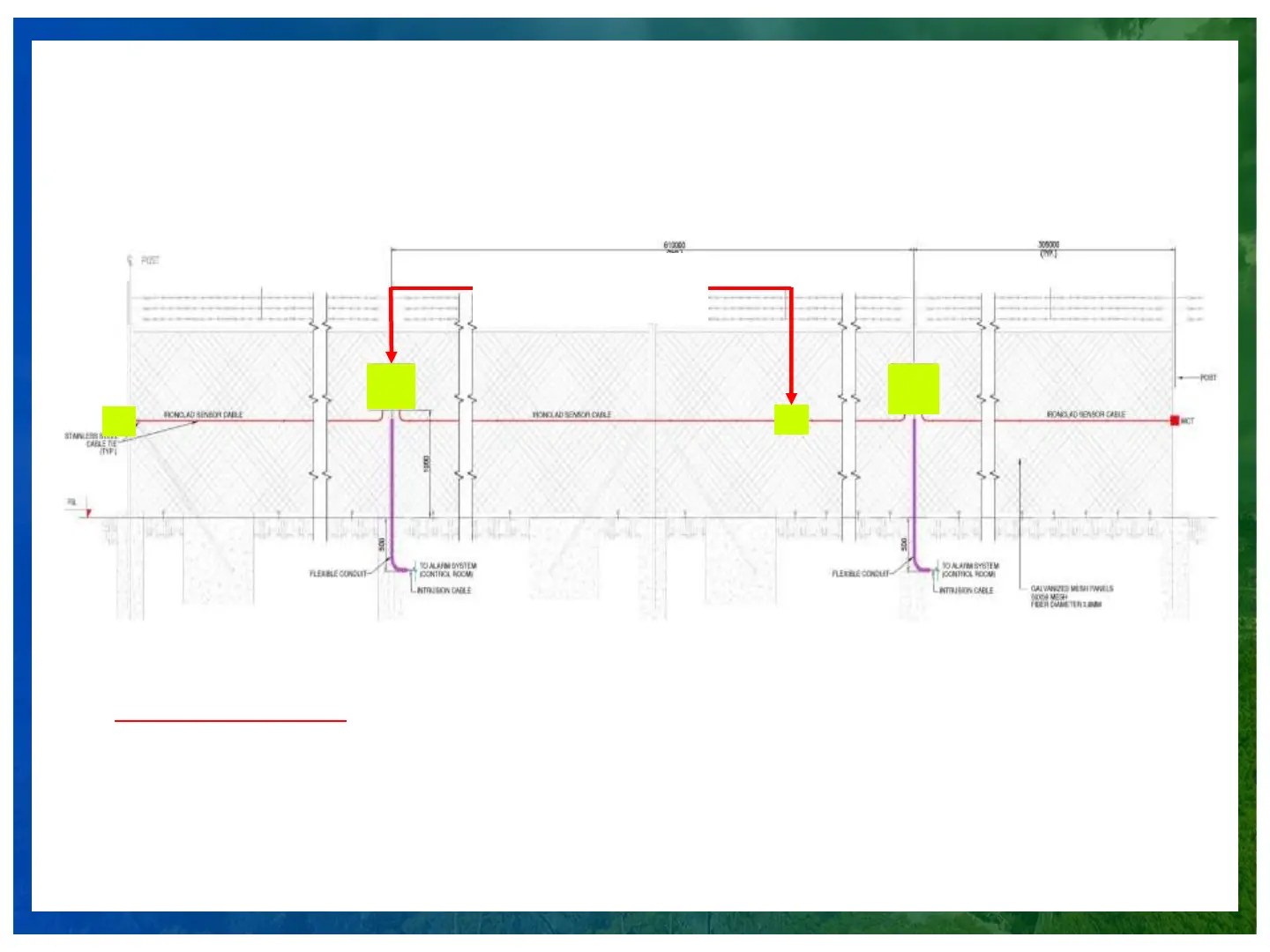

Installation: Must be attached to the internal (protected) side of the fence, ideally in the middle and running parallel to the ground within the chain link's low point groove.
Ties: Attached every 12 inches (30 cm) using IRONCLAD ties (recommended for durability) or outdoor UV plastic tie wraps/zip ties. Ties must be vertical, securely tightened to prevent sliding, but not over-tightened. White zip ties are not recommended.
Around Poles: A "drop loop" of 2-3 fingerbreadths (2.5 - 4 inches) should be created around poles to allow free movement and prevent false alarms from natural fence movement. The cable should not be run between the pole and the fence.
Stripping: Requires proper wire strippers; burning the coating is prohibited as it harms detection capability. All wire strands must remain intact.

End-Of-Line Termination Unit (MCTR):

Purpose: Terminates the sensor cable at the end of each zone. Essential for zone functionality; a zone will remain in alarm without it.
Components: Cover screws, push terminals, case cover, 1M (1000k) Ohm resistor, holding pin.
Assembly: The sensor cable's clear wire is connected to the push terminals along with the resistor. The terminal is then pressed onto a holding pin for secure fastening. The case is closed in a specific sequence (1, 5, 4, 3, 6, 2).
Mounting: Mounted at the very end of each zone with the cable input facing the ground.
Pre-installation check: Verify no shorts between sensing wire and GND wire.

Local Processing Unit (LPU-400):

Models: LPU-400 (general) and LPU-402 (specific wiring example).
Power Input (DC): 12-24VDC. AC power is explicitly prohibited.
Chassis Ground: Connect to a true ground to protect against surges and lightning.
Sensor Cable Inputs: Dedicated inputs for Zone 1 (Z1) and Ground (GND).
General Inputs: 4 general inputs for any sensors (INPUT 5, 6, 7, 8).
Alarm Output Terminals: Dry contact relay alarm outputs (Z1, Z2, Z3 with corresponding GNDs). Each input has a dedicated output (e.g., Zone 1 triggers Relay 1). Outputs are Normally Closed (NC) by default but can be changed to Normally Open (NO) via LPU Calibration software.
Power Outage Alarm: Dedicated relay output for power cut/drop indication.
Configuration Board: Includes a tamper switch.
Indicator Lights (LEDs):
- Red LED (Sensing Indication): Must be solid at number 1 when the fence is not touched. Flicker or other numbers indicate "noise" and potential false alarms. Noise can be caused by loose connections, resistance outside 0.95-1Mohm, or lack of sensor ground wire.
- Green LED (Active Zone): At least one green LED must be lit per active zone.
- Power LEDs: All power LEDs (indicated on slide 17) must be on.
- Alarm Indication/Relay Latched: Indicates an active alarm.
- USC-C For Calibration: USB-C port for calibration.
- CPU Power Indicator LED: Indicates CPU power status.
- Power Interface Operation Indicator LED: Indicates power interface status.
- Voltage Input Indicator LED: Indicates voltage input status.
- Voltage Passes the Surge Protection of the Surge Protection: Indicates surge protection status.

Usage Features

Installation Area and Fence Condition:

Preparation: Clear the fence and immediate area of overhanging branches, shrubbery, bushes, etc.
Obstructions: Ensure no objects (trash, loose signs) are attached to, rattling on, or interfering with the fence.
Fence Condition: Best performance on a fence that is fully intact, straight, under tension, and free of obstructions. Signs should be securely fastened.

Sensitivity Level Adjustment:

Process:
1. Enter setup mode by clicking "ENTER."
2. Green LED in Zone 1 blinks.
3. Select zone using "LEFT" and "RIGHT NAVIGATOR" buttons.
4. Adjust sensitivity using "UP" and "DOWN" buttons.
5. Press "ESC" to exit calibration.
Sensitivity Setting Jumper: Allows selection between "Low Sensitivity" and "High Sensitivity."
Reset: Board can be reset after every change.
Disarmed/Disabled: If both sets of LEDs are off, the system is disarmed. Press "ENTER" then "UP" to enable.
Power Saving: Sensitivity lights turn off after 1 minute to save power; other green LEDs remain on.

Swing Gate Protection:

MCTXT: Used for swing gate protection.
Cable: Non-sensitive RG6 Direct Burial cable under the gate in waterproof conduit.

Maintenance Features

Warranty:

Extended Warranty: 3 years on the Processor and Cable. Requires scanning a QR code or visiting Warranty.rbtec.com.
Initial Setup: Scan QR code before installation to activate the warranty.

Troubleshooting (Default LPU Processor Settings):

All power LEDs on slide 17 are on.
No alarms indicated on RLY outputs.
Only 1 red LED shown per zone.
At least 1 green LED lit on each active zone.

Sensitivity/Alarm Testing:

Method: ONLY by tapping on the fence (simulating knocking on a door or using a screwdriver/wrench to simulate wire cutters). Pulling, pushing, or shaking the fence is incorrect.
Procedure:
1. Tap the fence; if detected, the red LED moves from 1 to 6. Lower sensitivity until only a hard tap causes the red LED to reach 6 and trigger the alarm LED.
2. Once this level is reached, raise sensitivity by 1 level to achieve the detection level.
3. Test by simulating a person climbing or a cut (tap twice with a heavy metallic tool).

Periodic Testing:

Recommended monthly to quarterly system tests to verify proper operation.

RBtec IRONCLAD - Page 4
