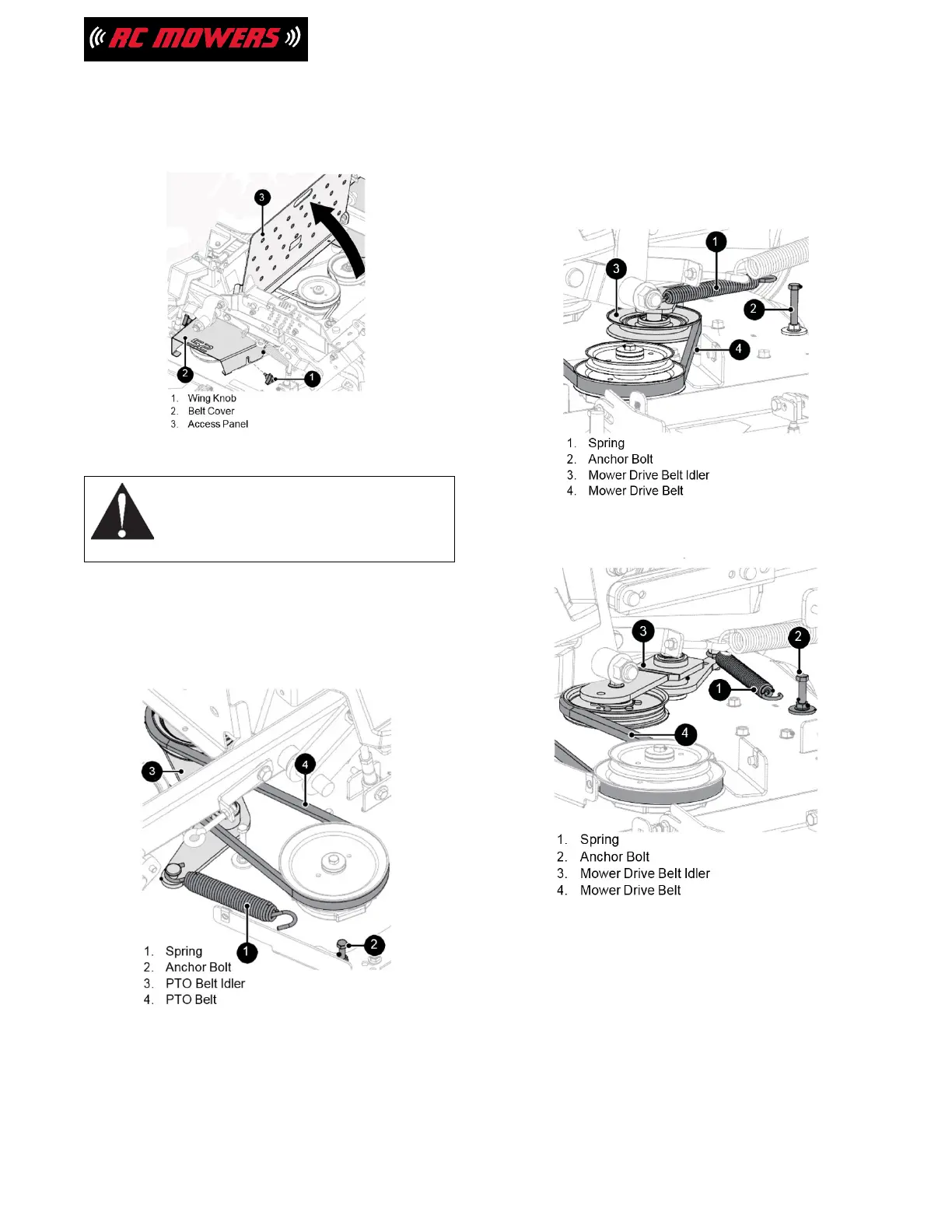

RC Mowers TK-60XP - Page 28

4. Remove wing knobs securing belt covers to
deck and remove belt covers.
5. Open access panel.
Figure 29
CAUTION: Use care when releasing
idler spring tension. Keep body parts
away from idlers when performing this
operation.
See Figure 30.
6. Slowly remove spring hook from anchor
bolt
to release tension from belt idler.
7. Remove PTO belt.
Figure 30
Remove Mower Drive Belt
See Figure 31 and Figure 32.
1. Slowly remove spring hook from anchor bolt
to release tension from belt idler.
2. Remove mower drive belt.
Figure 31 – 52" Deck
Figure 32 – 60" Deck
26
