Follow these steps to connect the equalizer to your audio system.
Cautions:
• Use only shielded audio cable with phono-type connectors, available at your local
RadioShack store.
• Before you connect the equalizer, turn off all the components in your audio system and
unplug their power cords.
• Before you plug in the equalizer’s power cord, complete all the connections and be sure
the equalizer’s
POWER
button is set to the out position.

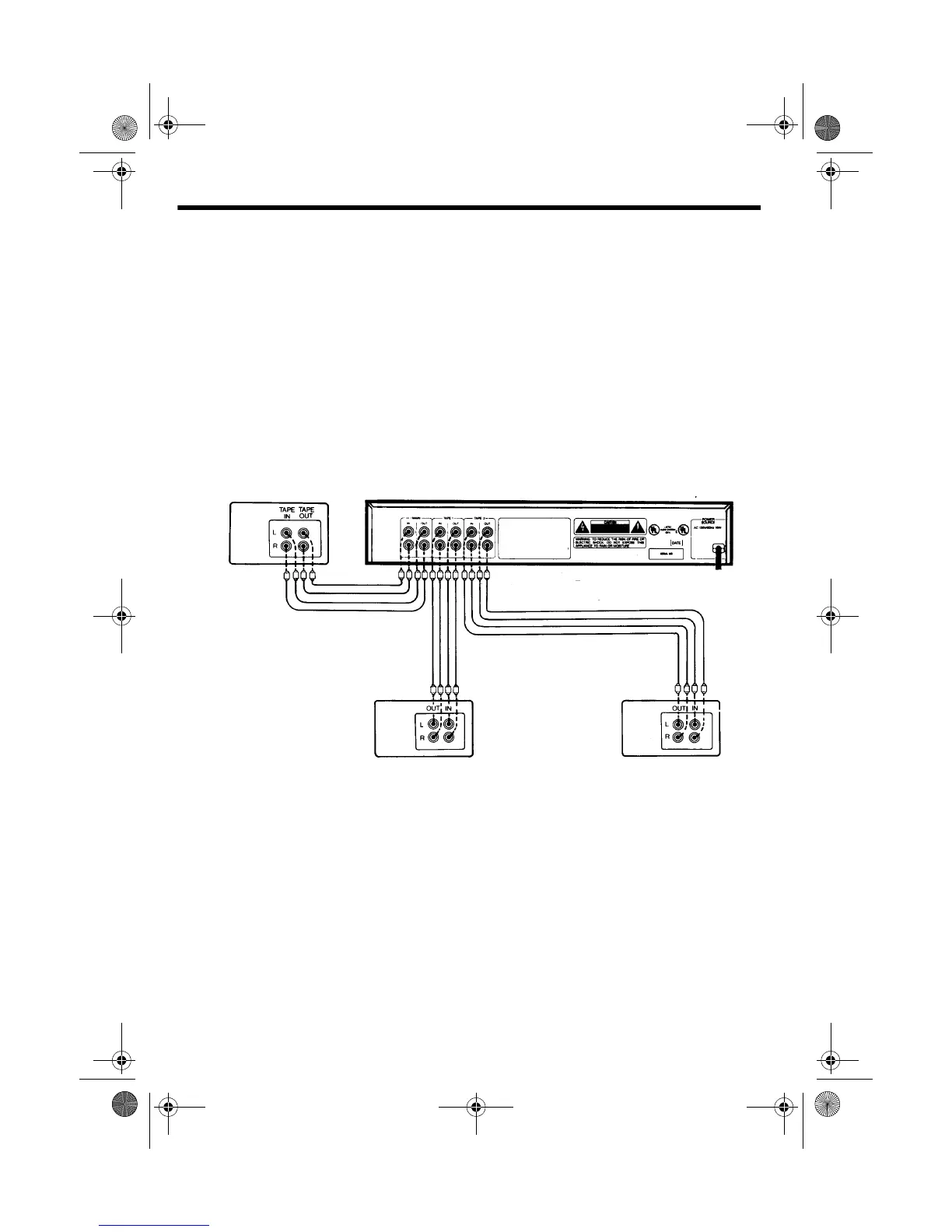

1. To connect the equalizer to your
receiver, connect the receiver’s left and
right TAPE OUT jacks to the equalizer’s
L
and
R MAIN IN
jacks. Then connect
the equalizer’s
L
and
R MAIN OUT
jacks
to your receiver’s left and right TAPE IN
or TAPE MONITOR jacks.
2. You can connect a tape deck to each set
of tape jacks (
TAPE 1
and
TAPE 2
) on
the back of the equalizer. To connect
each tape deck, connect the equalizer’s
L
and
R TAPE OUT
jacks to the tape
deck’s left and right IN jacks. Then
connect the tape deck’s OUT jacks to
the equalizer’s
L
and
R TAPE IN
jacks.
3. Plug the equalizer’s power cord into
your receiver’s switched power outlet or
any standard AC outlet.
Warning:
The equalizer’s power cord
has a polarized plug. To prevent electric
shock, do not use an extension cord or
other receptacle unless you can fully
and easily insert the plug’s blades.
4. Reconnect the other components’
power cords.
Tape Deck 2Tape Deck 1
Stereo Receiver
