ator in planning a show. Table IV below gives the
running time in minutes of 16mm films of various
footages.
TABLE III
PROJECTION LAMP WATTAGE VS SCREEN
TYPE AND SIZE
(Values are for a reasonably darkened room)
Lamp
Watts
300
500
750
1000
Average
Lamp
Life
Hours
25
25
25
10
Recommended Picture Width in Feet
Matte Screen
2-3
2-1/2 - 3-1/2
3-1/2 - 4-1/2
4-6
Beaded Screen
3-5
4-6
6-8
8-10
TABLE IV
RUNNING TIME OF 16MM FILM
Footage
400
600
800
1000
1200
1400
1600
1800
2000
Time in Minutes
Sound
11
17
22
28
33
39
44
50
56
Silent
14.8
22.2
29.6
37.
44.4
51.8
59.2
66.6
74.
MAINTENANCE
Lubrication
It is important that the projector be properly
lubricated. Refer to the "LUBRICATION CHART".
Lamp Adjustment on "Senior" Model
Refer to figure 5 for location of the LAMP
ADJUSTMENT screw on the "Senior" model. When-
ever a new lamp is installed the screen illumination
should be checked, without film in the picture gate,
for uniform distribution of light on the screen. To
make the adjustment turn the LAMP ADJUSTMENT
screw to the right or left as required, until the
screen is lighted uniformly.
Cleaning
If the equipment is to give consistently good
performance, it must be kept clean at all times.
Dust, oil, particles of emulsion, and all other dirt
should be removed. To clean the equipment proceed
as follows:
PROJECTION
LAMP
LAMP
ADJUSTMENT
SCREW

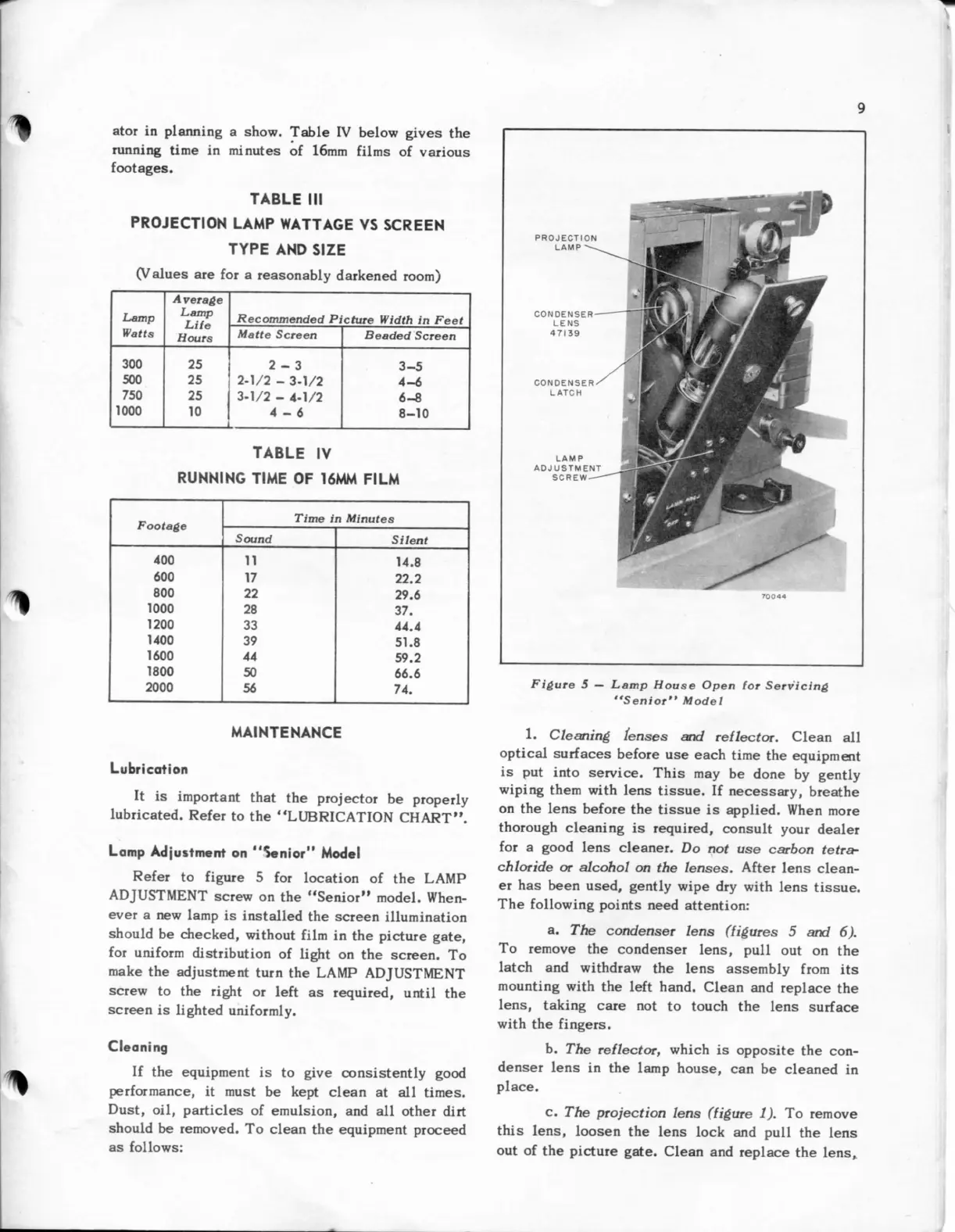

Figure 5 — Lamp House Open for Servicing
"Senior" Model
1. Cleaning fenses and reflector. Clean all
optical surfaces before use each time the equipment
is put into service. This may be done by gently
wiping them with lens tissue. If necessary, breathe
on the lens before the tissue is applied. When more
thorough cleaning is required, consult your dealer
for a good lens cleaner. Do not use carbon tetra-
chloride or alcohol on the lenses. After lens clean-
er has been used, gently wipe dry with lens tissue.
The following points need attention:
a. The condenser lens (figures 5 and 6).
To remove the condenser lens, pull out on the
latch and withdraw the lens assembly from its
mounting with the left hand. Clean and replace the
lens, taking care not to touch the lens surface
with the fingers.
b. The reflector, which is opposite the con-
denser lens in the lamp house, can be cleaned in
place.
c. The projection lens (figure 1). To remove
this lens, loosen the lens lock and pull the lens
out of the picture gate. Clean and replace the lens.
