question

may

arise

as to

whether

or not a

reel

has

been

rewound.

This

may

easily

be

determined

by

examining

the

film

as

explained

in

step

2 of the

section

titled

"Threading".

If the

film

is not in

the

position

specified

there,

it

requires rewinding.

Packing

Up

after

the

Show

When

the

show

is

over,

in

order

to

pack

up a

"Senior"

model

proceed

as

follows:

1.

Remove

the

reels

and the

reel

arms

from

the

projector

and

replace

them

in the

projector cover.

2.

Crank

the

tilting control

downward

as far as

it

will

go.

3.

Disconnect

the

power

and

speaker

cables.

Form

them

into

rolls

of

appropriate

size,

and re-

place

them

along

with

the

empty

reel

and any

reels

of

film

in the

speaker

case.

If the

equipment

does

not

include

a

speaker, pack

the

power

cord

in

the

projector

cover.

4.

Push

the

spring

belts

into

the

projector

case

and

replace

the

cover

on the

projector.

Pack

up a

"Junior"

model

in the

following

manner:

1.

Mount

the

empty

reel

on the

upper

reel

arm

shaft

and

disconnect

the

speaker cable

from

the

speaker

and

projector. Leave

the

cable

lying

on

the

floor

fully

extended, free

of

obstructions,

straight

and

untangled,

so

that

it can be

wound

without

difficulty

onto

the

empty

reel.

2. Set the

REWIND-OPERATE

lever,

on the

projector,

in the

OPERATE

position. Pick

up the

plug

at the end of the

cable near

the

projector

and

lay

it in the

reel;

bring

it out of the

side

of the

reel

—

between spokes

— and

around

the

nearest

spoke

and

back into

the

reel again

finally

leaving

it

lying between

the

next

two

pairs

of

sookes

as

shown

in

figure

4a.

This

is

done

so

that

the

plug

and

cable

will

not

fall

out of the

reel

when

it is

turned.

Rotate

the

reel

by

hand,

in the

rewind

direc-

tion,

for

three revolutions

to

wind

on

that

number

of

turns

of

cable.

Put the

REWIND-OPERATE

lever

in the

REWIND

position

and

start

the

projec-

tor

to

wind

the

cable

onto

the

reel.

Guide

the

cable

by

hand

while

it is

winding,

and

when

it is

comp-

letely

wound,

weave

the

loose

end

about

a

spoke

to

prevent

it

from

unwinding (see figure 4b).

3.

Remove

all

reels

and

reel

arms

from

the

pro-

jector. Pack

the

cable loaded

reel

in the

cover

by

mounting

it on the

stud

provided

for the

purpose.

Put the

power

cord

in the

space

provided

for it

beneath

the

projector.

4.

Push

the

spring

belts

into

the

projector

case,

retract

the

tilting

mechanism

all the

way,

and

re-

place

the

cover

on the

projector.

Public

Address

and

Record

Playing

When

it is

desired

to use

either

a

microphone

or

a

phonograph pickup,

a

shielded

cable

and a

shield-

ed

standard telephone

plug

will

be

required

for

SCREEN

t

INCH

LENS

2

INCH

LENS

3

INCH

LENS

M-147179

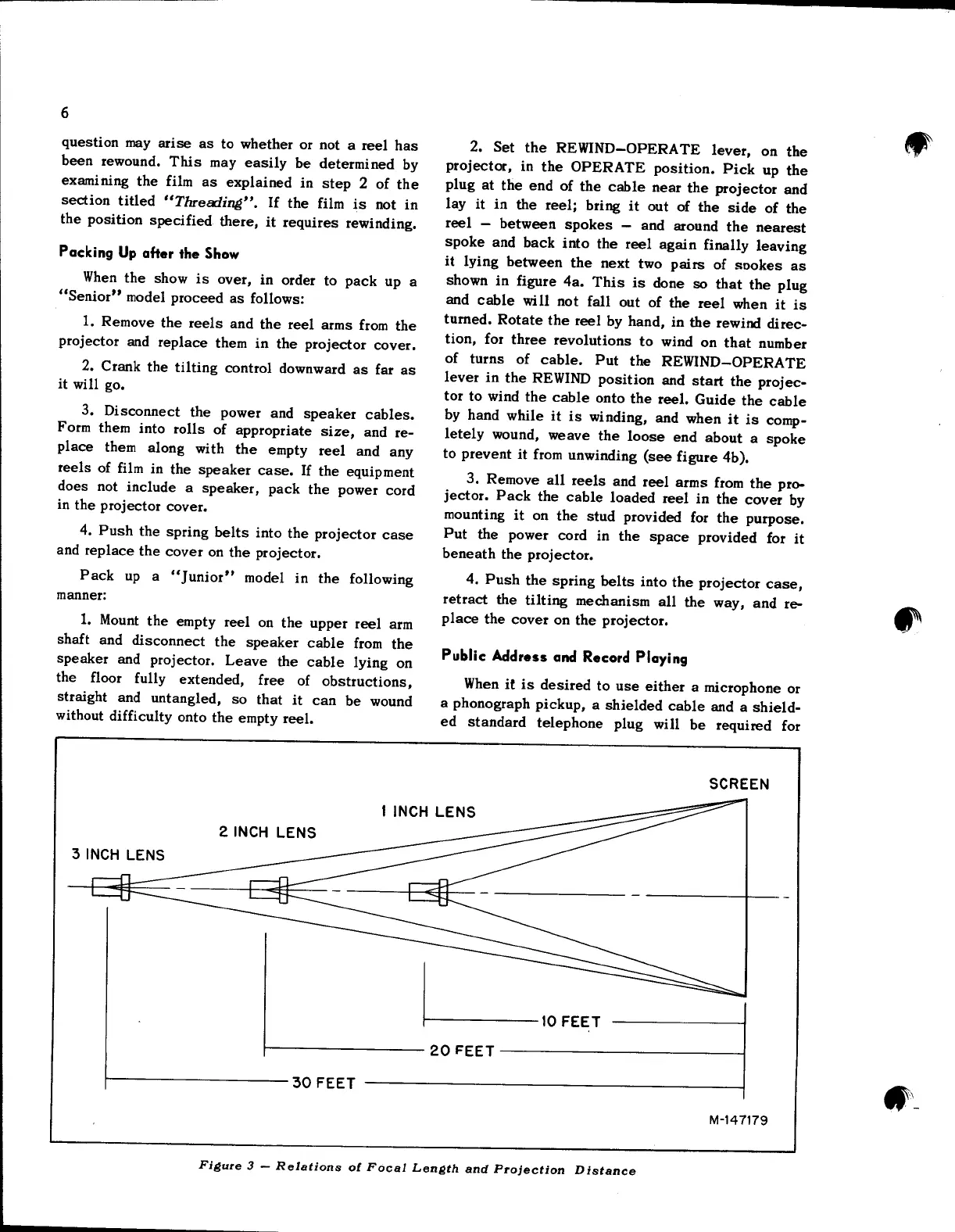

Figure

3 —

Relations

of

Focal

Length

and

Projection

Distance
