RCA CC6392

First-Time Operation
11

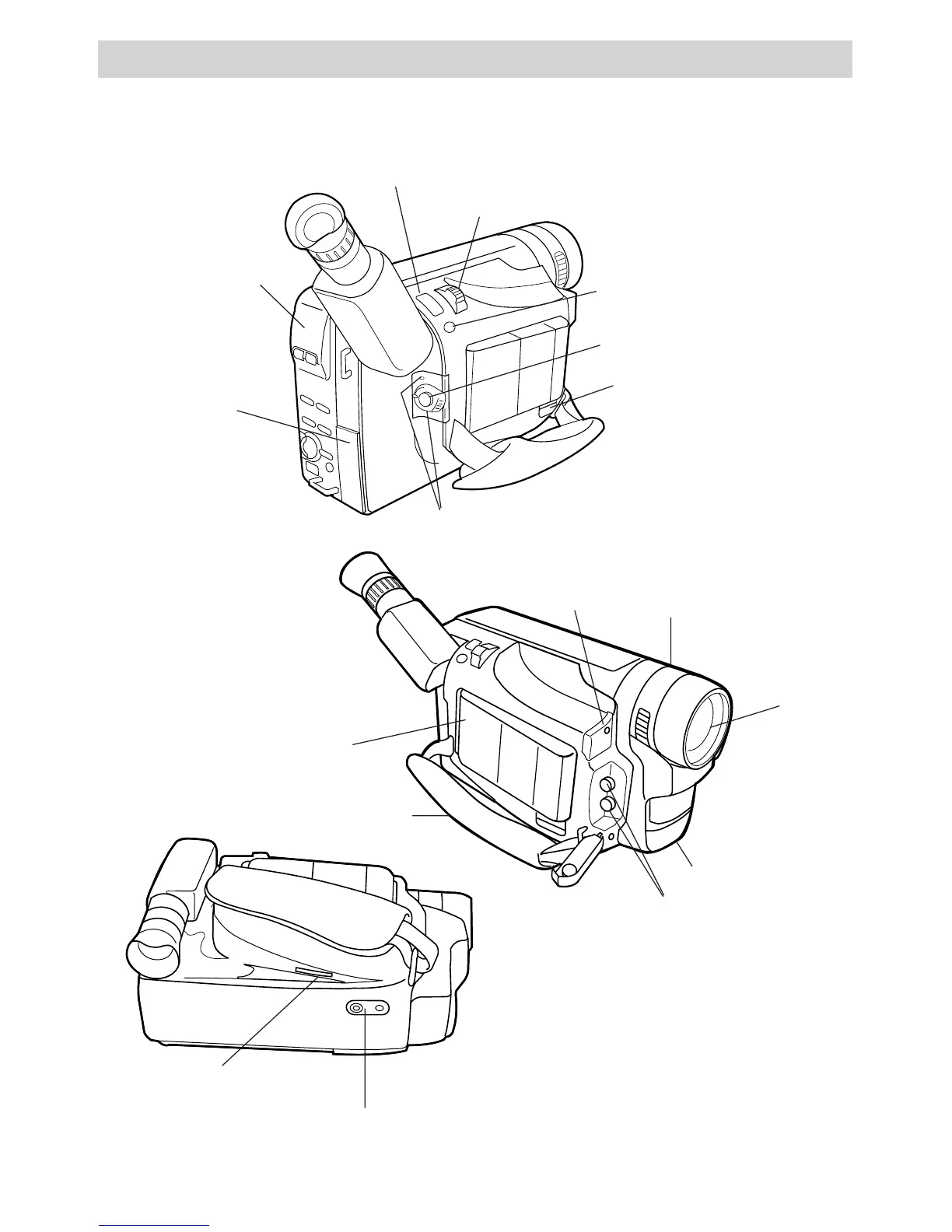

14. Review camcorder’s operating controls. (continued)
Microphone
Lens
Tally
Light
Handstrap
Attach Adapter/Charger’s
DC Cord (DC In Jack
Located Under Battery) or
Rechargeable Battery Here
Thumb Trigger
A (Audio) and V (Video) Jacks
(Behind Small Cover)
LENS
COVER
Control
5SEC. REC
Button
Zoom Lever
STEADY PIX
Button
POWER Switch
and Indicator
Service Port
(Located Under
Cover)
This connector is
for use by
qualified service
personnel only.
BATTERY
RELEASE
Lever
Clock Cell Battery
Compartment
Threaded Tripod
Mount Hole
Speaker for
Playback
