Graphics contained within this publication are for representation only.
14
Chapter 1: Connections and Setup
The back of your
satellite receiver
might look
different than
the one pictured
here.
SATELLITE
DISH
ANTENNA
DVD/VCR
TV
The back of your TV might look different
than the one pictured here.
Details about the different kinds of cables used to connect your DVD recorder are on page 5.

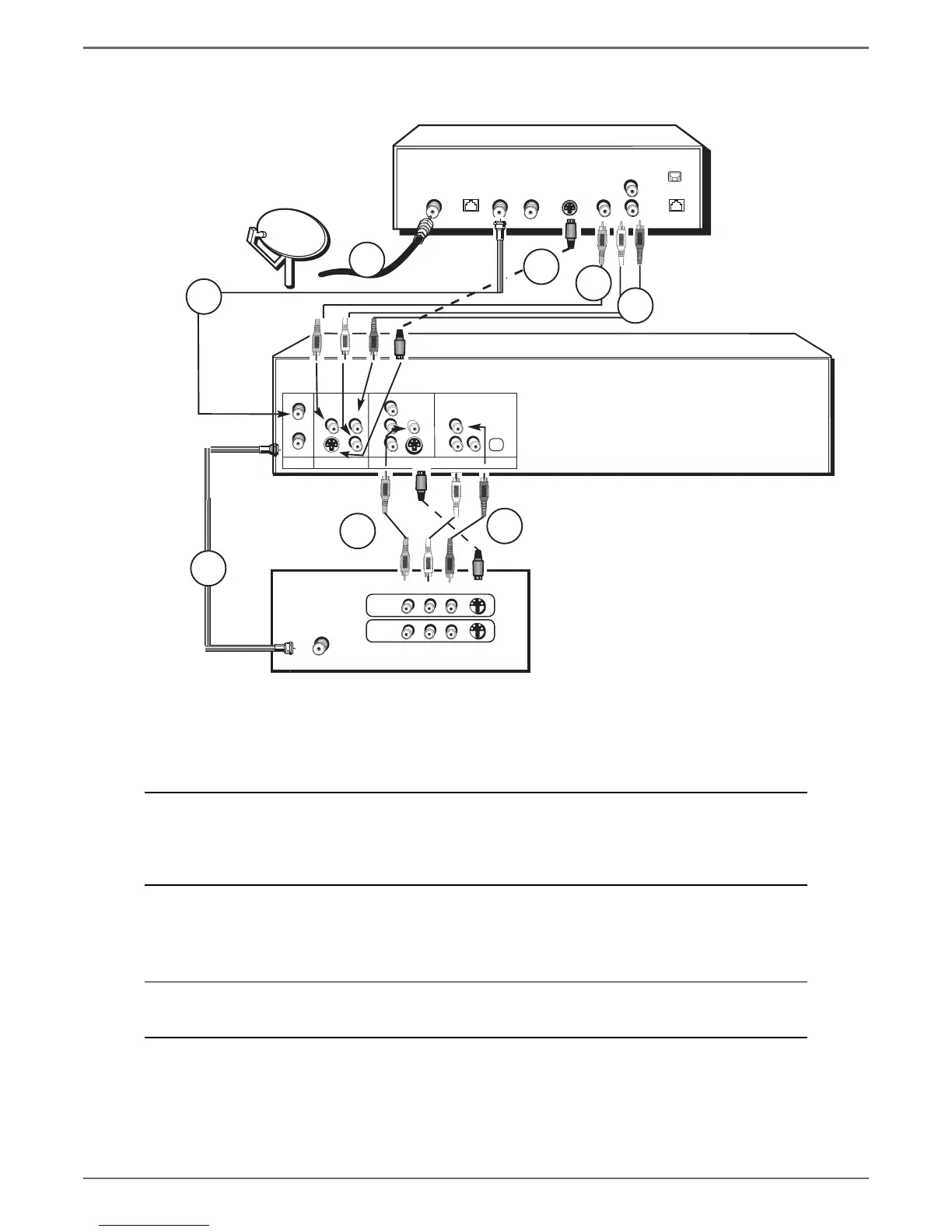

DVD/VCR + TV+ Satellite Receiver
To watch TV (satellite
programming) with the DVD
Recorder turned on:
Tune the TV to its Input 1 channel or Vid 1 channel.
Tune the DVD recorder to the INPUT 1 channel (press the SOURCE button on the remote).
Tune the satellite receiver to the channel you want to watch.
Tune the TV to its Input 1 channel or Vid 1 channel.
To watch TV (satellite
programming) with the
DVD recorder turned off:
Tune the TV to its CABLE/ANTENNA INPUT channel (usually channel 2, 3, or 4).
Tune the satellite receiver to the channel you want to watch.
To play a disc
Important
You can’t watch one satellite
program and record another
satellite program at the same time.
If you need help fi nding your TV’s various Video Input Channels, go to page 22.
RF INPUT OUTPUT
VIDEO
AUDIO
VIDEO AUDIO
OUT S
S
IN
AUDIO OUT
L
R
VIDE O
PHONE JACK
DIGITAL OUT
LOW SPEED
DA TA OUT TO TV IN FROM ANT SA TELLITE IN
S-VIDE O
S-VIDE O
VIDEO L
R
INPUT1
INPUT2
S-VIDEO
CABLE/ANTENNA
2a
2d
2c
2b
3c
3b
3a
1
