RCA E13208 User Manual

14
Connecting Your TV

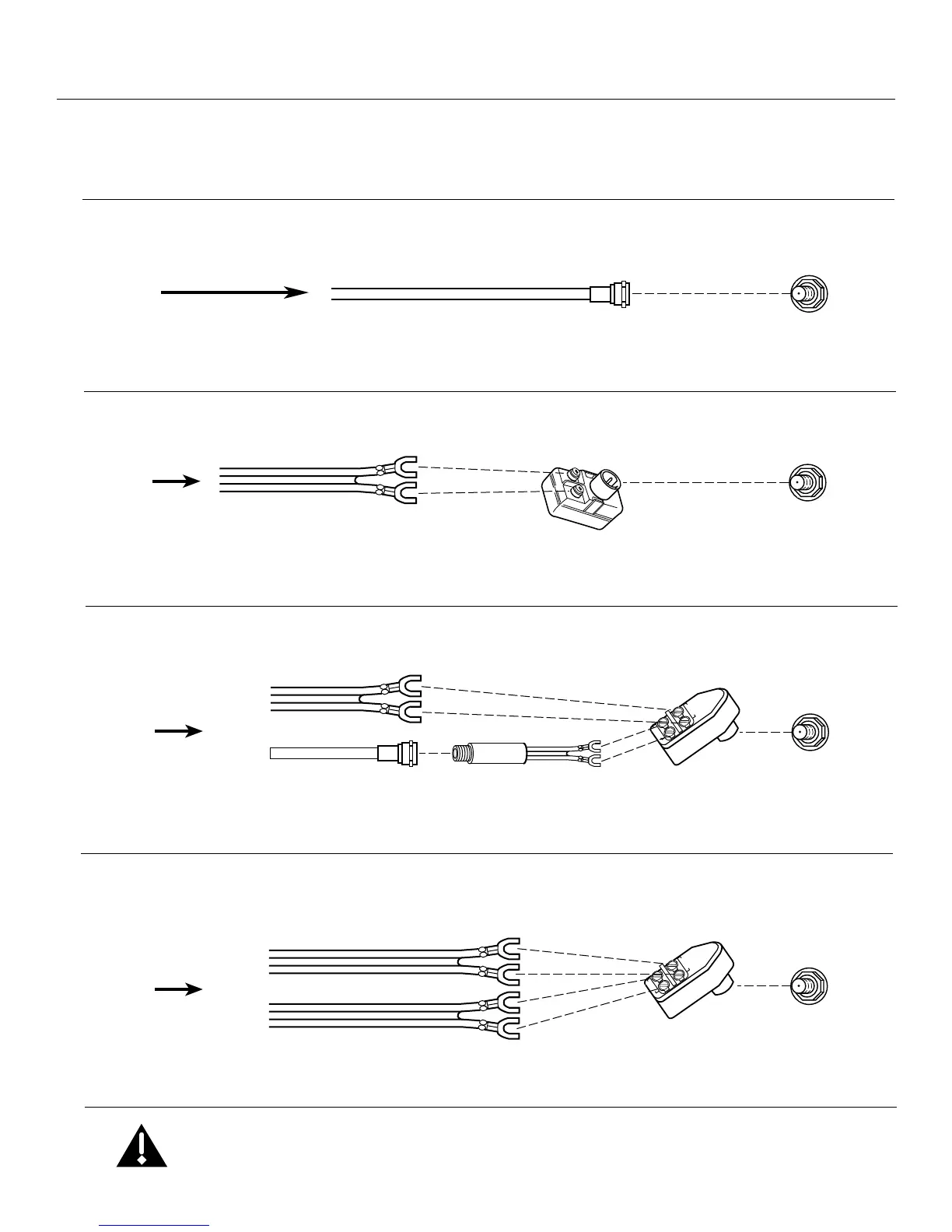

Follow one of the steps below to connect an indoor or outdoor antenna to your TV (not a cable-TV system).
Home Antenna Connections
A
If the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Push on
Push on
Note: Be sure to connect the UHF antenna cable to the UHF screws on the Antenna
Mixer and the VHF antenna cable to the screws marked VHF.
–OR–
ANTENNA
VHF or UHF Only
or
VHF/UHF Combination
–OR–
B
ANTENNA
Adapter
(supplied)
VHF or UHF Only
or
VHF/UHF Combination
Back
of
TV
–OR–
C
UHF
VHF
ANTENNA
Transformer*
(such as #AH011)
Antenna Mixer*
(use only #193984)
Back
of
TV
UHF
VHF
ANTENNA
Push on
Antenna Mixer*
(use only #193984)
D
Cables
From
Home
Antenna(s)
Cables
From
Home
Antenna(s)
Cable
From
Home
Antenna
Cable
From
Home
Antenna
If the antenna cable coming from your home antenna is a 300-ohm flat twin lead that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
If the antenna cables coming from your home antenna(s) are a 75-ohm round coaxial cable that carries VHF (channels 2-13)
and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:
If the antenna wires coming from your home antenna(s) are two 300-ohm flat twin-lead cables as shown here, connect them
to your set like this:
Note: Be sure to connect the UHF antenna cable to the
UHF screws on the Antenna Mixer and the VHF antenna
cable to the screws marked VHF.
*
Optional accessory available from your dealer. Only use Antenna Mixer (Stock #193984).
UHF
and
VHF
UHF
and
VHF
Back
of
TV
Back
of
TV
