RCA F27440 User Manual

8 Chapter 1
Connections & Setup
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
LR
AUDIO
IN
LR
TV (back panel)
CABLE/
ANTENNA
G-LINK
From Cable,
Cable Box,
or Antenna
TV
VCR
2
3B
1

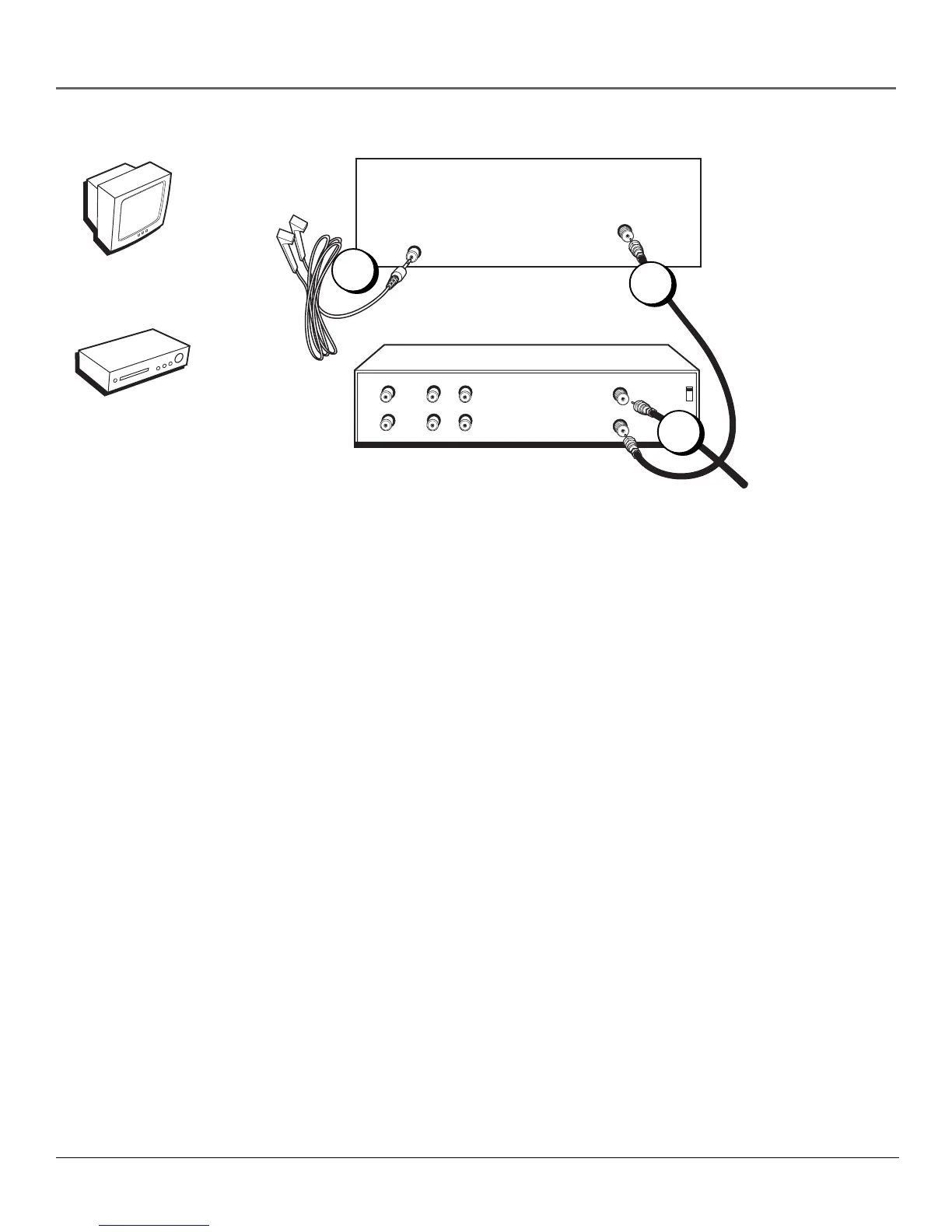

Connection: TV + VCR
1. Connect your TV to your VCR
Connect a coaxial cable to the CABLE/ANTENNA jack on your TV and to the Output Jack on your
VCR (sometimes labeled OUT TO TV).
2. Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack on your
VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT).
3. Connect the G-LINK cable to the TV
A. If you haven’t already done so, remove the Demo Pin from the G-LINK jack.
B. Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place the wands of the G-
LINK cable to work with your VCR (instructions are on p. 13).
Go to page 13

RCA F27440 Specifications


screen size	27 inches
aspect ratio	4x3
screen type	Optimum Contrast

Sound

sound type	Brdcst Str w/dbx³ Noise Reduction
tone control	Bass & Treble + Balance
front speakers	2

Convenience

auto channel search	Yes
channel labeling	Yes
closed captioning	Yes

Rear Connectors

G-LINK connector	Yes
F terminal	1

Specifications

finish	Black
product size	25 1/2 x 23 x 19 inches
approximate shipping weight	77 lbs
