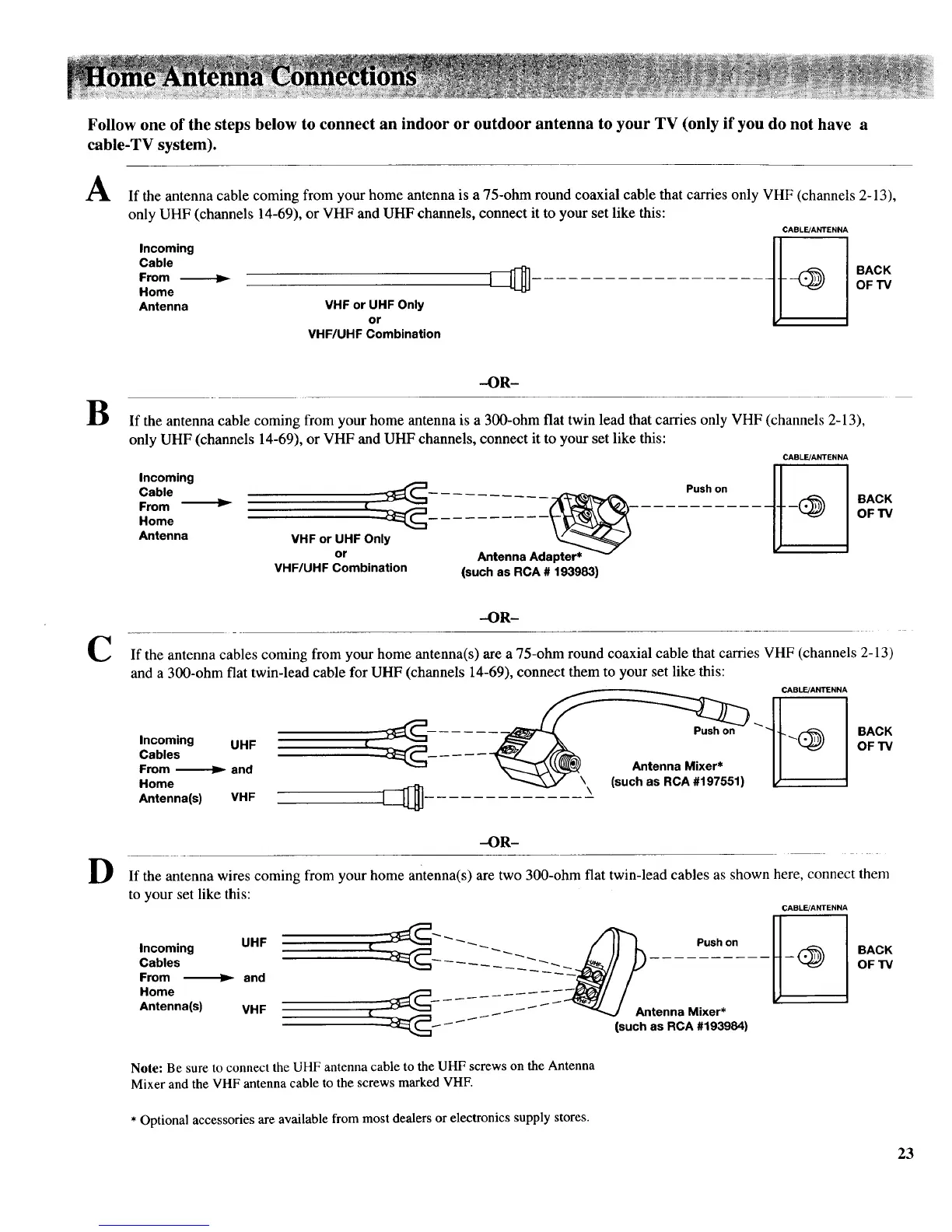

RCA F27700 - Home Antenna Connections

Follow one of the steps below to connect an indoor or outdoor antenna to your TV (only if you do not have a
cable-TV system).
A
If the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
CABLFUANTENNA
Incoming I_
Cable
From _
Home
Antenna VHF or UHF Only
or
VHF/UHF Combination
BACK
OF TV
B
-OR-
If the antenna cable coming from your home antenna is a 300-ohm flat twin lead that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
CABLE/ANTENNA
Incoming
Cable
From _
Home _-
Antenna VHF or UHF Only
or
VHF/UHF Combination
Antenna Adapter*
(such as RCA # 193983)
Push on
BACK
OFTV
C
-OR-
If the antenna cables coming from your home antenna(s) are a 75-ohm round coaxial cable that carries VHF (channels 2-13)
and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:
Incoming UHF t _
Cables _ ......
From _-1_ and
Home
Antenna(s) VHF
CABLE/ANTENNA
_-_._k._ Antenna Mixer* JJ
"_ \ (such as RCA0197551) I_
\
BACK
OF TV
-OR-
D If the antenna wires coming from your home antenna(s) are two 300-ohm flat twin-lead cables as shown here, connect them
to your set like this:
CABLE/ANTENNA
Incoming UHF t "_J__ ........_ _ _ _--_//__ Push on t
Cables _ ..... _'_----_ .... (_
FromHome_41_ and _____//////An
Antenna(s) VHF t" _ _ tenna Mixer*
_ (such as RCA #193984)
BACK
OF TV
Note: Be sure to connect the UHF antenna cable to the UHF screws on the Antenna
Mixer and the VHF antenna cable to the screws marked VHF.
*Optional accessories are available from most dealers or electronics supply stores.
23
