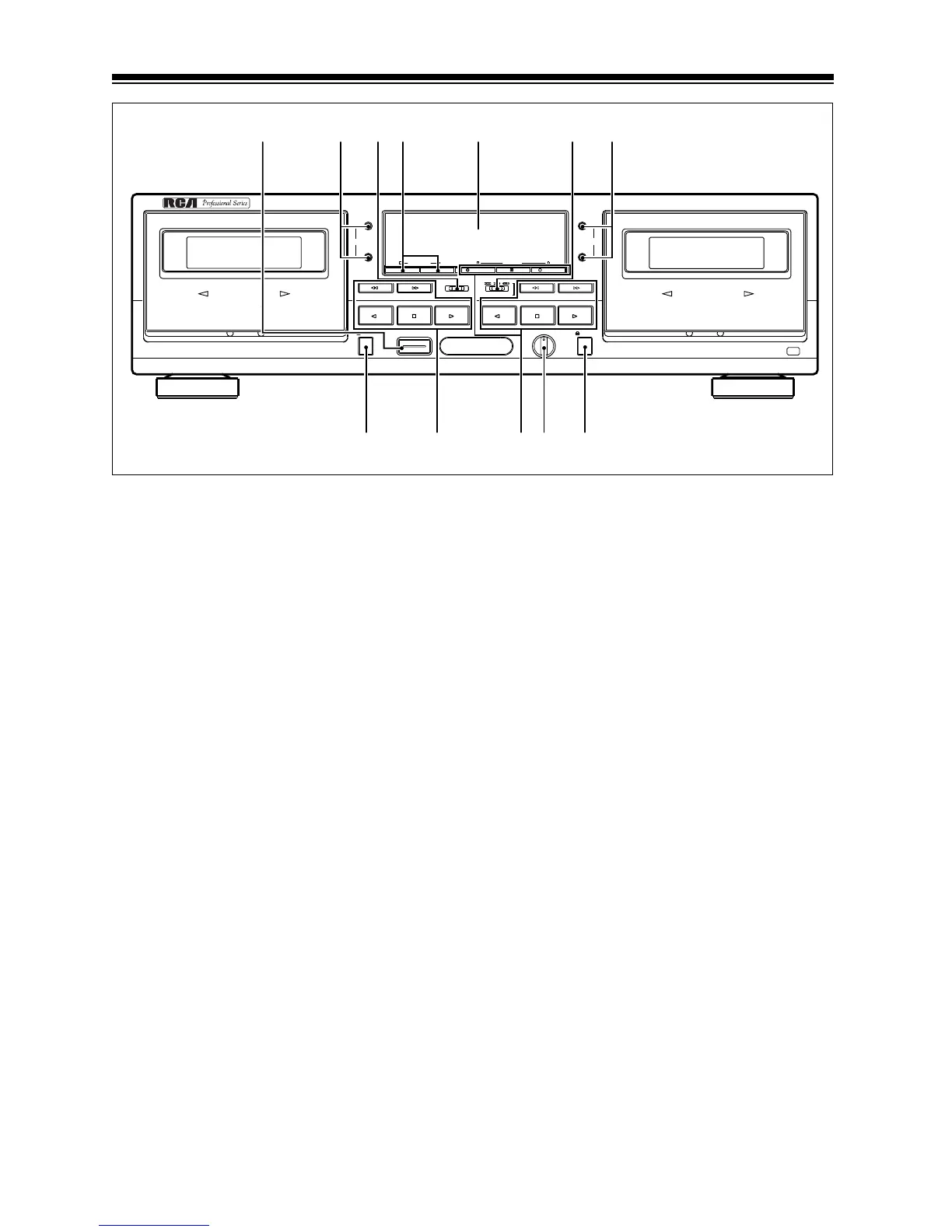

FRONT PANEL FACILITIES
AUTO REVERSE
AUTO TAPE SELECTOR
PLAYBACK
AUTO REVERSE
AUTO TAPE SELECTOR
RECORD • PLAYBACK
SCT-570 FULL LOGIC STEREO CASSETTE DECK
NORMAL
STOP STOP
HIGH REC MUTE RECORD
POWER
EJECT EJECT
— OFF _ ON
HIGH SPEED DUBBING SYSTEM
AUTO MUSIC SEARCH
MIN MAX
REC LEVEL
REV MODE
RELAY/SKIP
COPY I II
3
DECK IIDECK I
DOLBY NR
OFFBC
DECK II
AMS
AMS
+
–
+
–
DECK I
DECK II
$
OSR
45
6
321
7
90=-8
0 DECK II operation buttons
2 : Reverse playback
3 : Forward playback
1 : Fast reverse
7 : Stop
¡ : Fast forward
•
REC MUTE : Recording mute
8 : Pause
÷
RECORD : Recording
- Recording level control (REC LEVEL)
= DECK II EJECT button (0)
If the tape is moving (recording, playback,
tape winding, etc.), press the stop (7)
button before pressing this button.
NOTE: If the power is turned off while the
tape is moving, the cassette door may
remain locked. In this case, turn the power
on before pressing the
EJECT (0) button.
1 POWER switch
2 DECK I AMS(auto music search) +,– buttons
3 DOLBY NR switch (B/OFF/C)
4 Synchro copy buttons (COPY I 3 II)
NORMAL: Normal speed copy
HIGH : Double speed copy
5 Function display
6 Reverse mode switch (REV MODE RELAY/
SKIP
)
7 DECK II AMS(auto music search) +,– buttons
8 DECK I EJECT button (0)
If the tape is moving (playback, tape
winding, etc.), press the
stop (7) button
before pressing this button.
NOTE: If the power is turned off while the
tape is moving, the cassette door may
remain locked. In this case, turn the power
on before pressing the
EJECT (0) button.
9 Deck I operation buttons
2 : Reverse playback
3 : Forward playback
1 : Fast reverse
7 : Stop
¡ : Fast forward
