Setup and Connections
6

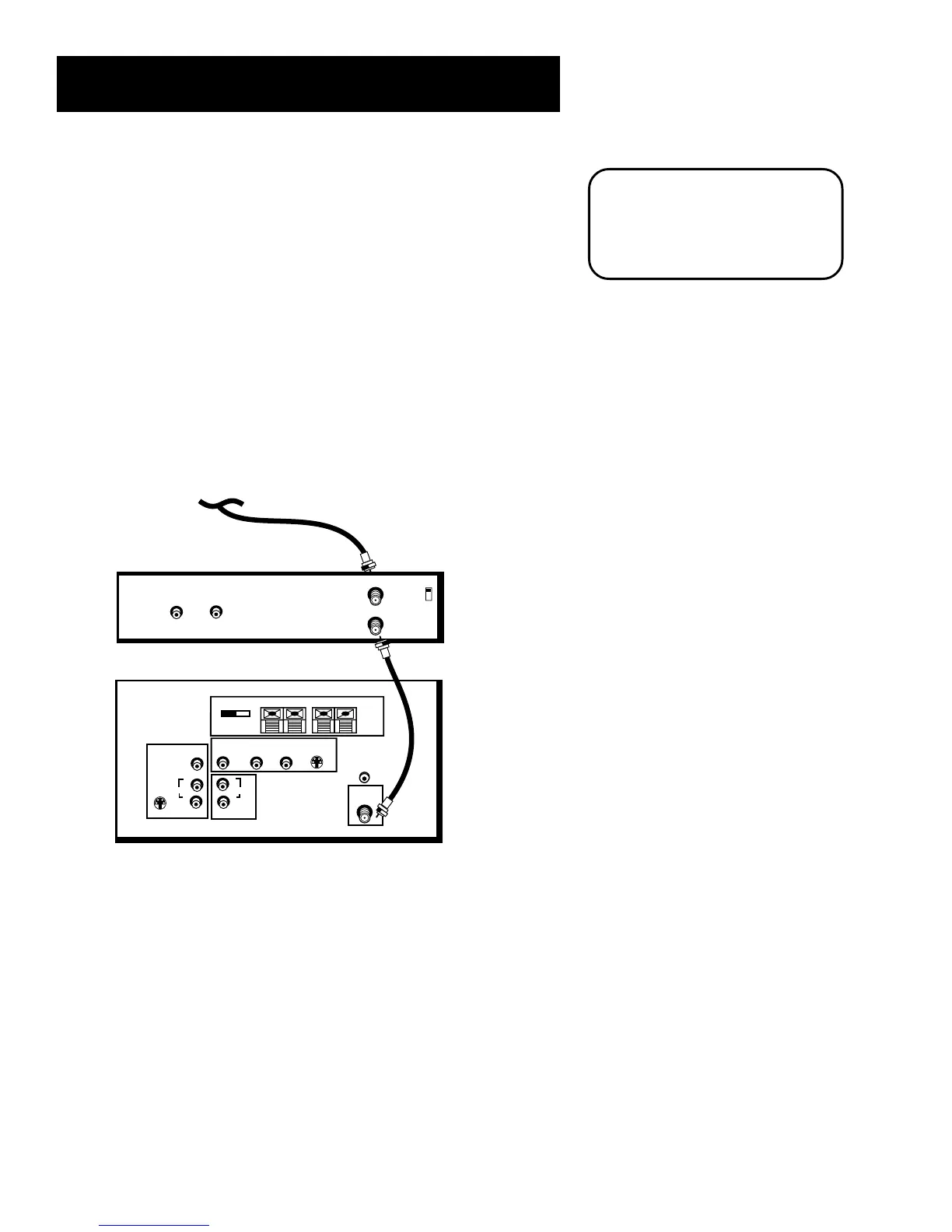

The Basic Connection (pip not available)
The basic connection below (TV and VCR) is used to illustrate a single
component connection with your TV. For better sound and picture
quality and multiple component connection information refer to,
Advanced Connections.
Cables
You will use the following cable to make your connection:
Coaxial Cables: These cables carry both the audio and video signal to
the TV from an antenna, cable, or cable box. In this connection, a second
Coaxial Cable carries the signal through the VCR to the TV.
VCR 1
TV
INPUT 1
VIDEO
R
S-VIDEO
R
INPUT 2
VIDEO
CABLE/
ANTENNA
INPUT
S-VIDEO
R—AUDIO—L
VCR
CONTROL
AUDIO OUTPUT
AUDIO
L
L
AUDIO
+
RIGHT
-
+
LEFT
-
SPEAKER
SELECTION
EXTERNAL INTERNAL
SPEAKERS
AUDIO
VIDEO
OUT
IN FROM ANT
OUT TO TV
CH3
CH4
CABLE, CABLE BOX, OR ANTENNA
Once you have completed this connection go to “Step 3:
Connecting the IR Controller” on page 9.
How to View the VCR
To watch the VCR in this connection tune TV to
Channel 3 or 4.
Later, in the Interactive Setup section you will
program the TV to automatically tune to Channel 3
or 4 when you turn on the VCR.
Note:
This connection does not
allow PIP to work.
