Setup and Connections
5
Basic PIP Connection
Cables
You will use the following cable to make your
connection:
Coaxial Cables: Carries the signal from the
antenna or cable directly to the television or
through a cable box, as needed by your cable
system.
Audio/Video Cables: Carries sound and video
from the component to the TV.
S-Video Cable: Carries video from an S-Video
capable component which provides best
picture quality.

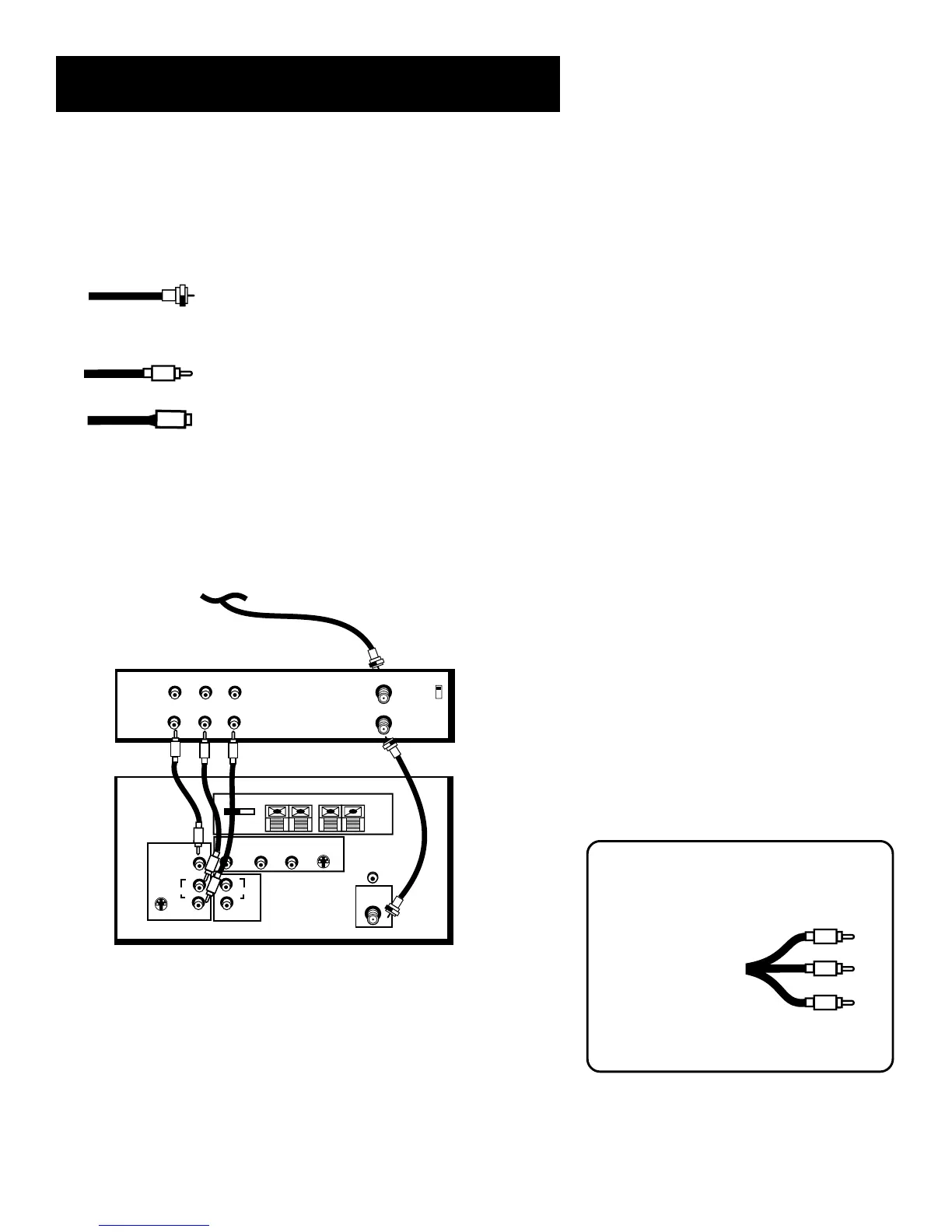

TV and Stereo VCR
VCR
TV
VIDEO
OUT
IN FROM ANT
OUT TO TV
CH3
CH4
INPUT 1
VIDEO
R
S-VIDEO
R
INPUT 2
VIDEO
CABLE/
ANTENNA
INPUT
S-VIDEO
R—AUDIO—L
VCR
CONTROL
AUDIO OUTPUT
AUDIO
L
L
AUDIO
+
RIGHT
-
+
LEFT
-
SPEAKER
SELECTION
EXTERNAL INTERNAL
SPEAKERS
R
AUDIO
L
IN
CABLE, CABLE BOX, OR ANTENNA
Once you have completed this connection go to “Step 3:
Connecting the IR Controller” on page 9.
How to View Your VCR
To watch the VCR in this connection, press TV to put the
remote control into TV mode, then press WHO•INPUT to
scroll through the video input channels until you tune to
VID1 input.
In the Interactive Setup section you can program the TV to
automatically tune to the VID1 input channel when you
turn on the VCR.
Most Audio/Video cables are combined
into one cable with three heads on each
end.
We show individual cables
in these sample
connections. Either
may be used, but
you must be sure to
connect Video to
Video, Right to Right
and Left to Left.
Video (yellow)
Right Audio (red)
Left Audio (white)
To Next Page
