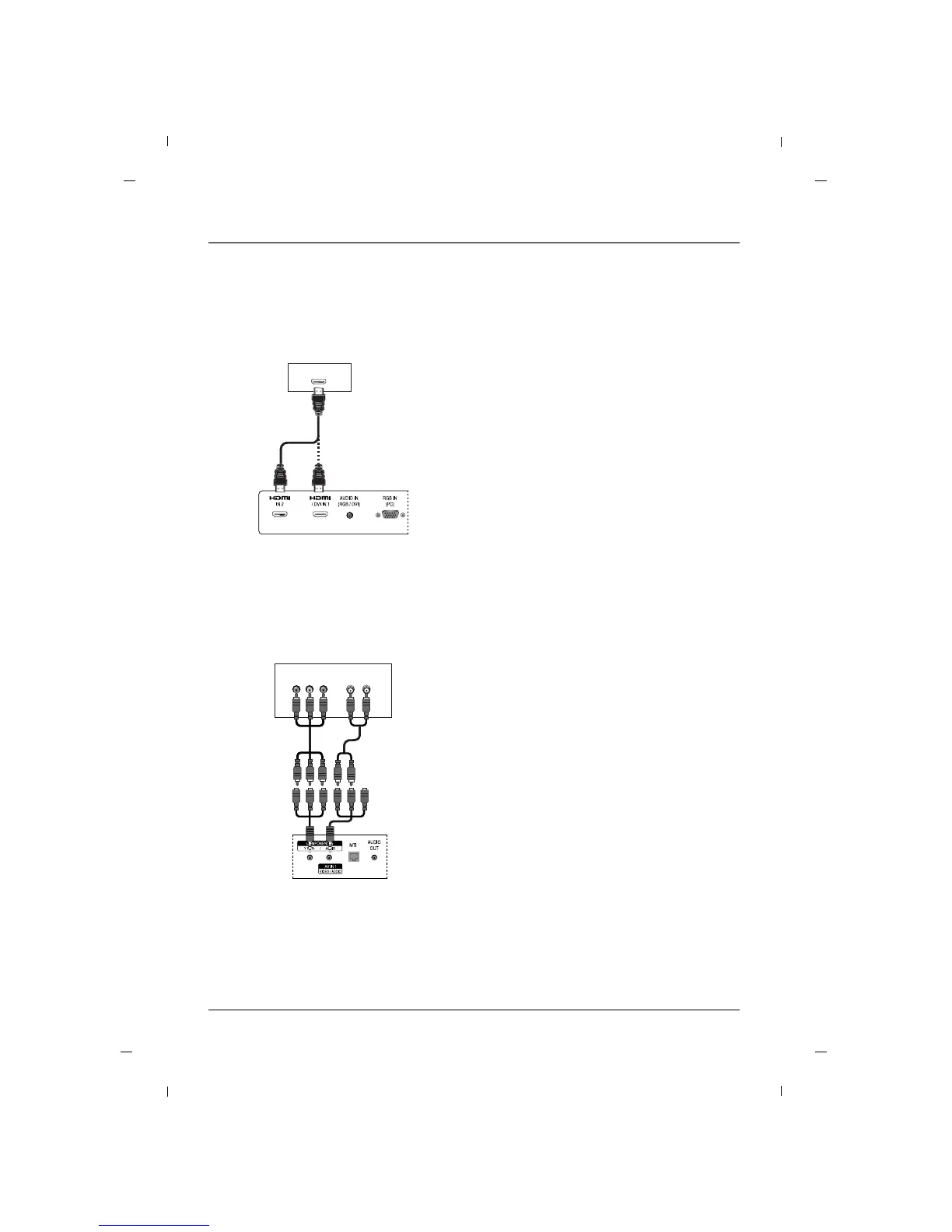

Chapter 1: Connections and Setup
AA When connecting with a Component cable
(L) AUDIO (R)
Y
Pb Pr
1. Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT VIDEO(Y, Pb, Pr) port on
the set.
2. Connect the audio outputs of the DVD to the
COMPONENT AUDIO port on the set.
3. Turn on the DVD player, insert a DVD.
4. Select COMPONENT source using the INPUT but-
ton on the remote control.
5. Refer to the DVD player's manual for operating
instructions.
DVD
Rear panel of the set
DVD Connection
AA When connecting with a HDMI cable
HDMI-DVD OUTPUT
1. Connect the HDMI output of the DVD to the
HDMI/DVI IN1 or HDMI IN2 port on the set.
2. Select HDMI1 or HDMI2 input source using the
INPUT button on the remote control.
3. Refer to the DVD player's manual for operating
instructions.
DVD
Rear panel of the set
