RCA J22HE840

23Chapter 1
Chapter 1: Connections and Setup

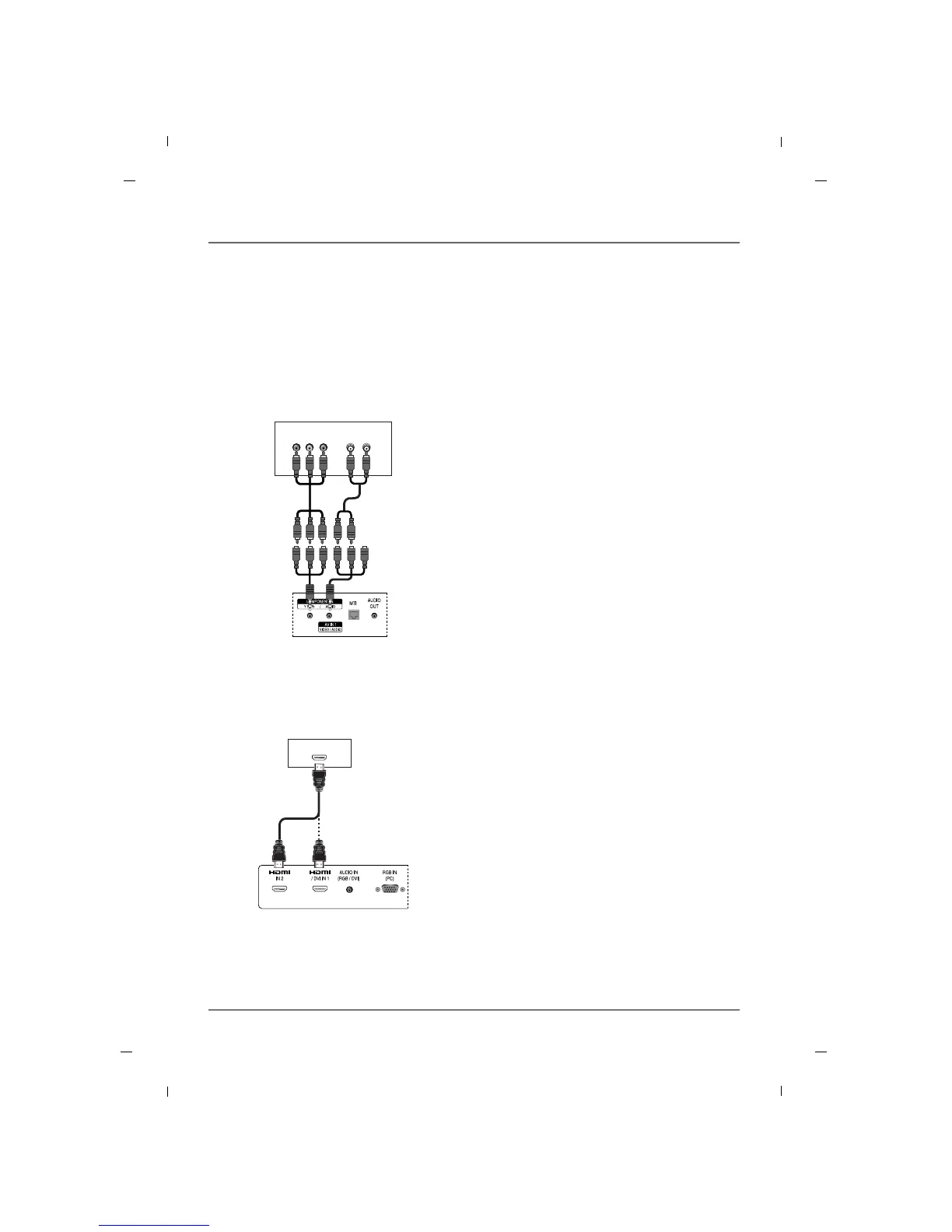

AA When connecting with a Component cable
(L) AUDIO (R)
Y
Pb Pr
1. Connect the video outputs (Y, PB, PR) of the digi-
tal set-top box to the COMPONENT VIDEO(Y,
Pb, Pr) port on the set.
2. Connect the audio outputs of the digital set-top
box to the COMPONENT AUDIO port on the set.
3. Turn on the digital set-top box.
4. Select COMPONENT source using the INPUT but-
ton on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
Digital Set-top Box
Rear panel of the set
AA When connecting with a HDMI cable
HDMI-DTV OUTPUT
1. Connect the HDMI output of the digital set-top
box to the HDMI/DVI IN1 or HDMI IN2 port on
the set.
2. Turn on the digital set-top box.
3. Select HDMI1 or HDMI2 input source using the
INPUT button on the remote control.
4. Refer to the digital set-top box manual for oper-
ating instructions.
Digital Set-top Box
Rear panel of the set
