22 Chapter 1
Chapter 1: Connections and Setup
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box.
However, if you do receive Digital signals from a digital set-top box or other digital external device, refer
to the figure as shown below.

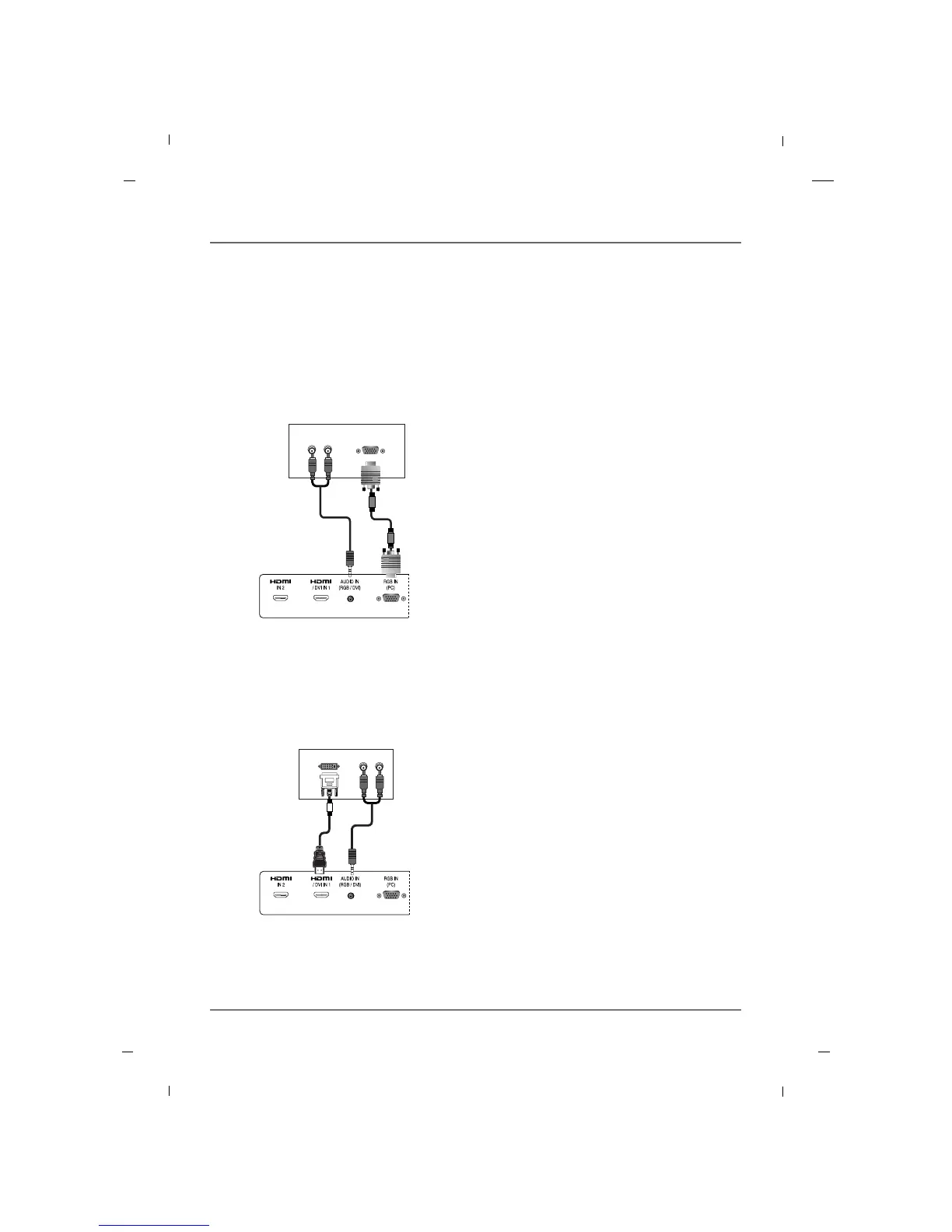

HDSTB Connection
AA When connecting with a D-Sub 15 pin cable
(R) AUDIO (L) RGB-DTV OUTPUT
1. Connect the RGB output of the digital set-top
box to the RGB IN (PC) port on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (RGB/DVI) port on the set.
3. Turn on the digital set-top box.
4. Select PC input source using the INPUT button on
the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
Digital Set-top Box
Rear panel of the set
AA When connecting with a HDMI to DVI cable
DVI-DTV OUTPUT
(R) AUDIO (L)
1. Connect the DVI output of the digital set-top box
to the HDMI/DVI IN1 port on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (RGB/DVI) port on the set.
3. Turn on the digital set-top box.
4. Select HDMI1 input source using the INPUT but-
ton on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
Digital Set-top Box
Rear panel of the set
