11
Connections and Setup Chapter 1

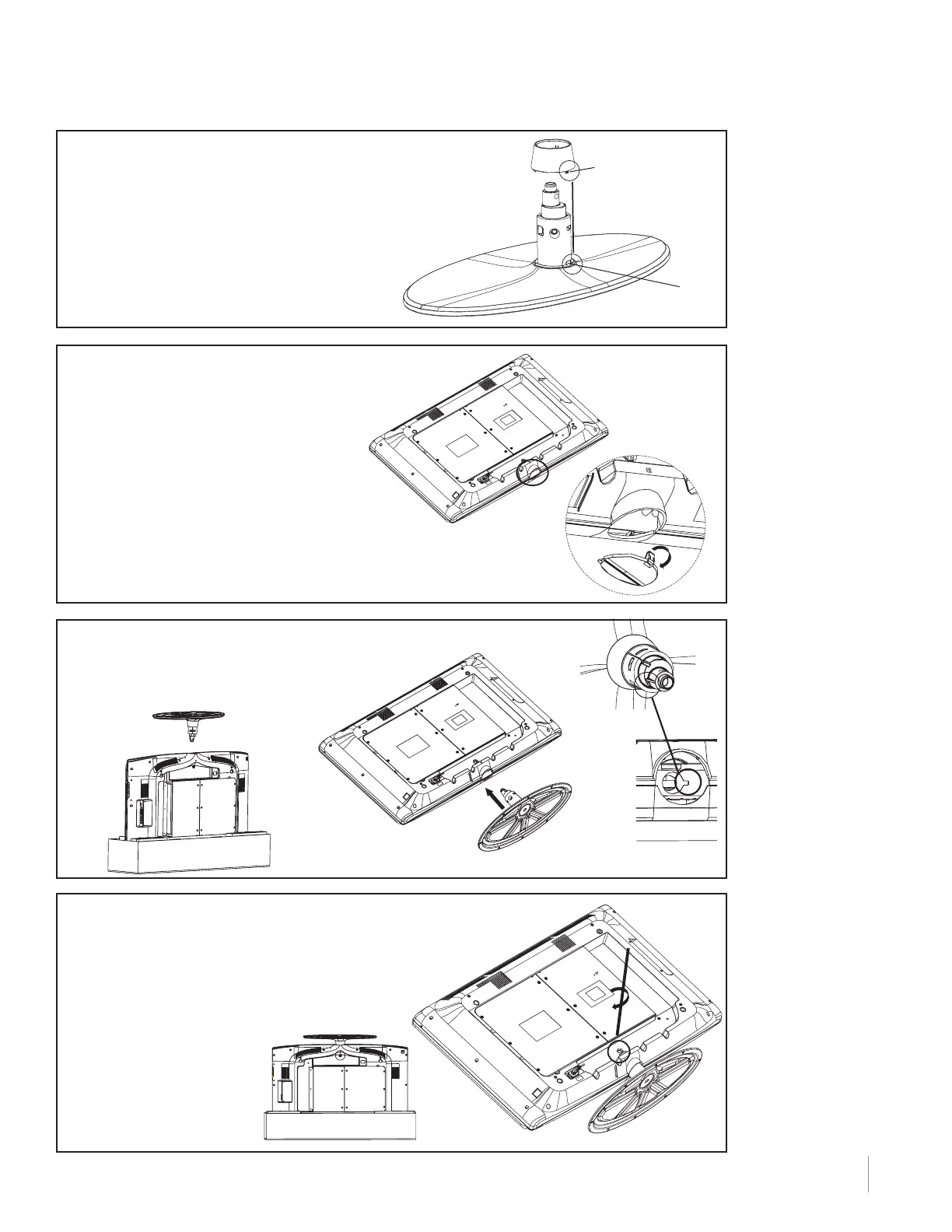

Step 3
1. On the hinge cover, locate the triple-pronged tab.
2. Place the hinge cover over the hinge, aligning the triple
pronged tab with the slot on the back (narrowest) part of the stand.
3. Push and fasten the hinge cover to the stand base.
Be sure all three tabs snap firmly in place.
Step 4
Remove the stand cap from the TV cabinet by pushing on
the small tab and pulling out the cap.
Step 5
Attach the fully assembled table stand to the TV
cabinet by inserting the hinge into the cabinet and
aligning the hinge guide to the slot opening.
Step 6
When the hinge is in place, the hinge threads are visible
through the small hole on the back of the TV. Secure the
table stand to the TV cabinet by inserting the M8 screw
into this hole and tightening with a Philips head
screwdriver. The stand is now securely in place
and the TV is ready for placement.
Fastener
Slot
To Next Page
