Connections and Setup Chapter 1

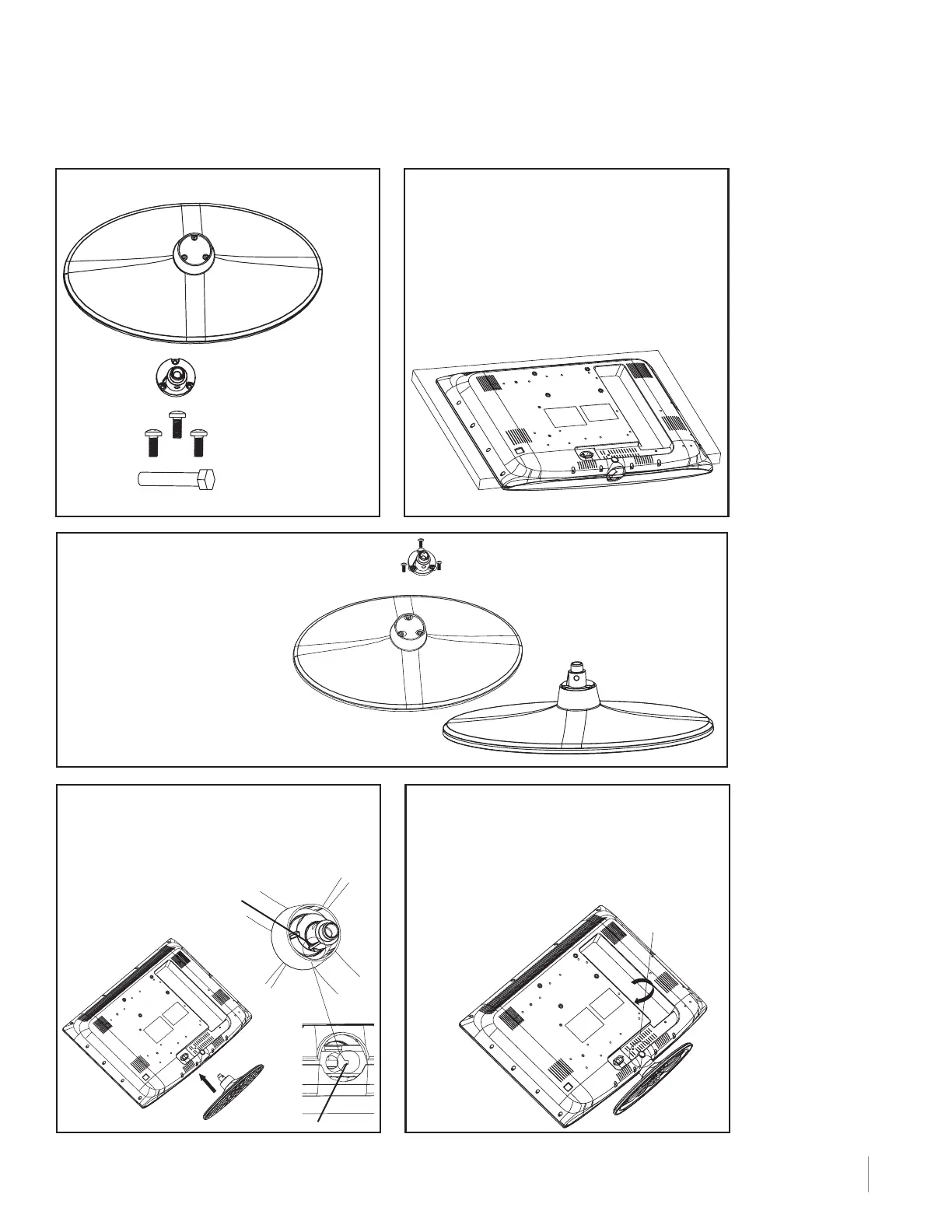

Fixed Table Stand Assembly for Model L32HD31
Step 4
1. When the post support is in place, the
support threads are visible through the
small hole in the back of the TV.
2. Secure the table stand to the TV cabinet by
inserting the M8 screw into this hole and
tightening with
a screwdriver.
Parts List
1 Stand Table
3 Size M4 ST-Screws
1 Post Support
1 Size M8 Screw
Step 1
Remove the TV bag and place it on a large,
flat surface such as a table or countertop.
Remove the TV from the carton and place it
face down on the TV bag. Be sure that the TV
is face down to avoid scratching the screen.
Follow the directions on the following pages
for assembling the stand and attaching it to
the TV.
Step 2
1. Remove the base and the
assembly parts from the box.
2. Place the post support on
the stand base, aligning the
screw holes.
3. Attach the post support to
the stand base by inserting
the three M4 ST-screws from
the top and tightening with a
screwdriver.
Step 3
Attach the table stand to the TV cabinet by
inserting the post support into the cabinet while
aligning the post support guide and the slot
opening.
Table Stand Assembly
Post Support Guide
Slot Opening
To Next Page
