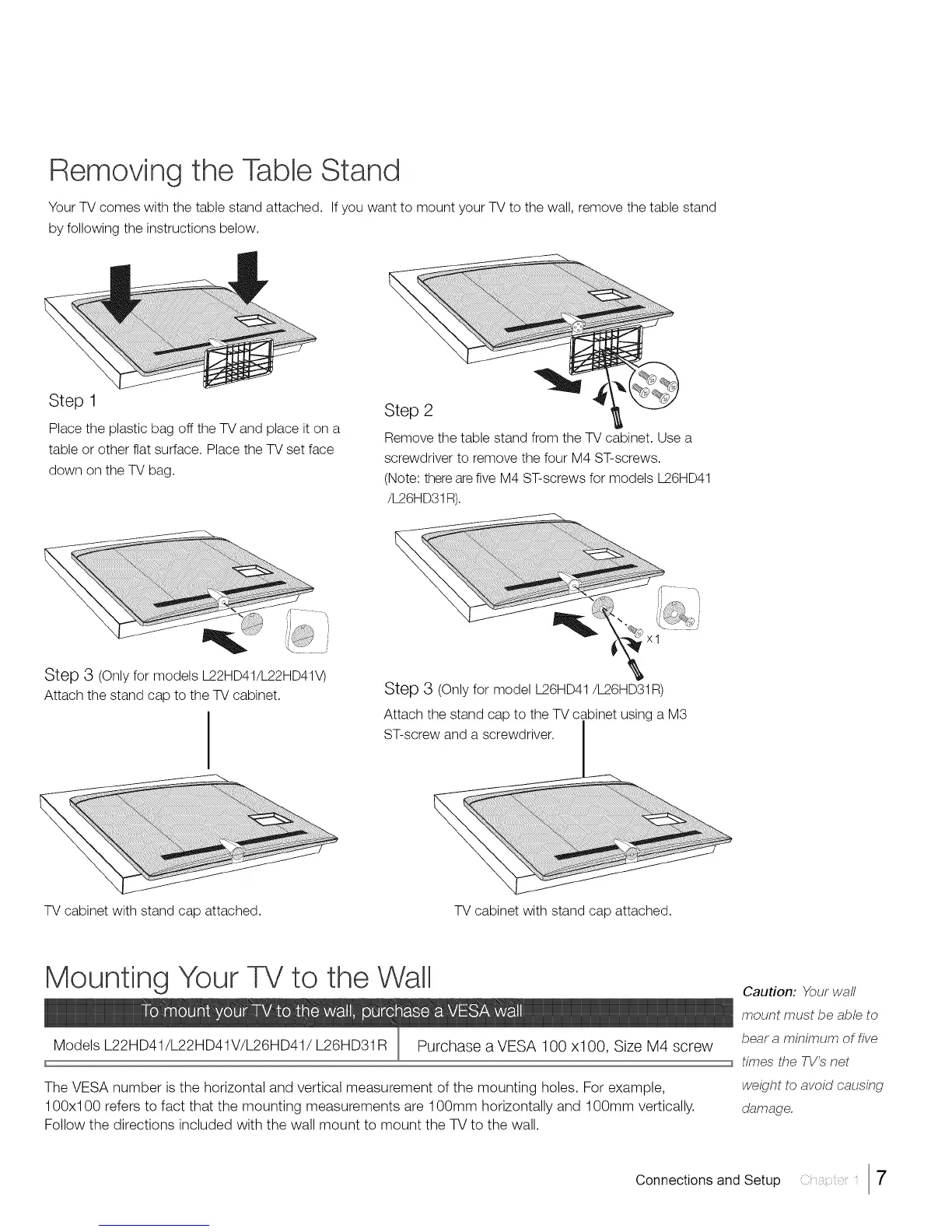

Removing the Table Stand
Your TV comes with the table stand attached. If you want to mount your TV to the wall, remove the table stand
by following the instructions below.
Step 1
Place the plastic bag off the TV and place it on a
table or other flat surface. Place the TV set face
down on the TV bag.
Step 2
Remove the table stand from the TV cabinet. Use a
screwdriver to remove the four M4 ST-screws.
(Note: there arefive M4 ST-screws for models L26HD41
/L26HD31R).
Step 3 (Only for models L22HD41/L22HD41V)
Attach the stand cap to the TV cabinet.
Step 3 (Only for model L26HD41/L26HD31R)
Attach the stand cap to the TV cabinet using a M3
ST-screw and a screwdriver.
TV cabinet with stand cap attached. TV cabinet with stand cap attached.
Mounting Your TV to the Wall
Models L22HD41/L22HD41V/L26HD41/L26HD31 R
Purchase a VESA 100 xl00, Size M4 screw
The VESA number is the horizontal and vertical measurement of the mounting holes. For example,
100x100 refers to fact that the mounting measurements are 100mm horizontally and 100mm vertically.
Follow the directions included with the wall mount to mount the TV to the wall.
Caution; 'Yourwall
mount must be able to
bear a minimum of five
times the TV's net
weight to avoid causing
damage.
