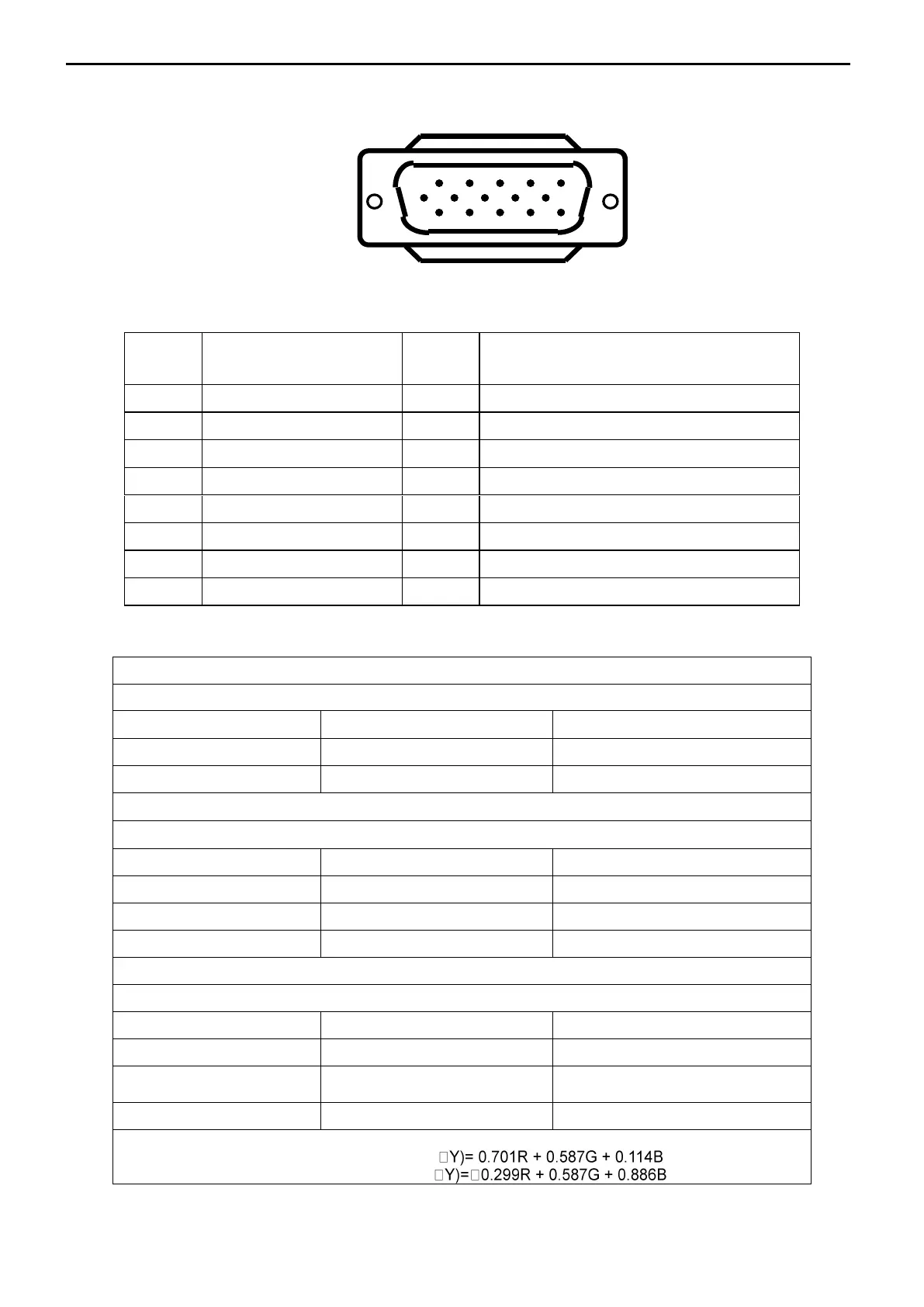

4. Input/Output Specification
4.1 RGB Signal input
15 - Pin Color Display Signal Cable
Pin No.
Description
Pin No.
Description
1
Red Video
9
Mandatory +5V Supply for PC Bypass
2
Green Video
10
Sync Ground
3
Blue Video
11
SDA(Remote Control)
4
SCL(Remote Control)
12
Bi-directional Data (SDA) for PC Bypass
5
Ground
13
H-Sync.
6
Red Video Ground
14
V-Sync.
7
Green Video Ground
15
Data Clock (SCL) for PC Bypass
8
Blue Video Ground
4.2 AV/S-Video/Component signal input
AV (Composite Video input)
Video1 / Video2
System
NTSC
Amplitude
1.0 V(p-p), negative sync.
Impedance
75 ohm terminated
S-Video (Y / C input)
S-Video1 / S-Video2
System
NTSC
Y signal amplitude
1.0Vpp (including sync)
C signal amplitude
0.286Vpp
Impedance
75 ohm terminated
Component (Y, Pb/Cb, Pr/Cr input)
Component1/Component2
System
1080i, 480p, 720p, 480i
Y signal amplitude
1.0Vpp (including sync)
Cr, (R-Y) / Cb, (B-Y)
Signal amplitude
±0.35Vpp, 75 ohm
Impedance
75 ohm terminated
Y = 0.299R + 0.587G + 0.114B
(R-
(B-
1
6
11
15
5
10
