Connecting HDMI device (Best Video Quality)
To connect a HDMI device, such as a DVD player, please connect the HDMI 1/DVl, 2, or 3 jack on the back of TV to the
output jack of device via HDMI cable.
To connect a DVl device, such as a computer via DVl port of PC and HDMI jack of TV:
1. Connect the HDMI 1/DVl, 2 or 3 jack on the back of TV to the DVl port of PC via HDMI-DVl cable.
2. Connect the SOUND/DVl jack on the back of TV to the audio output jack of computer with audio cable (3.5mm stereo jack).
To connect a DVl device, other AV device via DVl port of device and HDMI jack of TV:
1. Connect the HDMI 1/DVl, 2 or 3 jack on the back of TV to the DVl port of device via HDMI-DVl cable.
2. Connect the SOUND/DVl jack on the back of TV to the audio output jack of device with audio cable (dual-channel RCA
jacks to 3.Smm stereo jack).
Note: !. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transmitting uncompressed digital
data. It carries the audio and video signal via the same cable and has the best display quality.
2. HDMI-DVI cable transfers only video signal from DVI port of DVI device to HDMI jack of TV. For audio signal, please
connect audio output to SOUND/DVI jack on TV back panel.

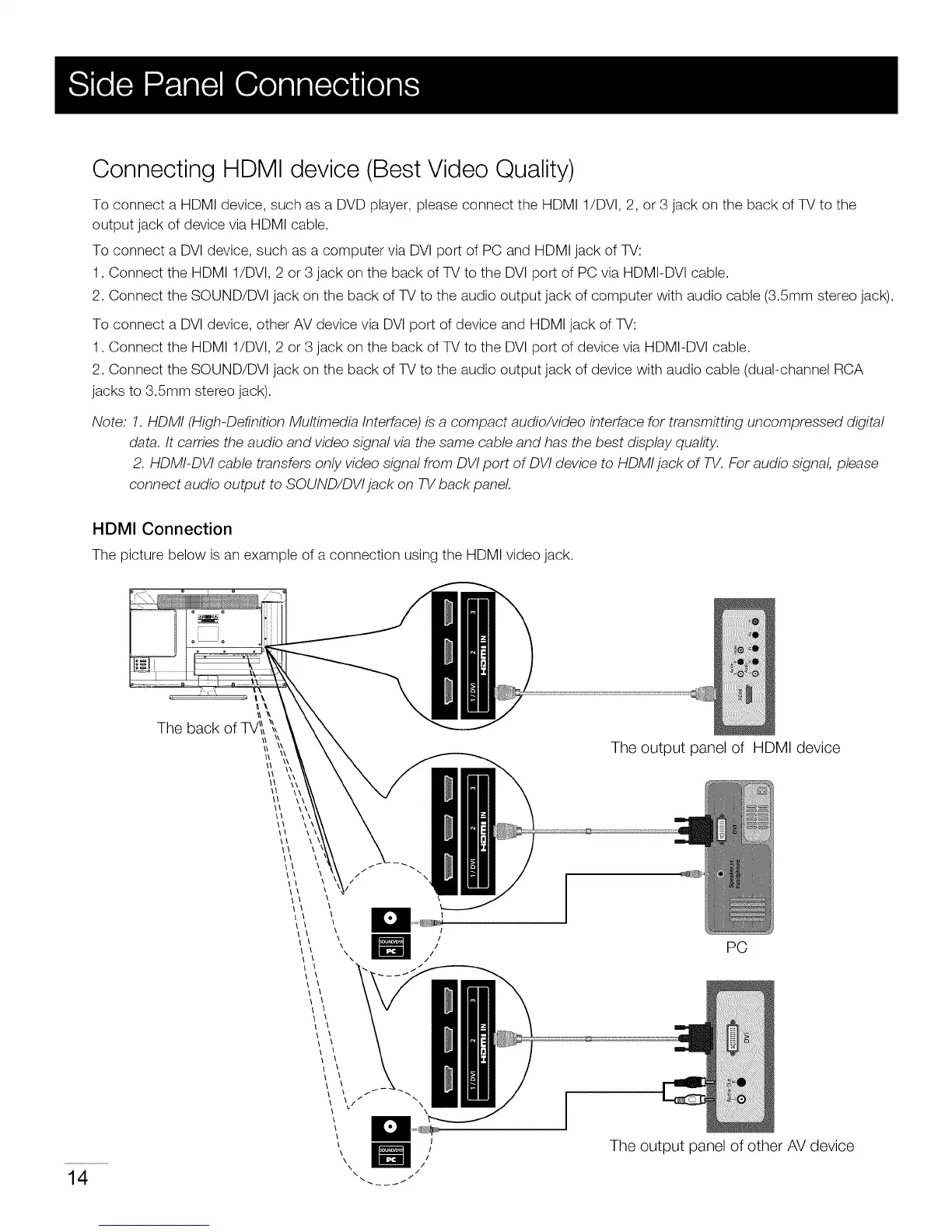

HDMI Connection
The picture below is an example of a connection using the HDMI video jack.
The back of TV!_\
\\ \i
\\
\\
\\
\\
I\
\\
\\
\\
\\
\\
\\
\\ \
\\ \
\ \\
\ //
\ \ \\
\
\
\\
\\
\\
\\
\
ii
I
The output panel of HDMI device
PC
14
Bill I
I
i
The output panel of other AV device
