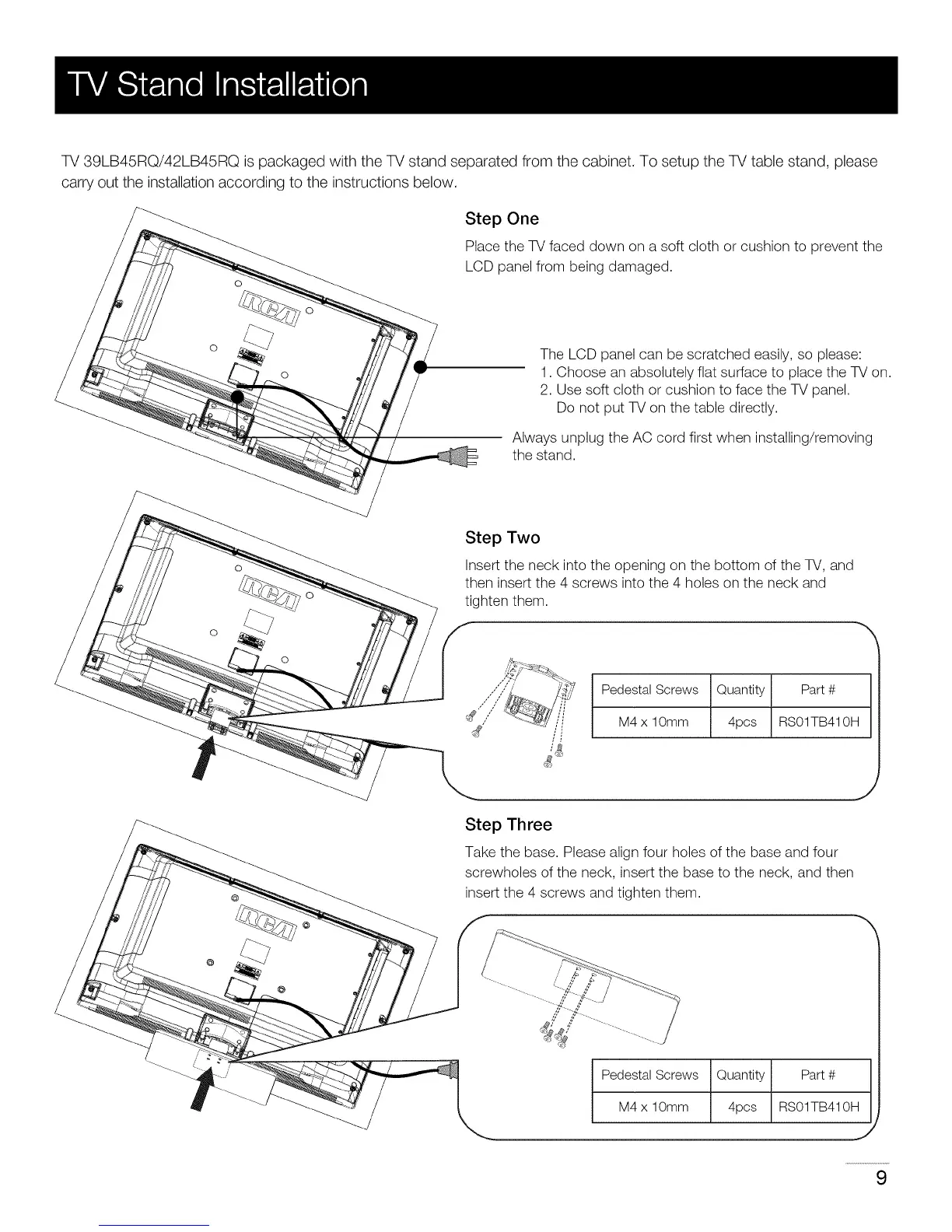

TV 39LB45RQ/42LB45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please
carry out the installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prevent the
LCD panel from being damaged.
The LCD panel can be scratched easily, so please:
1. Choose an absolutely flat surface to place the TV on.
2. Use soft cloth or cushion to face the TV panel.
Do not put TV on the table directly.
Always unplug the AC cord first when installing/removing
the stand.
Step Two
Insert the neck into the opening on the bottom of the TV, and
then insert the 4 screws into the 4 holes on the neck and
tighten them.
Pedestal Screws Quantity Part #
/,/'//"
_ /" M4 x 10mm 4pcs RS01TB41 OH
_÷ /.
I
Step Three
Take the base. Please align four holes of the base and four
screwholes of the neck, insert the base to the neck, and then
insert the 4 screws and tighten them.
Pedestal Screws Quantity
M4 x 10mm 4pcs
Part # J
RS01TB41 OH
J
9
To Next Page
