The back of TV
Audio
L R
Audio
L R
Video
YPbPr
HDMI
The output panel of other device
Side Panel Connections
Connecting AV Composite device (Good Video Quality)
To connect a composite AV device, such as a DVD player, follow these steps:
1. Connect the VIDEO jack on the side of TV to the video output jacks of device via video cable (yellow).
2. Connect the AUDIO IN R-AUDIO-L jacks on the side of TV to the audio output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right channel jack and plugs are red.
Composite Video Connection

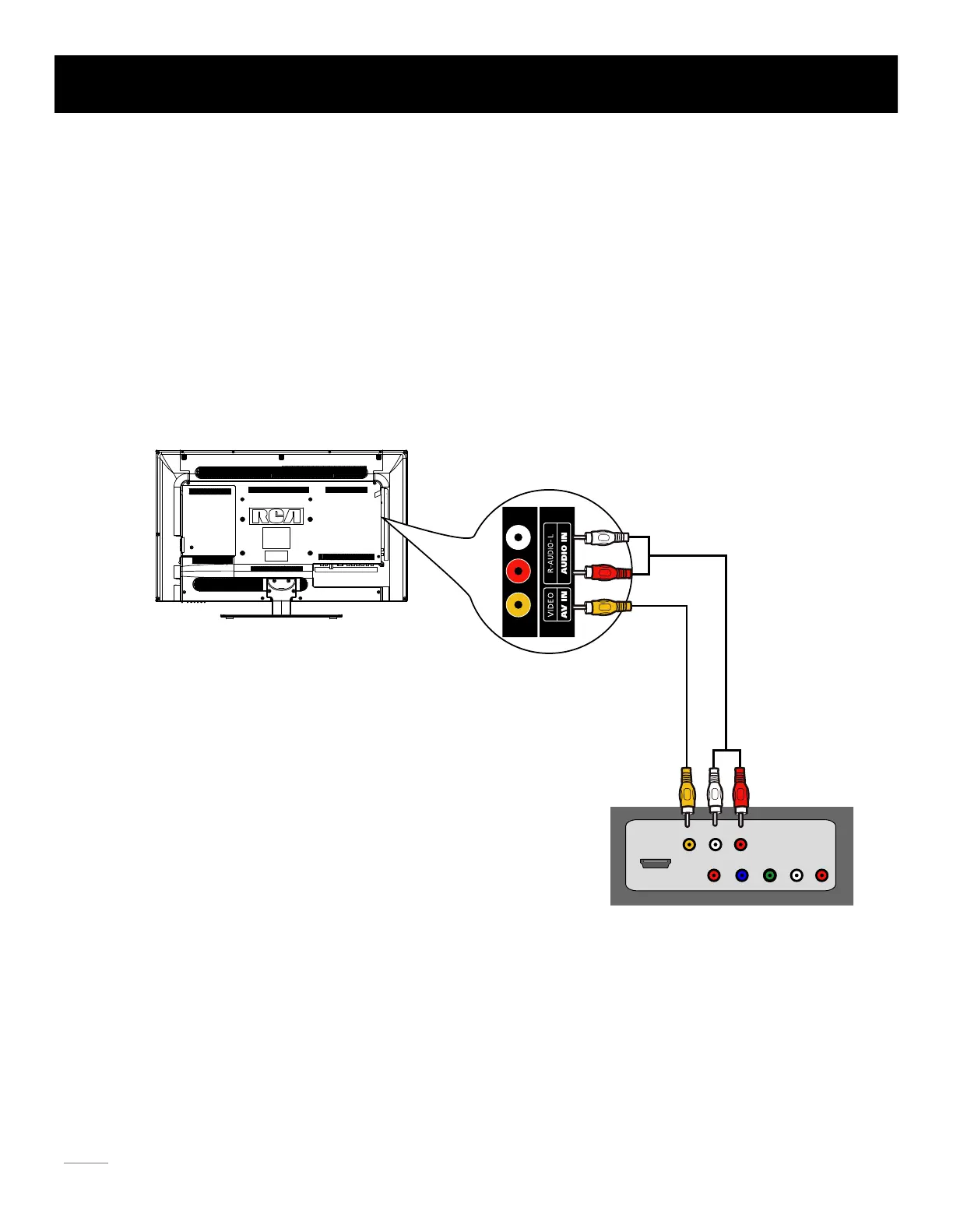

The picture below is an example of a connection using the composite video jack.
Note: AV signal belongs to composite video. This kind of video signal has regular good display quality.
12
