RCA RACE5002E

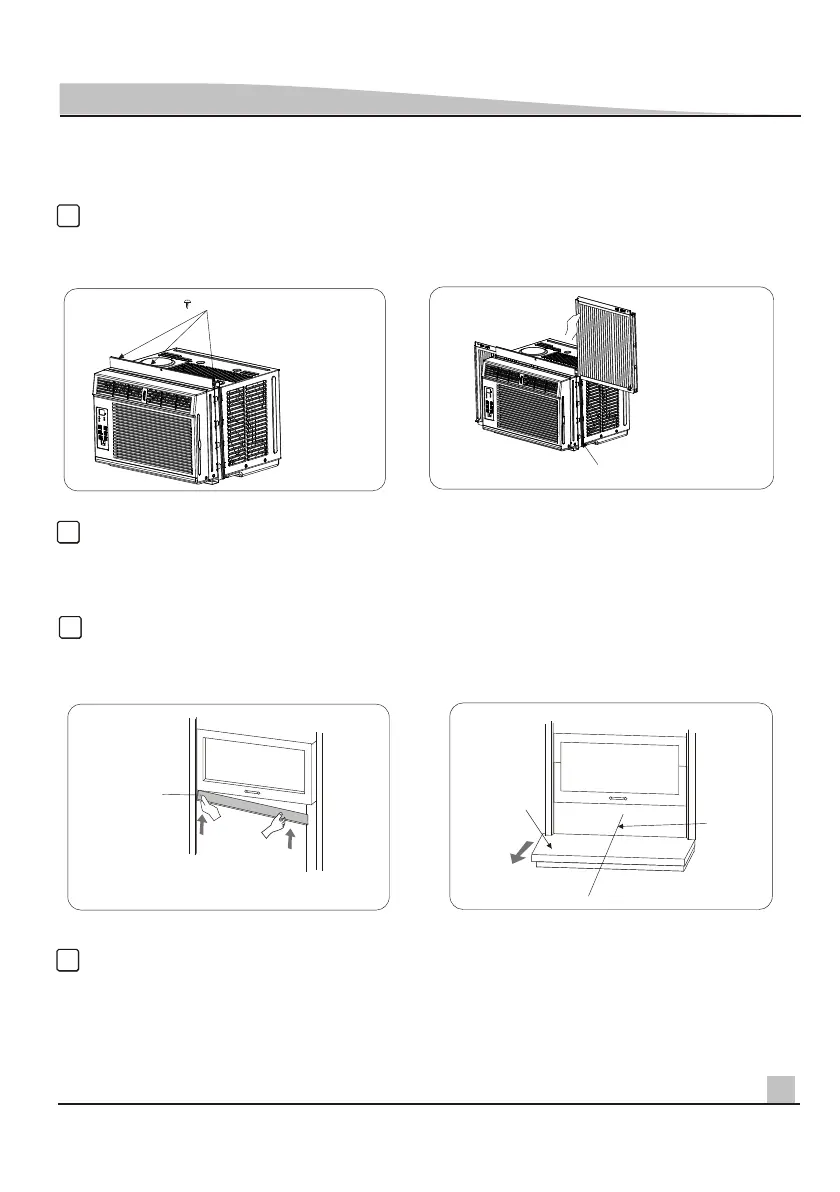

PREPARATION OF CHASSIS
SIDE CURTAINS
Pull the curtains and make them fit into the T shape groove from the top down, then insert and push the
frame into the guides of the air conditioner, as shown in FIG.6.
1
1
FIG.6
2
2
UPPER GUIDE
Fasten the upper guide(ITEM E) on the top of the air conditioner with 3 screws (ITEM A) as shown in
FIG.5.
ITEM A
FIG.5
T SHAPE GROOVE
Open the window and mark center line with pencil in the center of the inner sill, as shown in FIG.8.
4
ROOM SIDE
INNER SILL
CENTER
LINE
FIG.8
LOCATE THE UNIT IN WINDOW
FOAM STRIP
(ITEM F)
FIG.7
Cut the adhesive-backed foam strip(ITEM F) to the window width. Remove the backing from the foam
strip and attach the foam strip to the underside of the bottom window. (FIG.7)
3
FOAM STRIP
99
INSTALLATION
