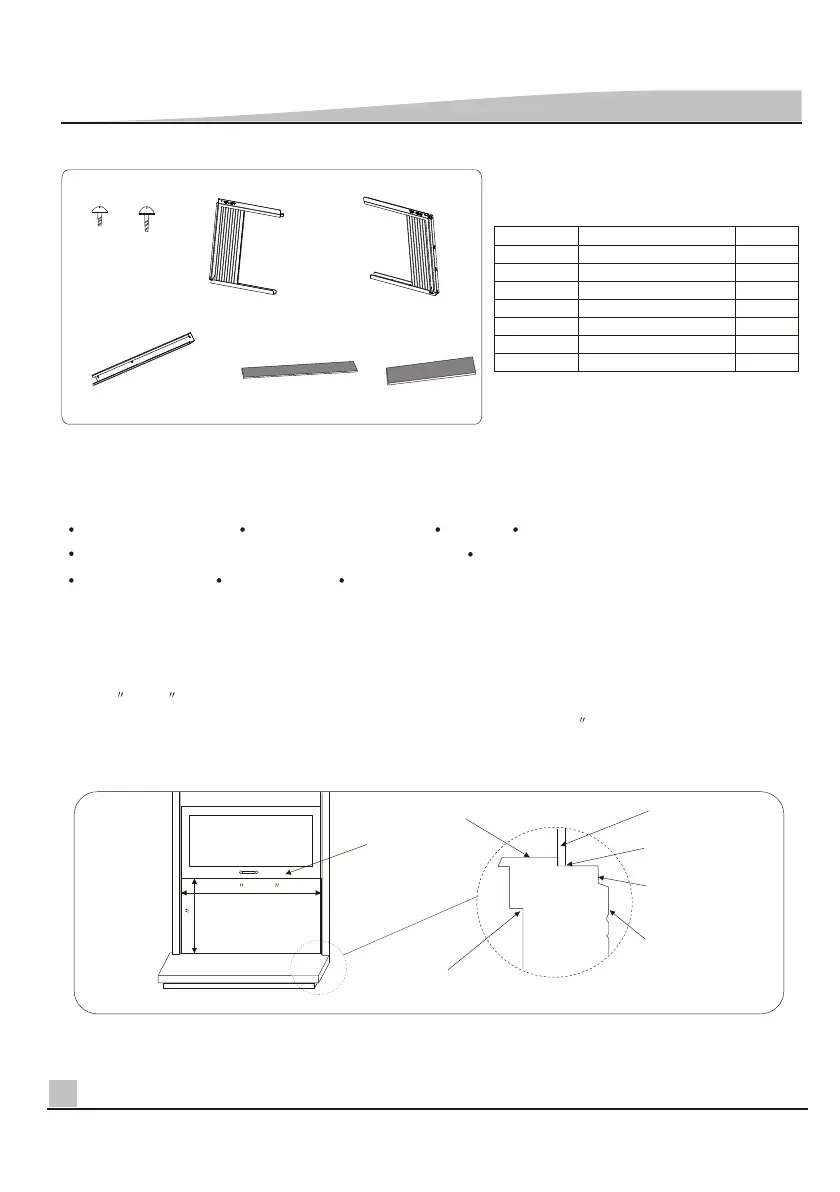

ITEM
NAME OF PARTS Q’TY
A
B
C
D
E
SCREW(ST4X16FT)
GUIDE PANEL(LEFT)
UPPER GUIDE
5
3
1
1
1
A B
C
D
FIG.3
GUIDE PANEL(RIGHT)
SCREW(ST4X10FT)
E
Attention: For detailed content of accessories, please take our package as major reference.
REQUIRED TOOLS:
Tight fitting gloves Standard screwdriver
Pliers
Sharp knife
3/8-inch open end wrench or adjustable wrench
1/4-inch hex socket and racher
Tape measure Electric drill
1/4-inch drill bit
This air conditioner will be installed into standard double hung windows with actual clear opening widths
of 23 to 37 (about 920mm to 580mm).(FIG.4).
Lower sash must open sufficiently to allow a clear vertical opening of 13 (about 325mm). Side louvers
and the rear of the air conditioner must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
WINDOW REQUIREMENTS
23 to 37
13
Sash
FIG.4
Interior wall
Window
Offset
Sill
Inner sill
Exterior
88
INSTALLATION
F
G
F
G
1
1
FOAM STRIP(Adhesive backed)
FOAM STRIP(Not adhesive backed)
To Next Page
