4
Function Overview
5. Y / Pb / Pr OUT
Connect to TV with Y / Pb / Pr input.
6. AUDIO IN (AUX 1 )
Connect to the audio output of TV, VCR or any audio
device.
7. AUDIO IN (AUX 2 )
Connect to the audio output of TV, VCR or any audio
device.

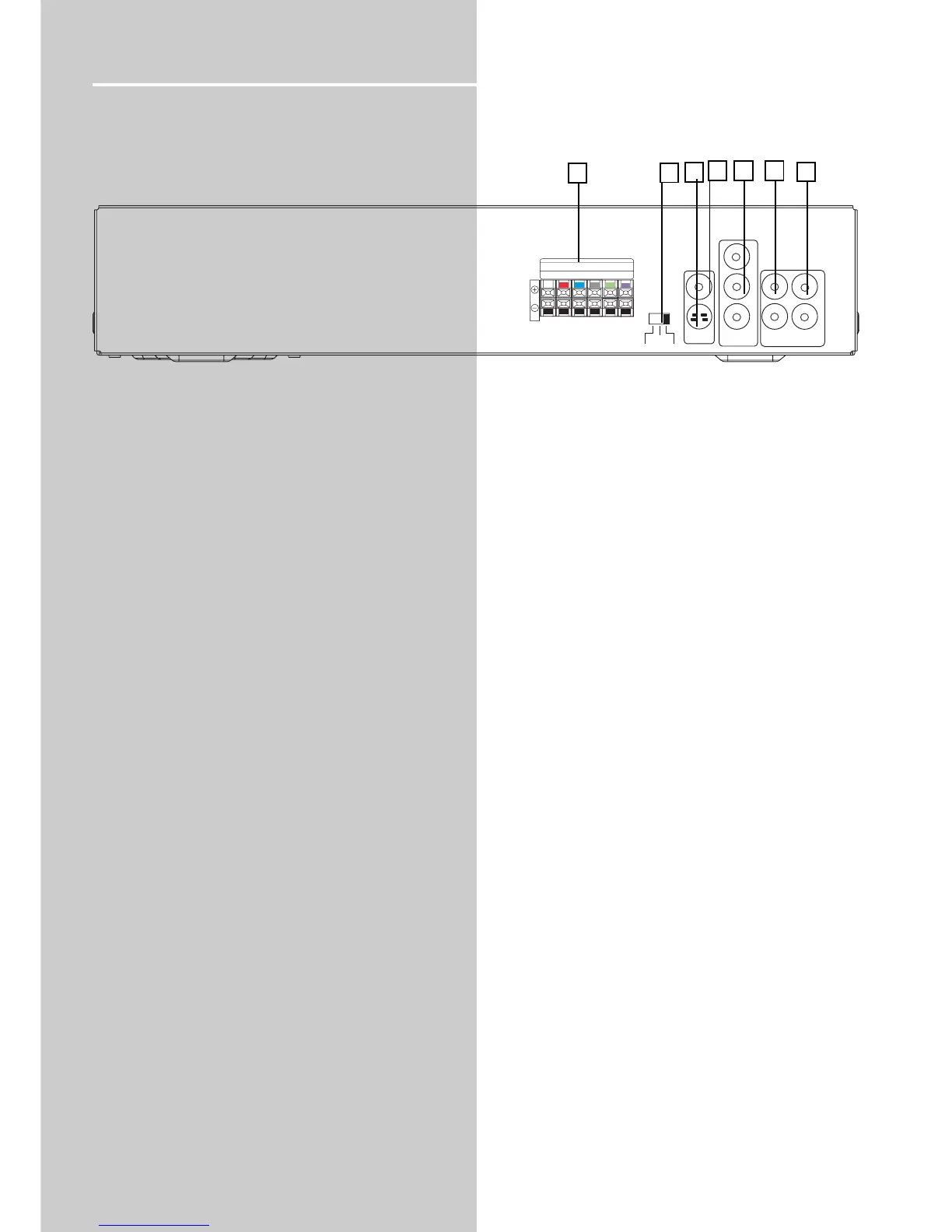

Back panel
1. SPEAKER
Connect to the supplied speakers.
2. OUTPUT SELECTOR
Select either S-video ,component video output with
progressive scan (480p P.scan) or component video output
without progressive scan (480i).
3. S-VIDEO OUT
Connect to TV with S-video input.
4. VIDEO OUT
Connect to the TV video input.
1
2
5
3
4
7
6
COMPONENT VIDEO
S-VIDEO OUT
Pb
Pr
Y
OUT(480P/480I)
IN
IN
L
R
480I
480P
P-SCAN
S-VIDEO
AUX 1 AUX 2
FR FL SR SL CEN SUB
SPEAKERS
8Ω
6Ω
