INPUT 1 INPUT 2 INPUT 3 INPUT 4
REFERENCE CHART
Note which component you connect to each input.

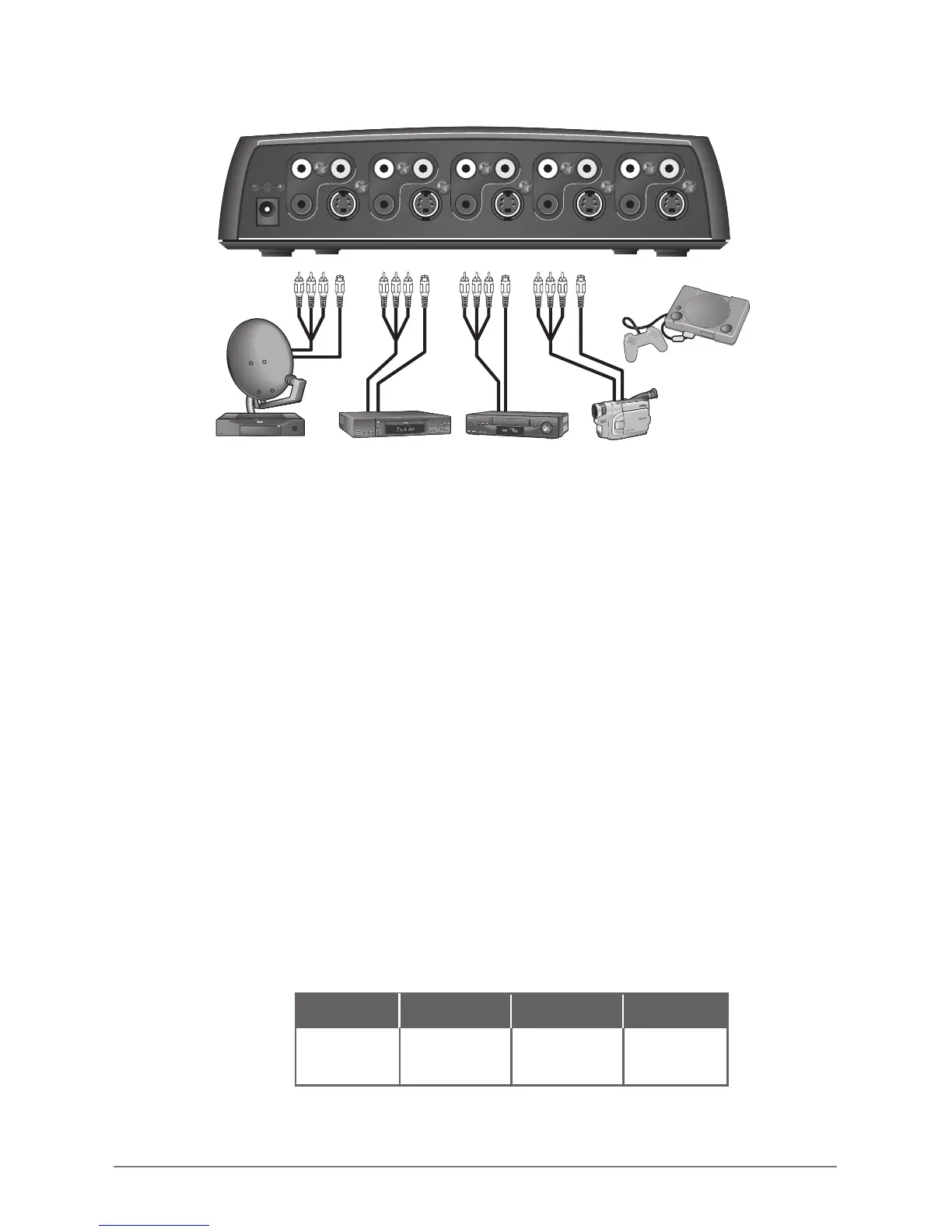

1. Make the video connection.
For the first component, connect EITHER an S-Video cable or a composite video
cable to the corresponding IN1 VIDEO jack on the switcher's back panel.
Connect the other end of the cable to the component's video output jack.
2. Make the audio connection.
For the first component, connect a stereo audio cable to the IN1 AUDIO jacks on
the switcher's back panel.
Connect the other end of the cable to the component's audio output jacks.
Make sure you match the color coding at the end of the cables with the color
coding on the jacks—match red with red and white with white.
3. Repeat the video and audio connection steps for your other input components on
IN2, IN3 and IN4.
As you connect your components to the input jacks, note which component you
have connected to each jack in the space provided below. This information is
important to have handy.
