RCA VR622HF

connections
43
TV With Audio/Video Jacks
This connection assumes:
• You are connecting an antenna, cable, or cable box
system.
• Your television has audio/video jacks.
This connection provides:
• Stereo sound playback from VCR.
• Record one channel while watching another (except
when using a cable box for all channels).
To use this connection, you must have:
• (1) antenna cable for cable/antenna connection; (2) for
cable box
• (3) audio/video cables
To connect:

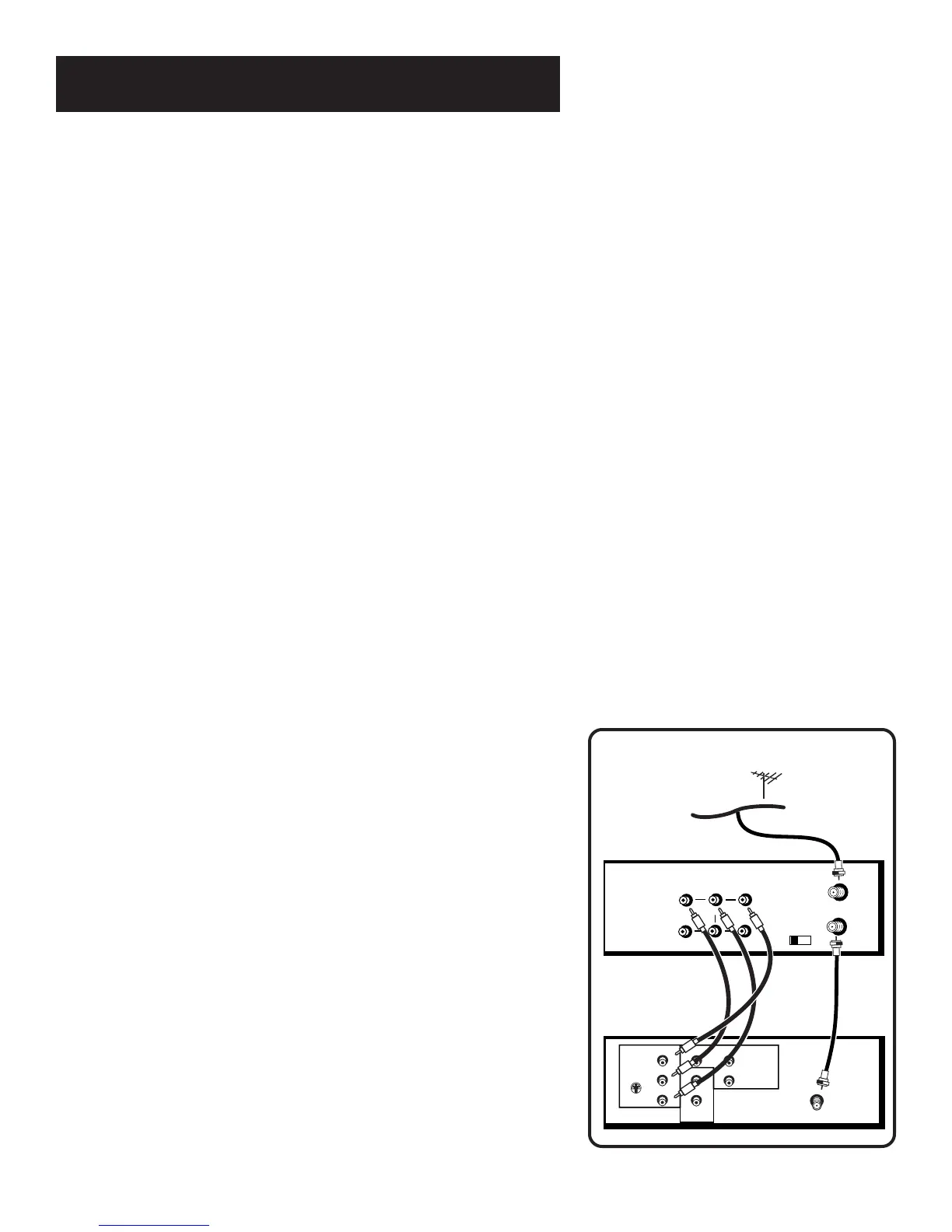

1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to its video input channel. Use of the TV•VCR
button is not required.
Auto TV/VCR Setting:
• Set the Auto TV/VCR feature to OFF.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the recording
options.
2. Select a different channel on the TV.
VCR
TV
3 CH. 4
IN FROM
ANT.
VIDEO
OUT
R-AUDIO-L
OUT TO TV
VHF/UHF
MONO
IN 1
INPUT 1
VIDEO
R
L/MONO
S-VIDEO
AUDIO
OUTPUT
R
L
INPUT 2
VIDEO
R
L/MONO
CABLE/
ANTENNA
CABLE, CABLE BOX, OR ANTENNA
