RCbro SPARROW V3 Pro - RC Channel Assignments and Servo Power; Servo Power Options and Capacitor Use

RCbro
®
SPARROW V3 Pro
LefeiRC www.lefeirc.com/
RC
PPM/SBUS/IBUS/CRSF
T1
MAVLINK
T2
CRSF
TX
GPS-RX
RX
GPS-TX
S1
AIL
S2
ELE
S3
THR
S4-S8
AUX Channel(S4 defaults to RUD)
CAM1-2
Dual camera
VTX
VTX
9V5
VTX/CAM power supply
BAT
Battery
ESC
ESC
VX
Servo power
G/GND
GND
*It is recommended to remove the propeller during installation and debugging, pay attention
to safety!

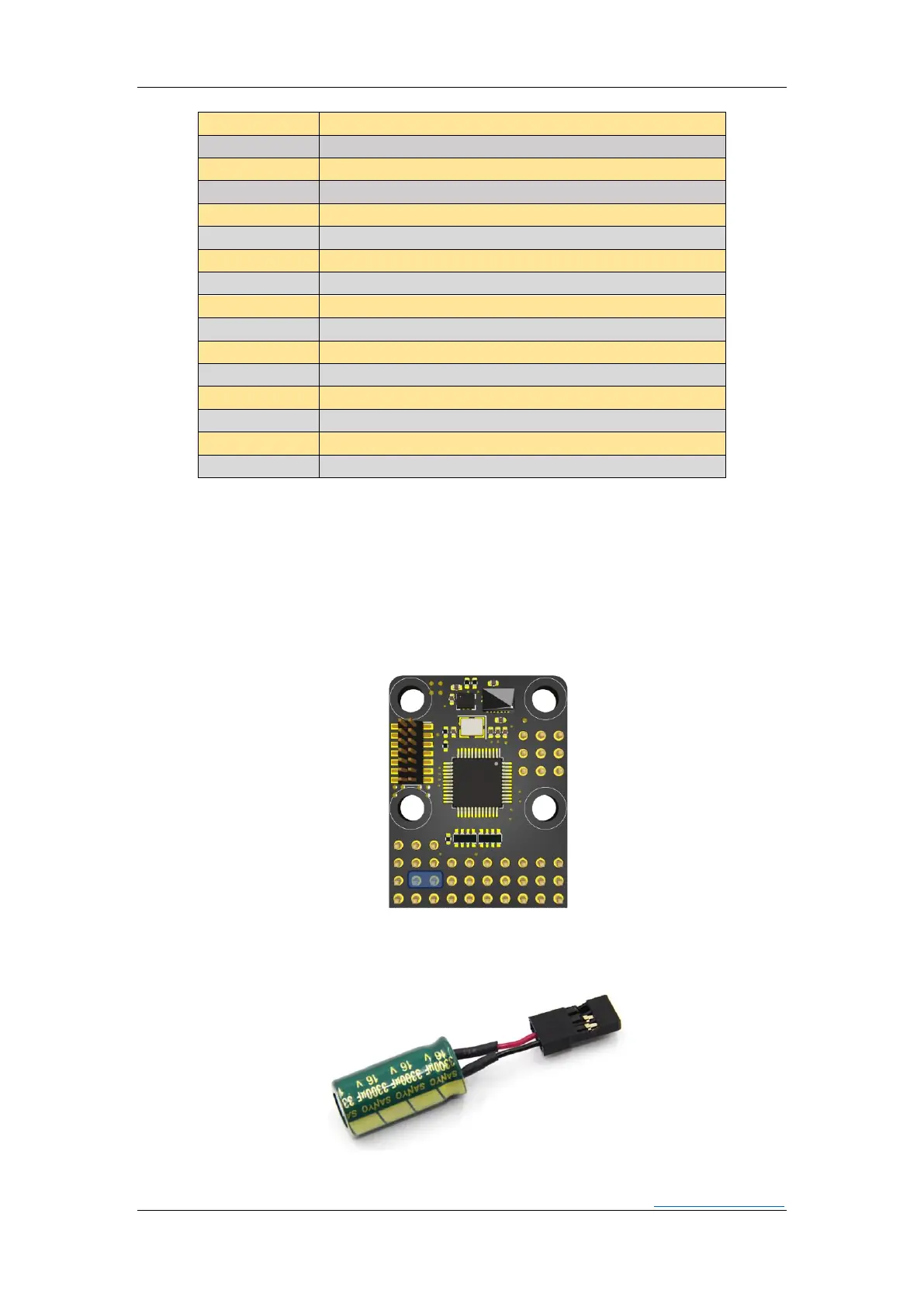

➢ Servo power
FC 5V BEC(PMU): Use solder to connect the two pins shown in the picture, and disconnect
other BEC of the servo (such as the built-in BEC of the ESC).
External BEC: If you do not connect the two pins shown in the figure, the external BEC is
used by default. The BEC can be connected to any channel among S1-S8.
It’s recommended to use the supplied 3300uF/16V capacitor to get a more stable and
secure working voltage for the PMU. The capacitor can be plugged onto any one of the
free input or output sockets of the FC.
