5
FUNCTIONS

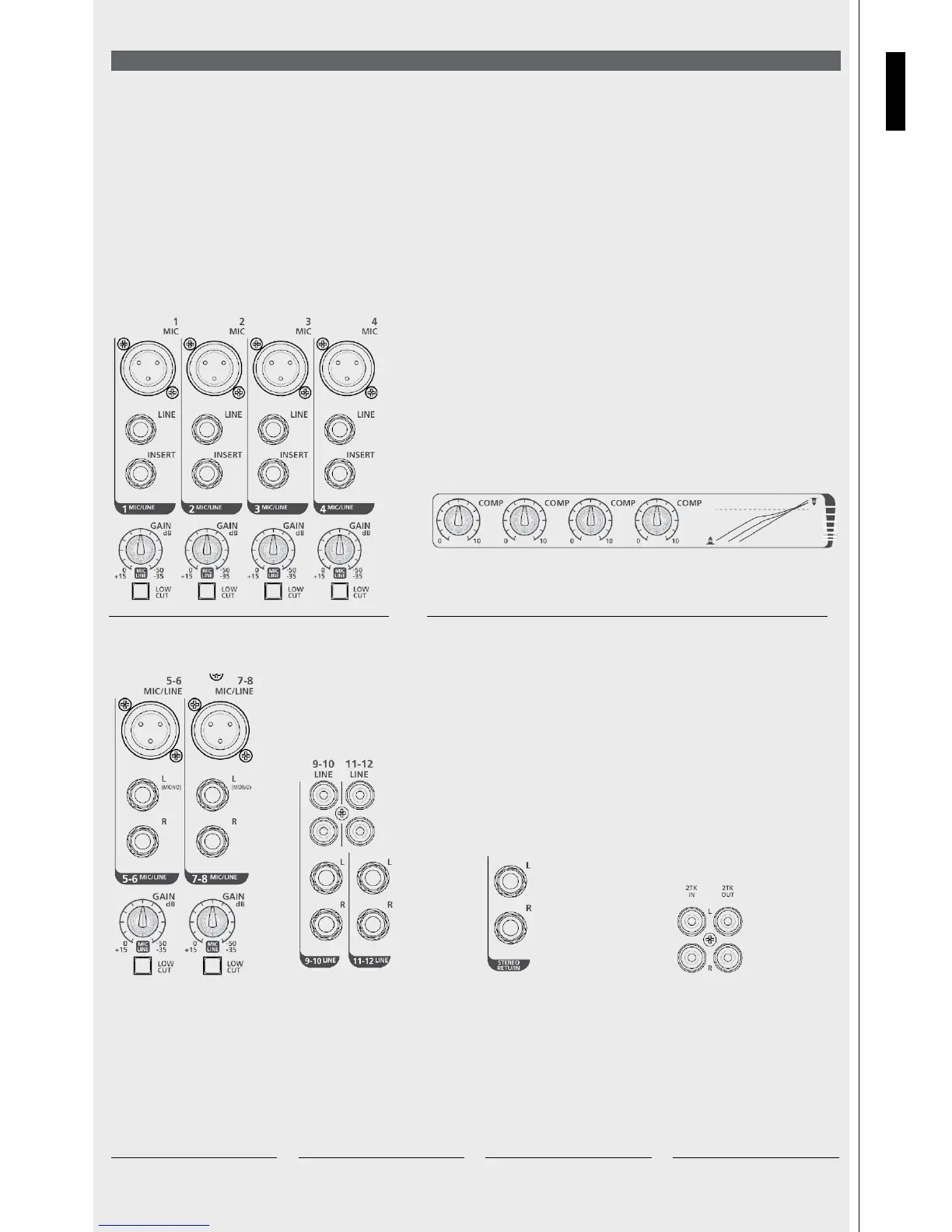

MIC input (Ch. 1 - Ch. 7/8) Connect your microphones to these balanced XLR connectors: pin1=Earth, pin2=Hot, pin3=Cold. These inputs are provided
with +48 V phantom power for condenser or electret microphones. Gain scale 0 dB/‑50 dB.
LINE input (Ch. 1 - Ch. 4) Connect your line level devices to these TRS jack connectors: tip=Hot, ring=Cold, sleeve=Earth. These inputs are suitable for
external pre‑amplifier and DI‑boxes. Gain scale +15 dB/‑35 dB.
INSERT (Ch. 1 - Ch. 4) These TRS connectors: tip=send, ring=return, sleeve=common earth allow to send the signal, thru an unbalanced line, to external
devices (i.e. compressor) and return the processed signal back into the channel.
GAIN (Ch. 1 - Ch. 6) This controls the level gain (0 dB/‑50 dB for microphone input and +15 dB/‑35 dB for line input when in use).
LOW CUT switch: Press this button to cut off frequency below 75 Hz with a slope of 12 dB/oct. This is useful to prevent rumbling when using
microphones.
COMP (Ch. 1 - Ch. 4). A single potentiometer controls both compressor threshold
and ratio.
STEREO LINE INPUT
(Ch. 5/6 - Ch. 11/12)
Plug in your keyboard, line
level or stereo devices here.
Gain scale +15 dB/‑35 dB
(Ch. 5/6 ‑ Ch. 7/8). The
corresponding channel works as
a mono channel when MIC input
5‑6 or 7‑8 is used.
STEREO RETURN
Connect signals from external
devices, such as FX modules, to
these unbalanced TRS jacks.
RCA LINE INPUT
(Ch. 9/10 - Ch. 11/12)
Plug in your low‑level or
consumer devices, like CD
players, computers or mobile
phones here (adapter needed).
2TK IN – 2TK OUT
These unbalanced RCA
connectors are suitable for
connecting audio player and
recorder devices.
ENGLISH
