10

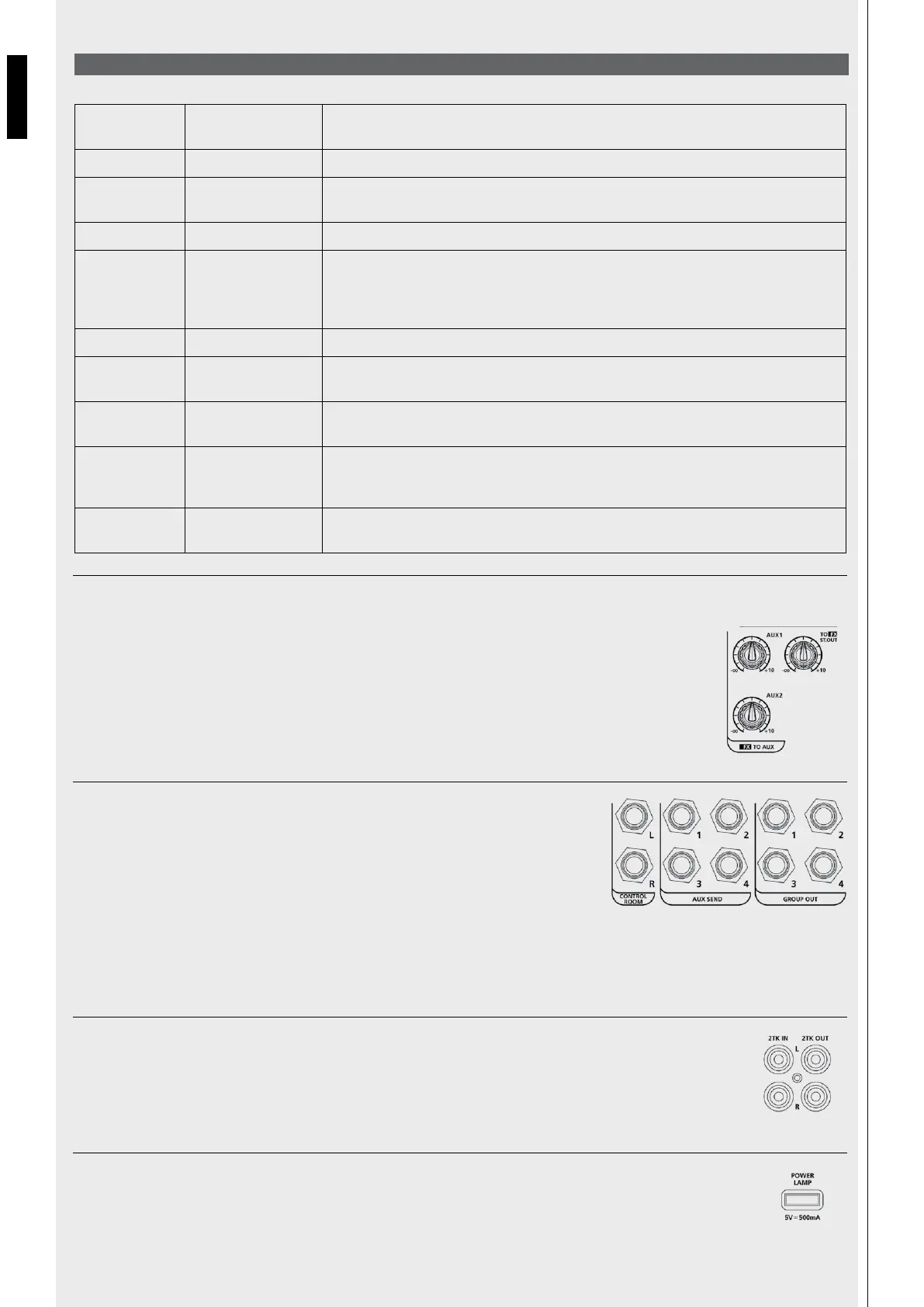

[19] MANAGEMENT OF THE INTERNAL EFFECT SEND TOWARDS AUXILIARIES AND TOWARDS THE DEDICATED FX OUT
TO AUX 1: sends the output of the internal effect towards AUX 1. Ideal for sending the internal effect to a stage
monitor connected to AUX 1.
TO AUX 2: sends the output of the internal effect towards AUX 2. Ideal for sending the internal effect to a stage
monitor connected to AUX 2.
TO FX OUT: sends the output of the internal effect towards the dedicated FX ST. OUT output situated on the
rear panel.
[20] AUDIO OUTPUTS FOR TRS 1/4“ JACK CONNECTORS.
NOTE: see also the manual section entitled „Wiring the connectors“.
PHONES: two stereo outputs (A and B) for the connection of headphones.
CONTROL ROOM: balanced L (Left channel) and R (Right channel) outputs which can be
used, for instance, for connecting to amplified control room speakers (or other monitors).
AUX SEND: balanced 1, 2, 3, 4 (FX) outputs of the corresponding AUX auxiliary sends.
GROUP OUT: balanced 1, 2, 3, 4 outputs of the corresponding GROUP groups.
[21] UNBALANCED STEREO AUDIO 2TK IN INPUT AND 2TK OUT OUTPUT (RCA CONNECTORS).
2TK IN: stereo audio input (L: left channel, R: right channel) for connecting the output of an external music source
(e.g. CD or MP3 player) or a recorder.
2TK OUT: stereo audio output (L: left channel, R: right channel) for connecting to the input of the recorder (or other audio device).
[22] LAMP SOCKET. USES A USB SOCKET TO POWER A LAMP WITH A 5V-500MA VOLTAGE
FUNCTIONS
00-09 ECHO The echo is added to the sound (“delay” effect).
Applicable to both voice and musical instruments.
10-19 ECHO+VERB Echo plus reverb, similar to the previous ECHO, but more intense.
20-29 TREMOLO Amplitude modulation of the sound (cyclic variation of the volume); ideal effect for electric guitar
and organ.
30-39 PLATE Plate reverb, recommended for snare drums or percussion.
40-49 CHORUS Ideal reverb for adding depth and intens The “Chorus” effect adds a second signal (a copy) which is
slightly discordant with the input, thus creating a kind of “chorus”.
Effect recommended on guitar, keyboards and fretless bass. ity to the lead vocals or instrumental
solos.
50-59 VOCAL Ideal reverb for adding depth and intensity to the lead vocals or instrumental solos.
60-69 ROTARY Simulation of a rotating speaker system, perfect effect for the organ and also suitable for electric
pianos.
70-79 SMALL ROOM Effect that reproduces the reverberation in a small room and is excellent for all instruments
(including percussion).
80-89 FLANGE+VERB The “Flanger” is an effect which is very similar to the “Chorus”, but with a stronger signal (with
extreme settings, you can hear a kind of characteristic whistle); reverb is also added to this.
Recommended for particular guitar and/or drums sounds.
90-99 LARGE HALL This effect recreates the reverberation in a large hall; it is ideal for vocals and can also be used with
instruments.
ENGLISH
