- 6 -

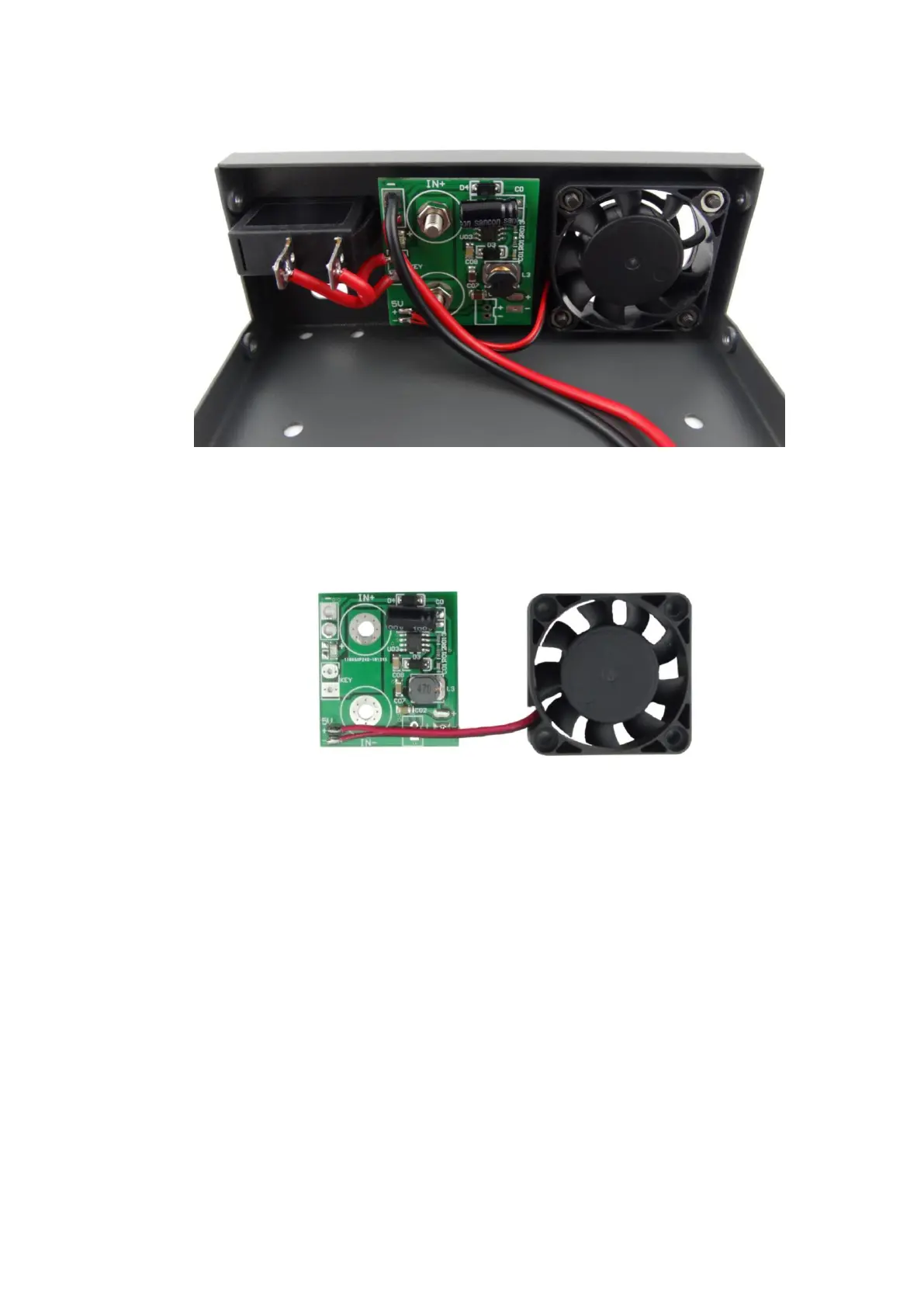

将风扇电源线焊接到风扇供电板正面左下方的 5V 焊盘上
(注意正负极不要焊反)
将电源输入线焊接在风扇供电板左上角的两个焊盘上,(注
意正负极不要焊反)
将供电板安装在后面板的接线端子(注意正负接口
后使用螺母固定
将电源开关用预先准备好的连接线焊接在供电板 Key 处焊
盘上。
