- 7 -

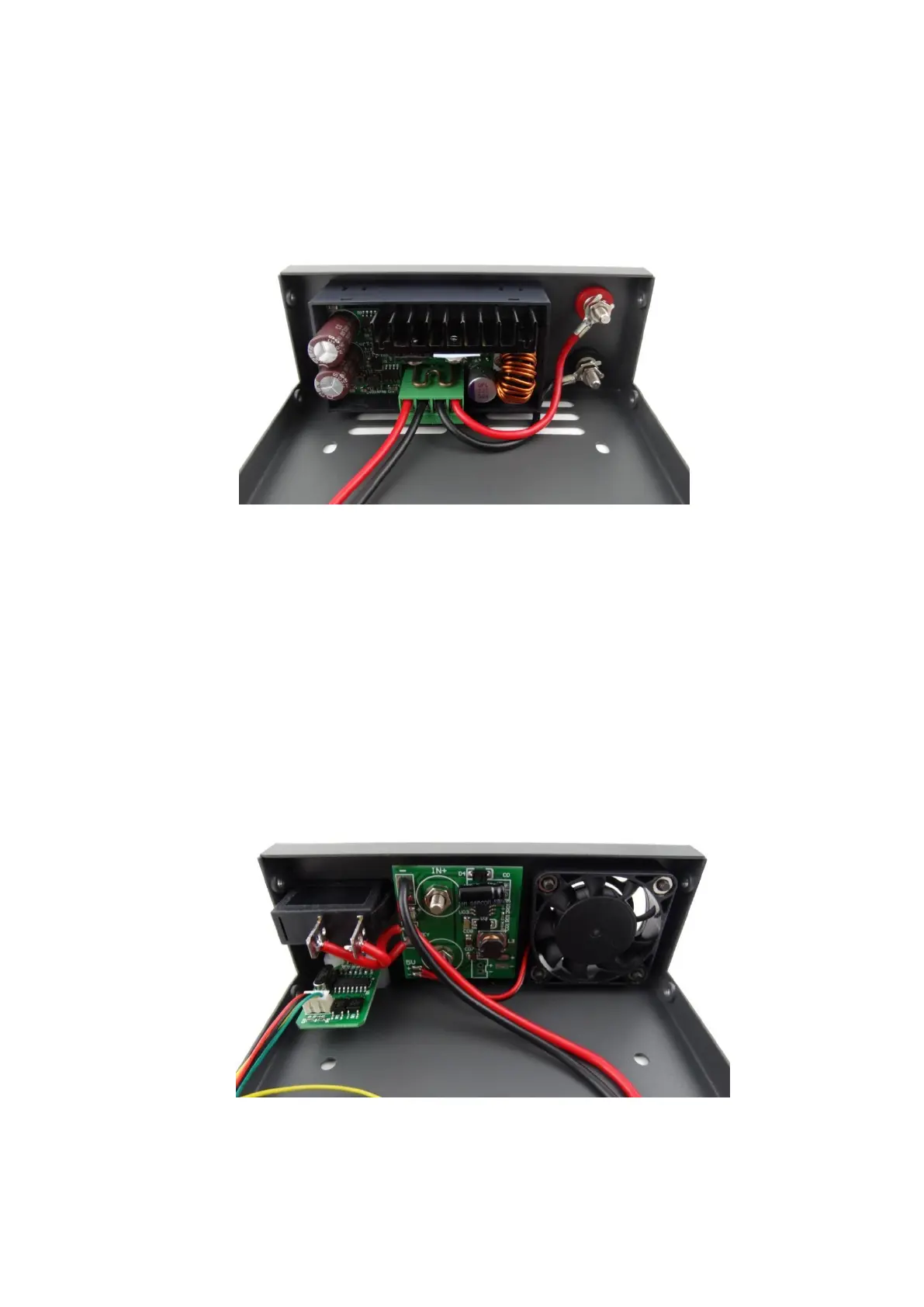

d) 安装散热风扇(注意采用配套的螺栓固定,风扇贴有指示标签
的一侧朝外,不可装反)
e) 安装好输出接线端子,将准备好的带有冷压端子的输出线连接到
输出接线端子上并用螺母拧紧(输出端子上正下负安装,输出
线不要接错)
f) 本外壳针对的产品分为数控模块、USB 通信两个部分,安装过程
为:
首先安装通信部(如果产品不附带通信功能本步骤忽略
