- 5 -
要拧紧)

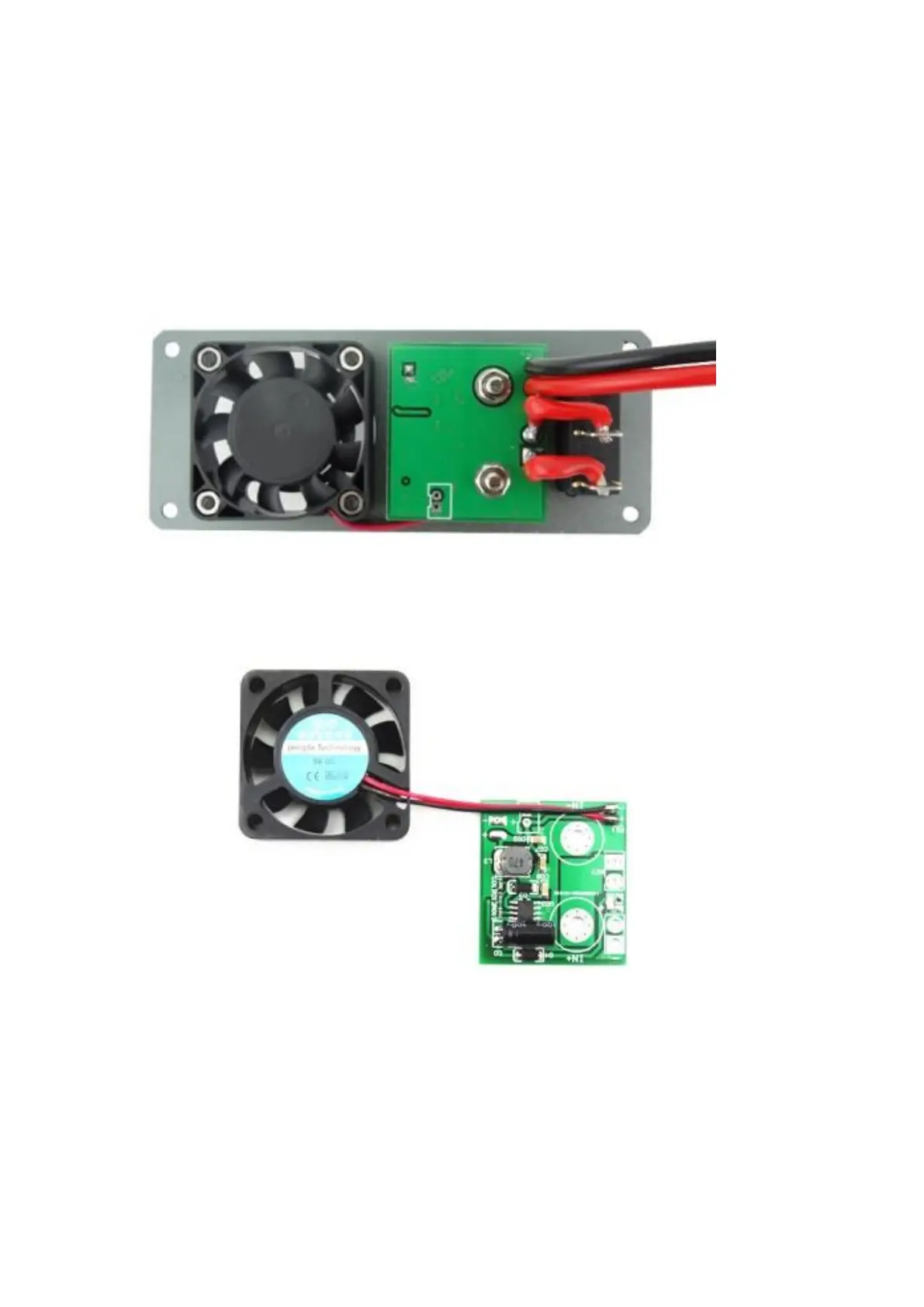

c) 装散热风扇(注采用配套的螺栓固定,风扇贴有指示标签
一侧朝外,不可装反)
d) 安装风扇供电板:
将风扇电源线焊接到风扇 o 供电板正面左下方的 5V 焊盘上(注意
正负极不要焊反
将电源输入线焊接在风扇供电板左上角的两个焊盘背面,(注意正
负极不要焊反
将供电板安装在后面板的接线端子注意背面朝上,正下负)
然后使用螺母固定。
