RD DPS5020 User Manual

- 10 -

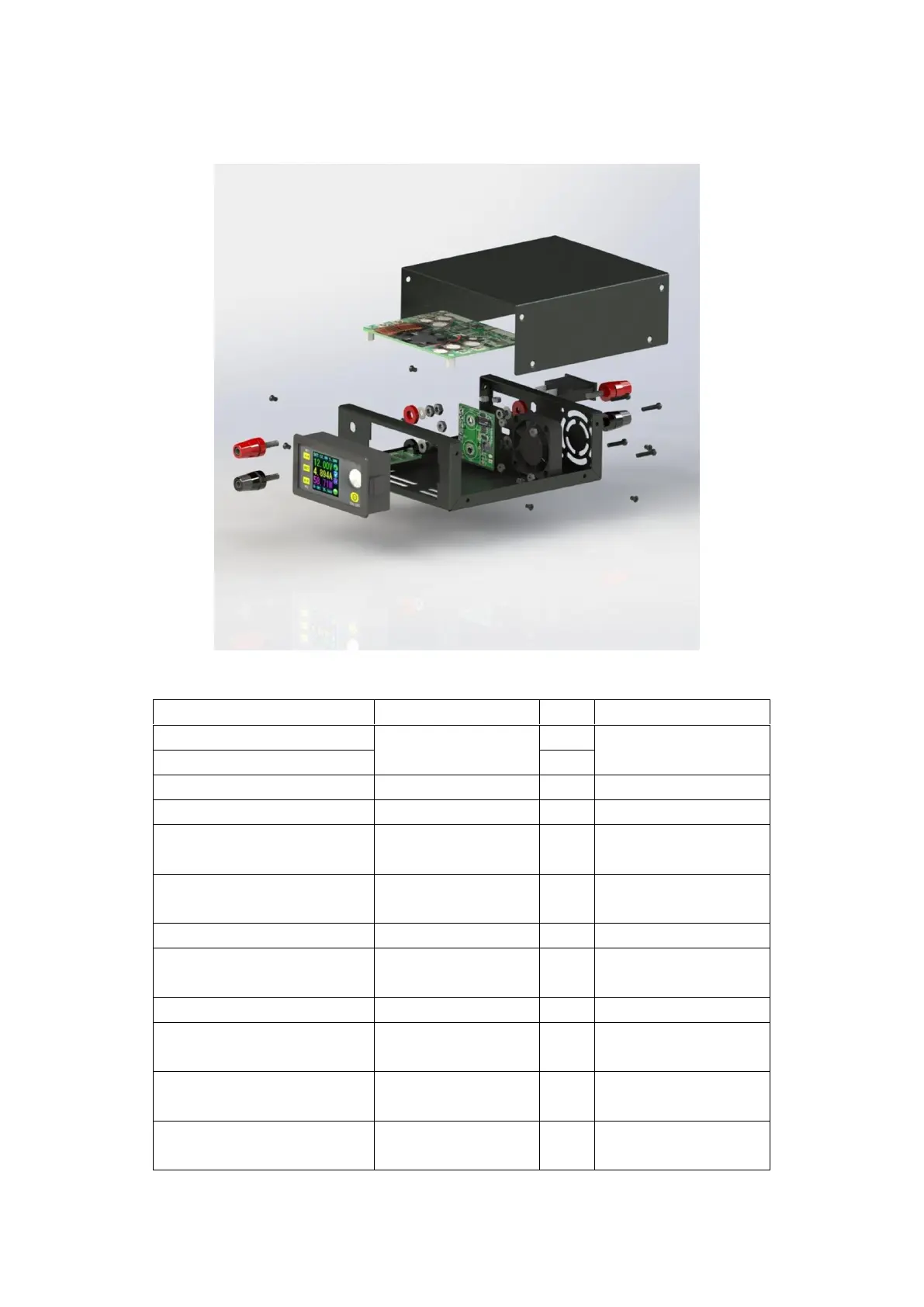

2.1 Product Assembly Explode Diagram
2.2 Kit parts list
Item
Specification
Qty.
Remark
Upper cover plate
137*123*51
MM(L*W*H)
1
Cold-Roll Steel Sheets
Lower cover plate
1
Fan
4010
1
5V power supply
Fan power supply board
36*40（L*W）
1
Binding post
M4*36
4
Red 2pcs
Black 2pcs
Cold press connecting
terminal
UT2.5-4
7
Spade Terminal
Rocker Switch
KCD3
1
Connecting line
RV 2.5 square single
core flexible cord
2
Red 30cm
Black 25cm
Screw for housing
Flat head M3*5
8
Fan fixed screw
Fillister head M3*13
4
Screw 4 pcs
Nut 4 pcs
Nylon column
M3 Single head hex
nylon column L=8mm
2
PA66
Nylon Nut
M3 hexagonal nylon nut
H=2.4mm
2
PA66

RD DPS5020 Specifications

General

Brand	RD
Model	DPS5020
Category	Power Supply
Language	English
