RD DPS5020 User Manual

- 11 -
Power module and
communication board fixing
screw
Fillister head M3*5
6
Transparent sticky mat
Φ12*4
4

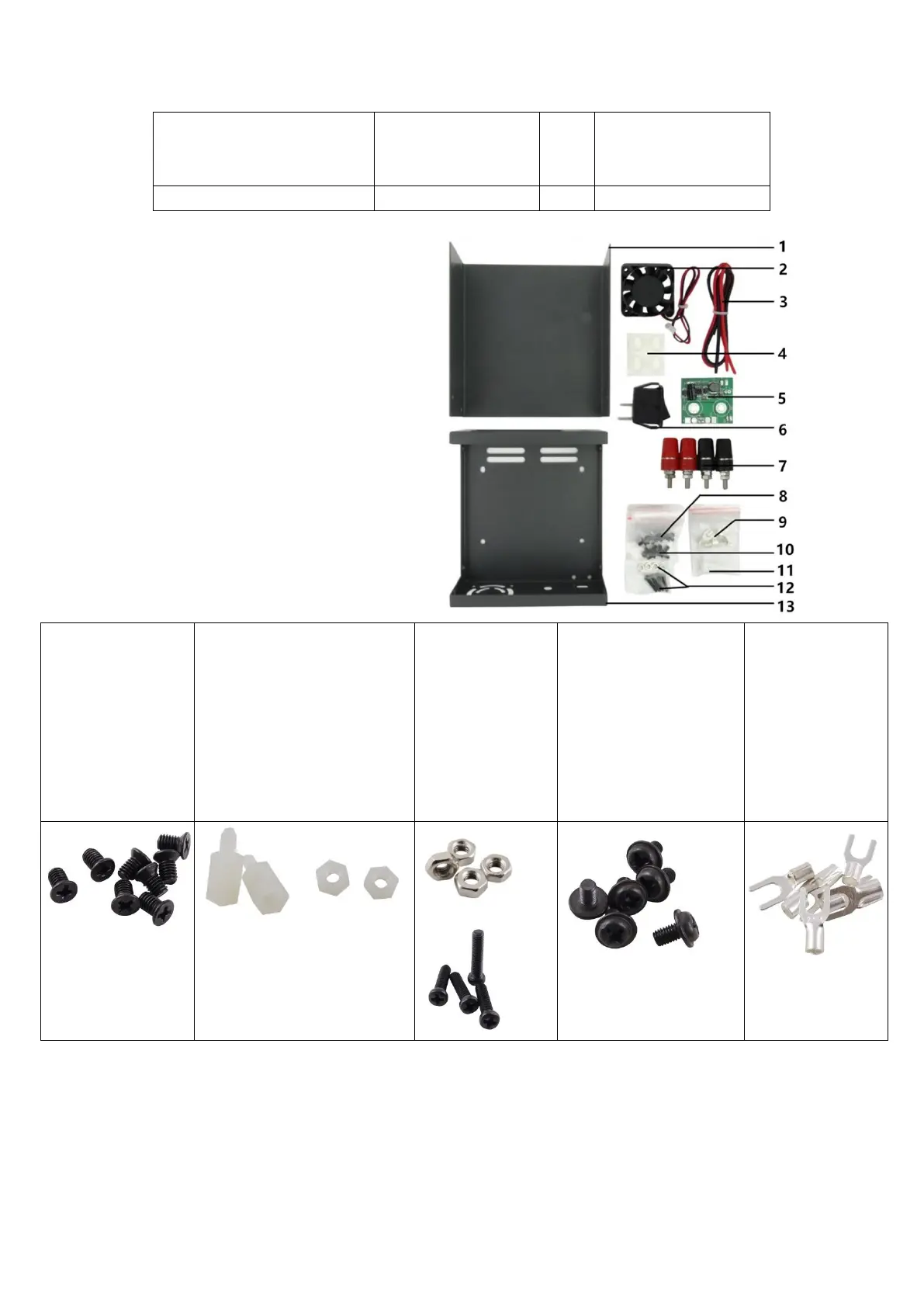

2.3 Kit Parts Picture
1- Lower cover plate
2- Fan
3- Connecting line
4- Transparent sticky mat
5- Fan power supply board
6- Rocker Switch
7- Binding post
8- Power module and communication
board fixing screw
9- Cold press connecting terminal
10- Screw for housing
11- Nylon column 、 Nylon Nut
12- Fan fixed screw
13- Upper cover plate
Note:
Screw for housing
8pcs
Nylon column M3 Single head
hex nylon column L=8mm
2pcs 、 Nylon Nut M3
hexagonal nylon nut H=2.4mm
2pcs
Fan fixed screw
Fillister
head M3*13 4pcs
Power module and
communication board
fixing screw Fillister head
M3*5 6pcs
Cold press
connecting
terminal UT2.5-4
7pcs
3 Installation Procedures
3.1 Installation Preparation
3.1.1 1 pcs digital control power supply
3.1.2 Tools (Soldering iron, solder, Philips screwdriver, Wire stripping pliers)
3.1.3 A proper installation environment
3.2 Installation Procedures
