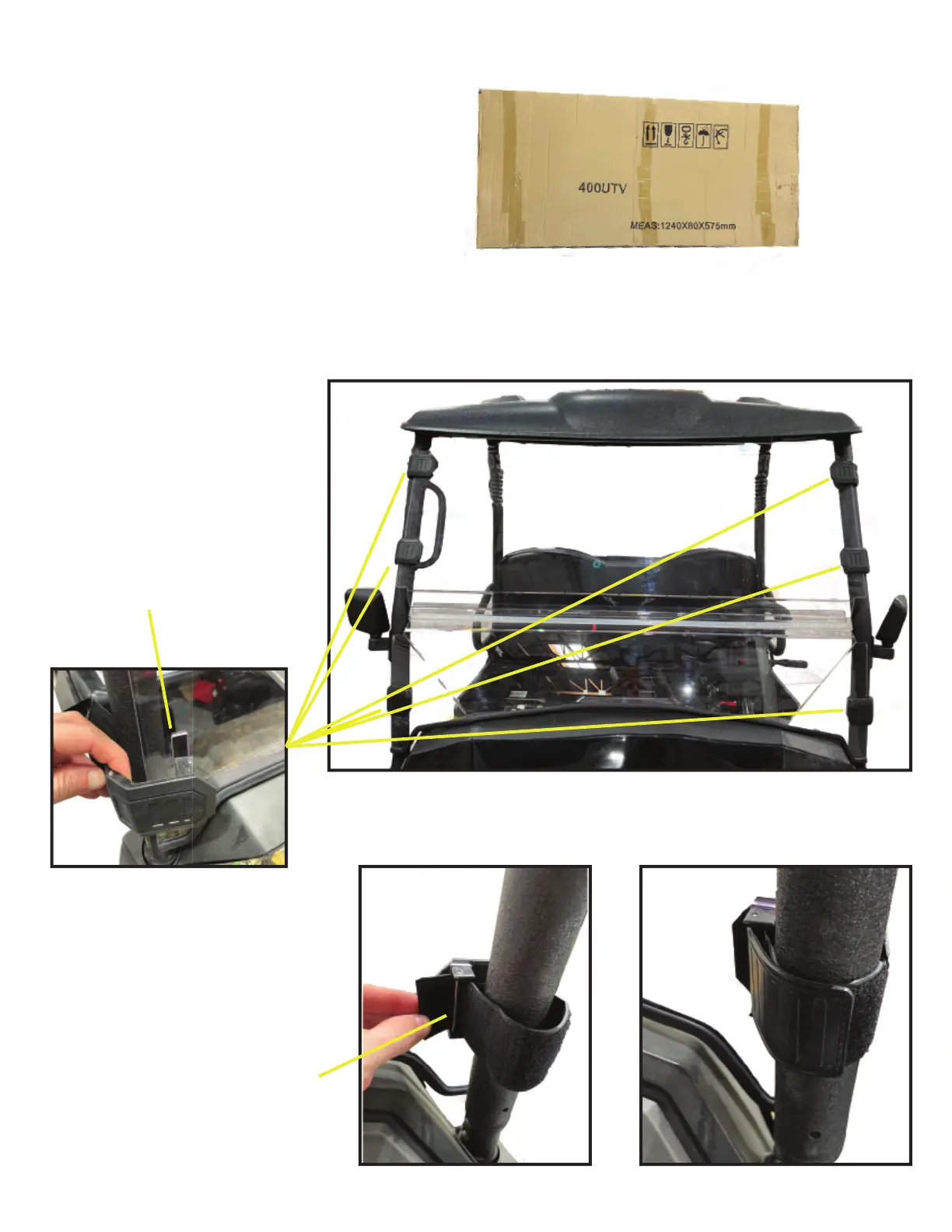

1. Locate box marked 400UTV
and (6) windscreen clamps.
2. Insert windscreen clamps
into each side of the bottom
windscreen as depicted in the
images below.
3. Install bottom windscreen
onto lower roll bars by wrapping
clamp strap around the front roll
bar and feed it though the clamp.
Pull strap taught and secure using
Velcro backing.
4. Repeat step 3 for upper
windscreen.
WINDSCREEN INSTALL
Windscreen Box
Insert clamp into
retangular hole
Feed strap
behind metal bar
7
