Redarc SRP0120 User Manual

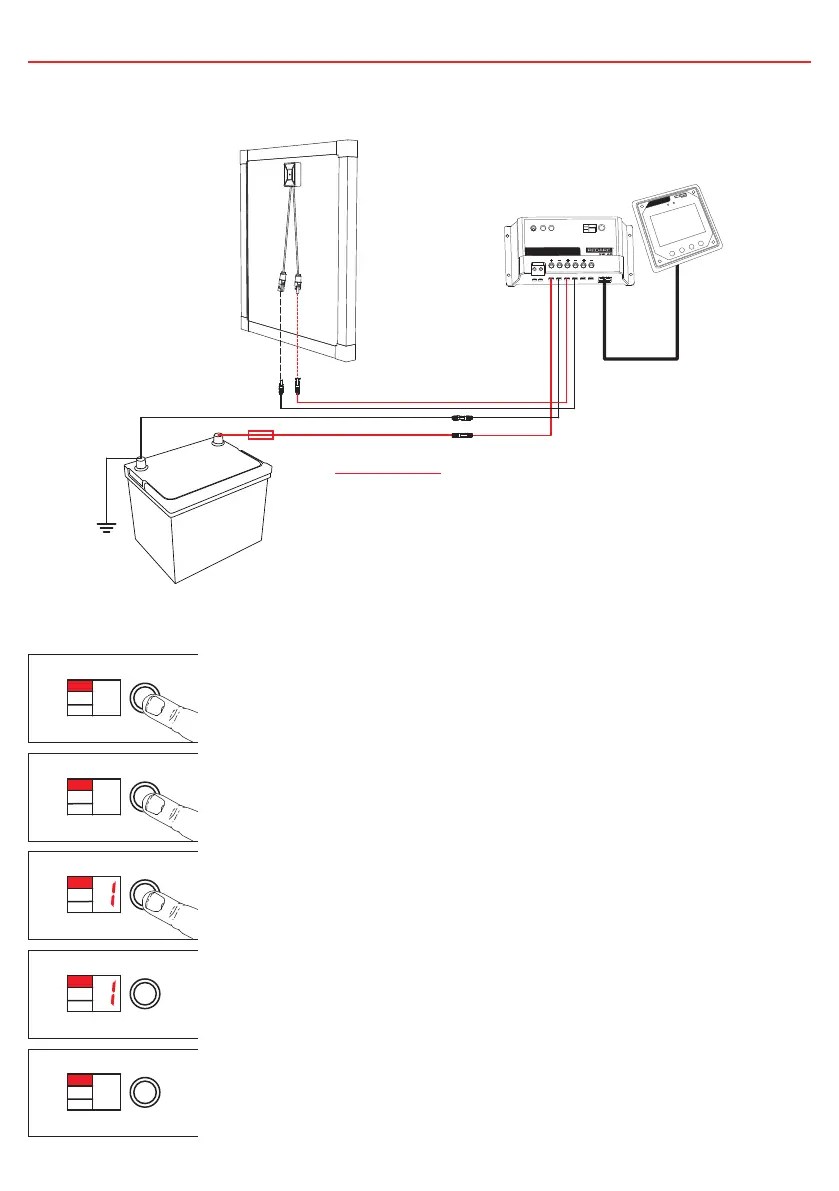

STANDARD SETUP (12V)
Setup for a single AGM or Gel type battery.
+
+
+
-
-
-
Amorphous Flexible
and Folding Solar Panels
are also suitable for this
installation.
Fuse
Fuse Ratings:
Regulator Fuse Size
SRP0120 15A
SRP0240 30A
Fuses are not supplied.
For other installations, appropriate sized fuses
must be used and should be determined according
to specific installation requirements.
Press the ‘Set’ button and
cycle until the first LED is on
(Battery Type).
Leave the ‘Set’ button for 5
seconds to exit mode select.
Leave the ‘Set’ button for 5
seconds to save the setting.
Press the ‘Set’ button until
the number ‘1’ appears as the
setting value.
(Set for AGM or Gel)
Press and hold the ‘Set’ button
for 5 seconds to enter the
setting change state for mode
Battery Type.
Hold
The Charge Priority does not need to be
set for a 1 battery setup as under these
circumstances the battery that is connected
will receive 100% of the charge.
NOTE: Charge frequency is set to 25Hz
as a factory setting. It is not recommended
to change this setting unless absolutely
necessary. If you are unsure as to what this
setting should be, please leave as 25Hz.
