Redarc SRP0120 User Manual

SYSTEM SETUP

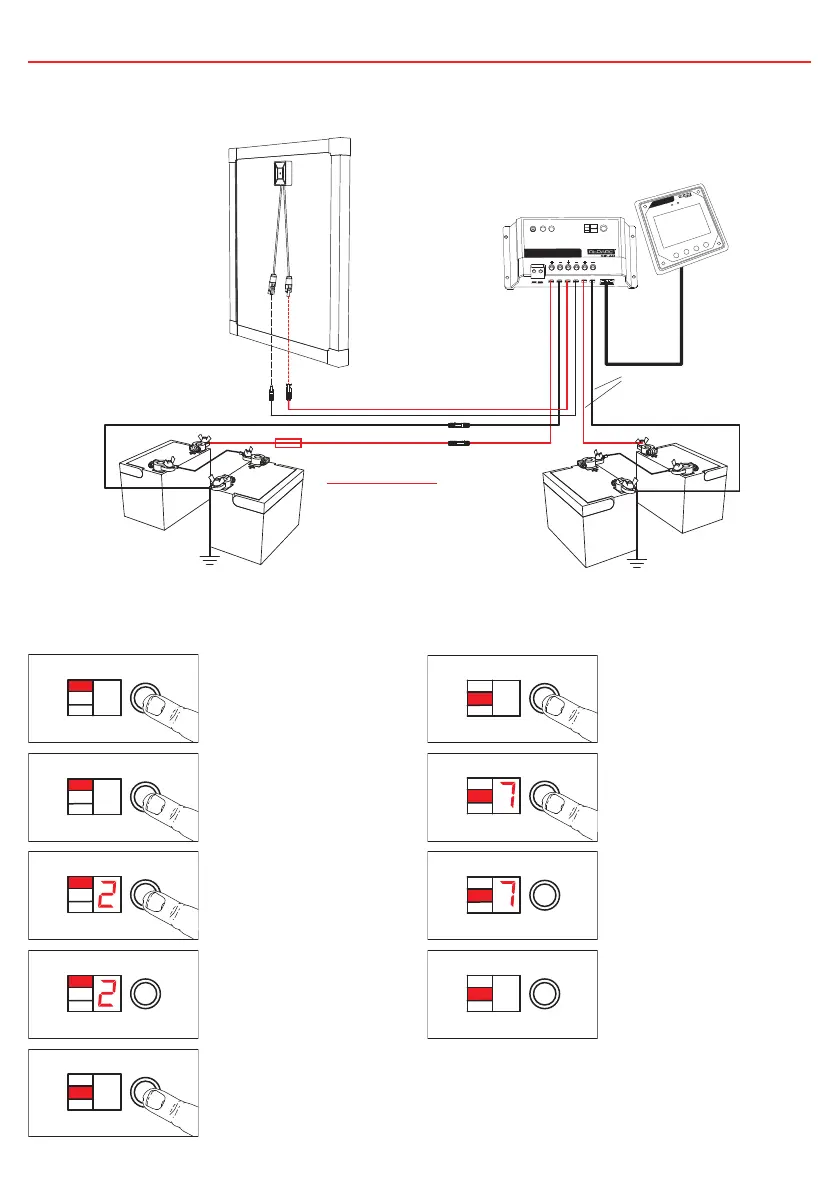

DUAL BATTERY SETUP (24V)
Setup for standard lead acid batteries, 70% charge priority to battery 1.
+
+
+
-
-
-
Cable kits
available for
second battery
installation
Amorphous Flexible
and Folding Solar Panels
are also suitable for this
installation.
Fuse
Fuse Ratings:
Regulator Fuse Size
SRP0120 15A
SRP0240 30A
Fuses are not supplied.
For other installations, appropriate sized fuses
must be used and should be determined according
to specific installation requirements.
24V
Solar
Panel
24V
Battery
Bank
24V
Battery
Bank
Press the ‘Set’ button and
cycle until the first LED is on
(Battery Type).
Press the ‘Set’ button and
cycle until the second LED is
on (Charge Priority).
Leave the ‘Set’ button for 5
seconds to save the setting.
Press the ‘Set’ button until
the number ‘2’ appears as the
setting value.
(Set for Std. Lead Acid)
Press and hold the ‘Set’ button
for 5 seconds to enter the
setting change state for mode
Battery Type.
Hold
Press and hold the ‘Set’ button
for 5 seconds to enter the
setting change state for mode
Charge Priority.
Leave the ‘Set’ button for 5
seconds to exit mode select.
Leave the ‘Set’ button for 5
seconds to save the setting.
Press the ‘Set’ button until
the number ‘7’ appears as the
setting value.
Hold
