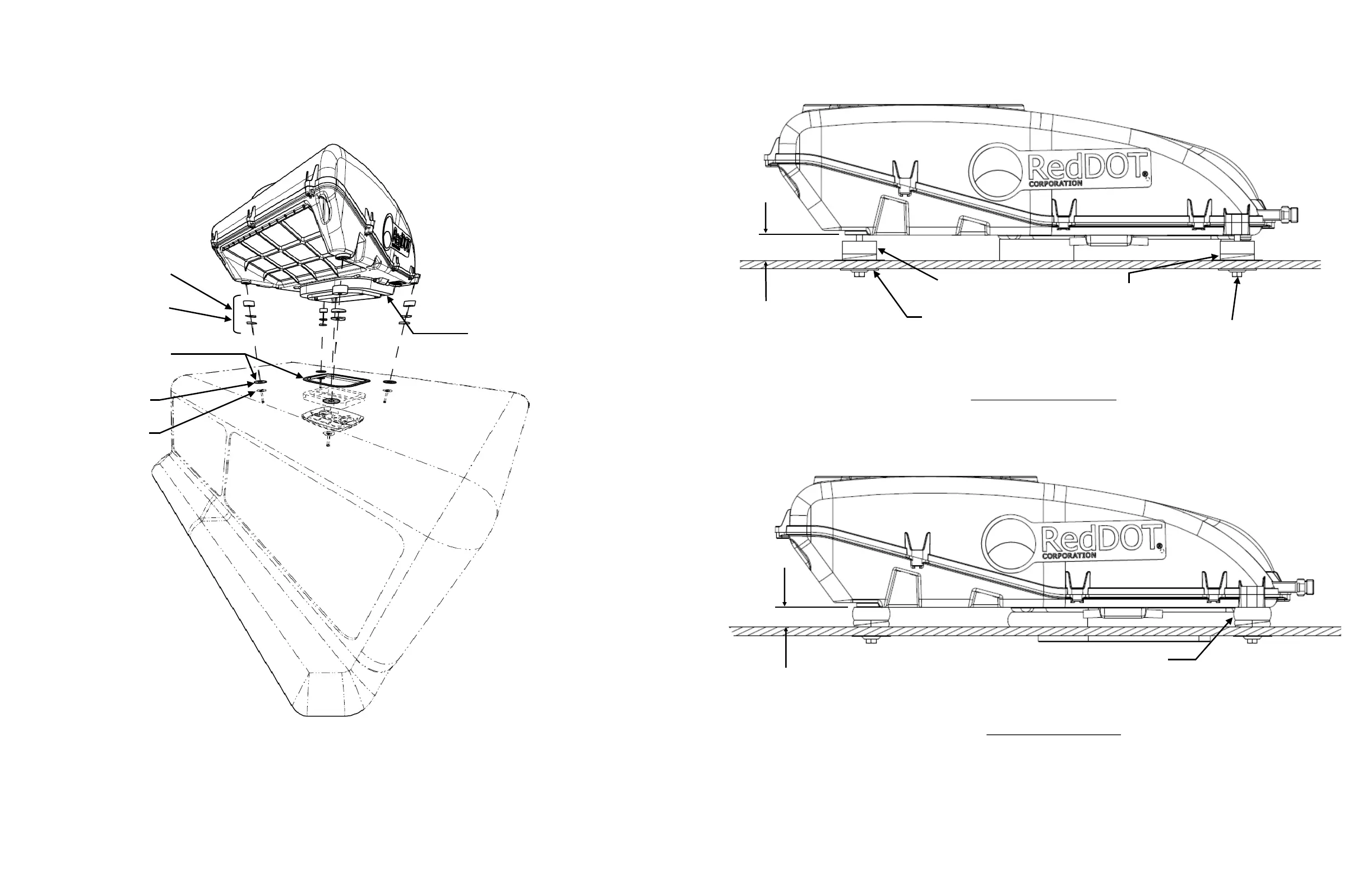

Reddot R-6101 - Install and Tighten Spacers

Figure 1
Apply adhesive to bottom
surface of ring
Washers
(4 Places)
Drill holes
Apply adhesive to all
surfaces
Spacers
(4 Places)
Clean with solvent 1” all
around – apply adhesive
RD-2-7315-0 2 SUBJECT TO CHANGE WITHOUT NOTICE
BEFORE TIGHTENING
AFTER TIGHTENING
3/4”
Spacer
Add spacers to provide 1/16” to
1/8” gap (typical) with unit level
Washer
Tapered
Spacer
3/8 –16 Mtg. Bolt
1.00 ± .13
Slight Bulge
Figure 2
RD-2-7315-0 3 SUBJECT TO CHANGE WITHOUT NOTICE
