Drawing No. LP0909 Revised 03/2023

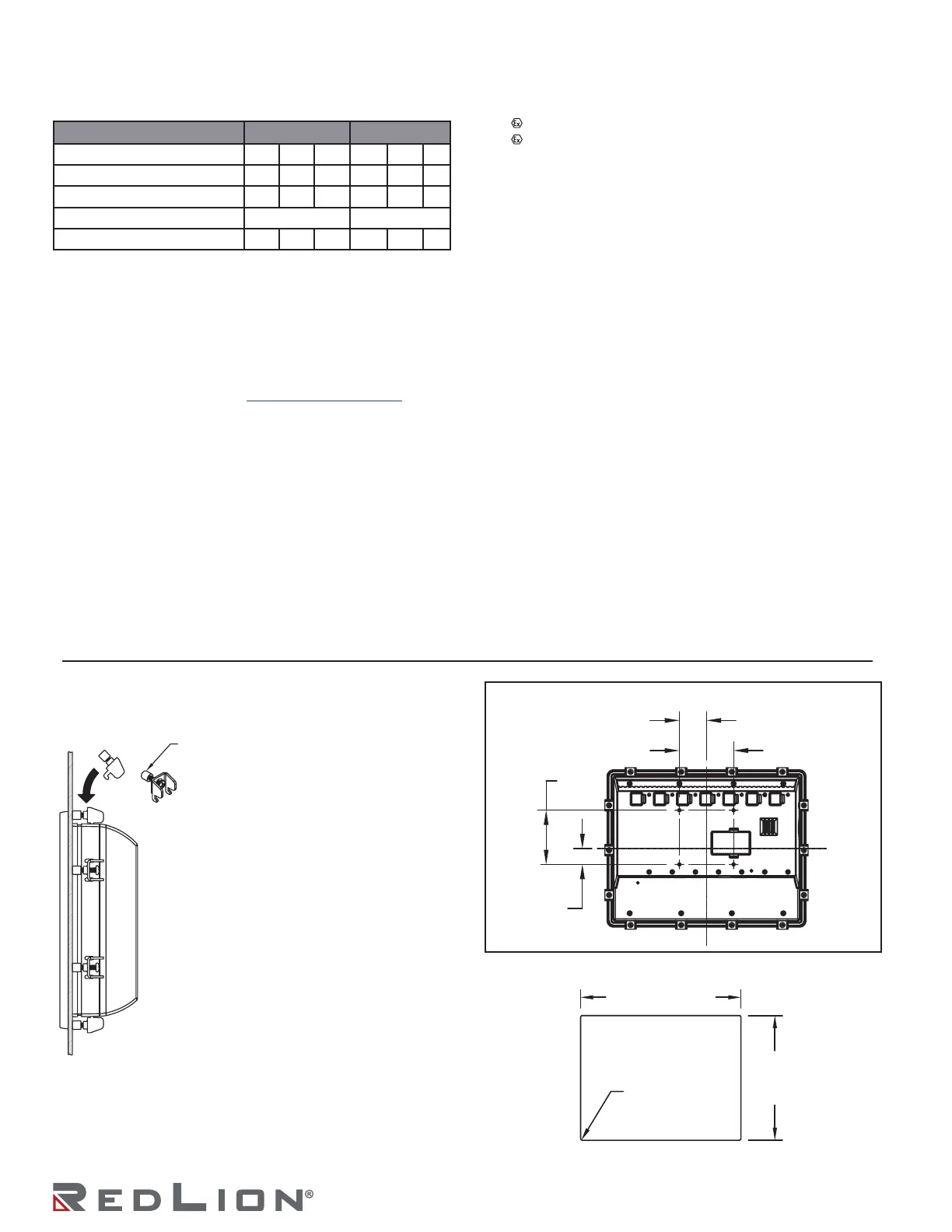

SPECIFICATIONS
POWER:
G10C/R G10S
Input Voltage (V) 10 24 30 10 24 30
Typical Power HMI only (W): 10 11 11 15 16 16
Maximum Power HMI only (W): 15 16 17 20 21 22
Available Power for Modules (W): 29 29
Max Power HMI with Module(s) (W): 44 46 47 50 51 52
Must use a Class 2 circuit according to National Electrical Code
(NEC), NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1
or a Limited Power Supply (LPS) according to IEC/EN 60950-1
or Limited-energy circuit according to IEC/EN 61010-1.
Power connection via removable three position terminal block.
ENVIRONMENTAL CONDITIONS:
AMB
, or lowest
range among equipment used in your Graphite system.
Consult the user manual or www.redlion.net/OpTemp for
further details.
AMB
Vibration to IEC 68-2-6: Operational 5-500 Hz, 4 g
Shock to IEC 68-2-27: Operational 40 g (10 g, modules w/
relays)
Operating and Storage Humidity: 0 to 85% max. RH non-
condensing
Altitude: Up to 2000 meters
Installation Category II, Pollution Degree 2 as defined in IEC/
EN60664-1.
CERTIFICATIONS AND COMPLIANCES:
CE Approved
EN 61326-1 Immunity to Industrial Locations
Emission CISPR 11 Class A
IEC/EN 61010-1
RoHS Compliant
ATEX Approved
II 3 G Ex ic nA IIC T4 Gc
DEMKO 14 ATEX 1387X
EN 60079-0, -11, -15, -31
IECEx Approved
Ex ic nA IIC T4 Gc
IECEx UL 15.0035X
IEC 60079-0, -11, -15, -31
UKEX Approved
UL22UKEX2574X
CCC Approved
G10C0000 and G10C100 have obtained CCC certification
and meet the requirements of GB/T3836.1-2021, GB/
T3836.3-2021, GB/T3836.4-2021, and GB/T3836.31-
2021
UL Listed: File #E302106
UL Hazardous: File #E317425
Type 4X Indoor / IP66 Enclosure rating (Face only) for all models
Type 4X Outdoor Enclosure rating (Face only) for G10Sxxxx
models
IP20 Enclosure rating (Rear of unit)
ABS Type Approval for Shipboard Applications
CONNECTIONS: High compression cage-clamp terminal block
Wire Strip Length: 0.3" (7.5 mm)
Wire Gauge Capacity: One 14 AWG (1.63 mm) solid,
two 18 AWG (1.02 mm) or four 20 AWG (0.81 mm)
CONSTRUCTION: Cast aluminum enclosure with NEMA 4X/
IP66 rating when correctly fitted with the gasket provided.
These devices have only been evaluated for low risk of
mechanical impact.
WEIGHT: 4.8 lb. (2.18 Kg)
OPERATOR INTERFACE INSTALLATION
MOUNTING INSTRUCTIONS
This operator interface is primarily
designed for through-panel mounting. Four
VESA mount tapped screw-holes (M4 x 0.7, 5
mm deep) are present on the rear of the panels to
allow for stand or wall mounting. Care should be
taken to remove any loose material from the
mounting cut-out to prevent that material from
falling into the operator interface during
installation. A gasket is provided to enable sealing
to NEMA 4X/IP66 specification. To maintain the
IP66 rating of the panel, an equivalently IP rated
enclosure should be used. Install the fourteen
mounting clips provided and tighten to 6.0 pound-
force inch [96 ounce-force inch] (0.68 N m) evenly
for uniform gasket compression.
Provisions should be made to prohibit the product
from being exposed to UV radiation while in use. Care
should be taken not to rub or buff the touchscreen surface in a
way that might cause the accumulation of static charges.
FOOT MAY BE REMOVED
FOR THICKER PANEL
INSTALLATIONS
.87
(22.1)
2.95 (75)
1.48 (37.5)
2.95
(75)
VESA MOUNT (MIS-D 75) DIMENSIONS
7.931
(201.4)
4X R.10 (2.5)
MAX.
ll tolerances ±.059" (±1.5 mm)
PANEL CUT-OUT
