Parts List : EBZ8000/EBZ8000RH
Key# Part Number Description Q'ty
1 T1108-81450 BODY ASSY 1
2–SCREEN 1
3–VALVE 1
4–SPRING 1
5–SCREW 1
6–PIN 1
7–LEVER 1
8 1850-81490 BODY 1
9 1850-81520 COVER 1
10 1751-81510 PUMP 1
11 5500-81160 WASHER 1
12 1881-81140 SWIVEL 1
13 1751-81130 RING 1
14 – GASKET 1
15 – DIAPHRAGM 1
16 – GASKET 1
17 – DIAPHRAGM 1
18 1752-81110 SCREW 2
Key# Part Number Description Q'ty
19 5500-81120 BRACKET 1
20 1751-81180 NUT 1
21 1918-81170 SCREW 1
22 848H0080A0 RING, PACKING 1
23 1850-81530 SCREW 4
24 2750-81250 JET #59.0 1
25 1751-81240 O-RING 1
26* – BODY 1
27* – VALVE ASSY 1
28 4810-06020 GASKET KIT *Acc
(KEY# 14,15,16,17)
[NOTE]
26*-BODY and 27*-VALVE ASSY are not supplied
as an individual part respectively, but supplied as a
CARBURETOR ASSY (P/NO. 848H008100).

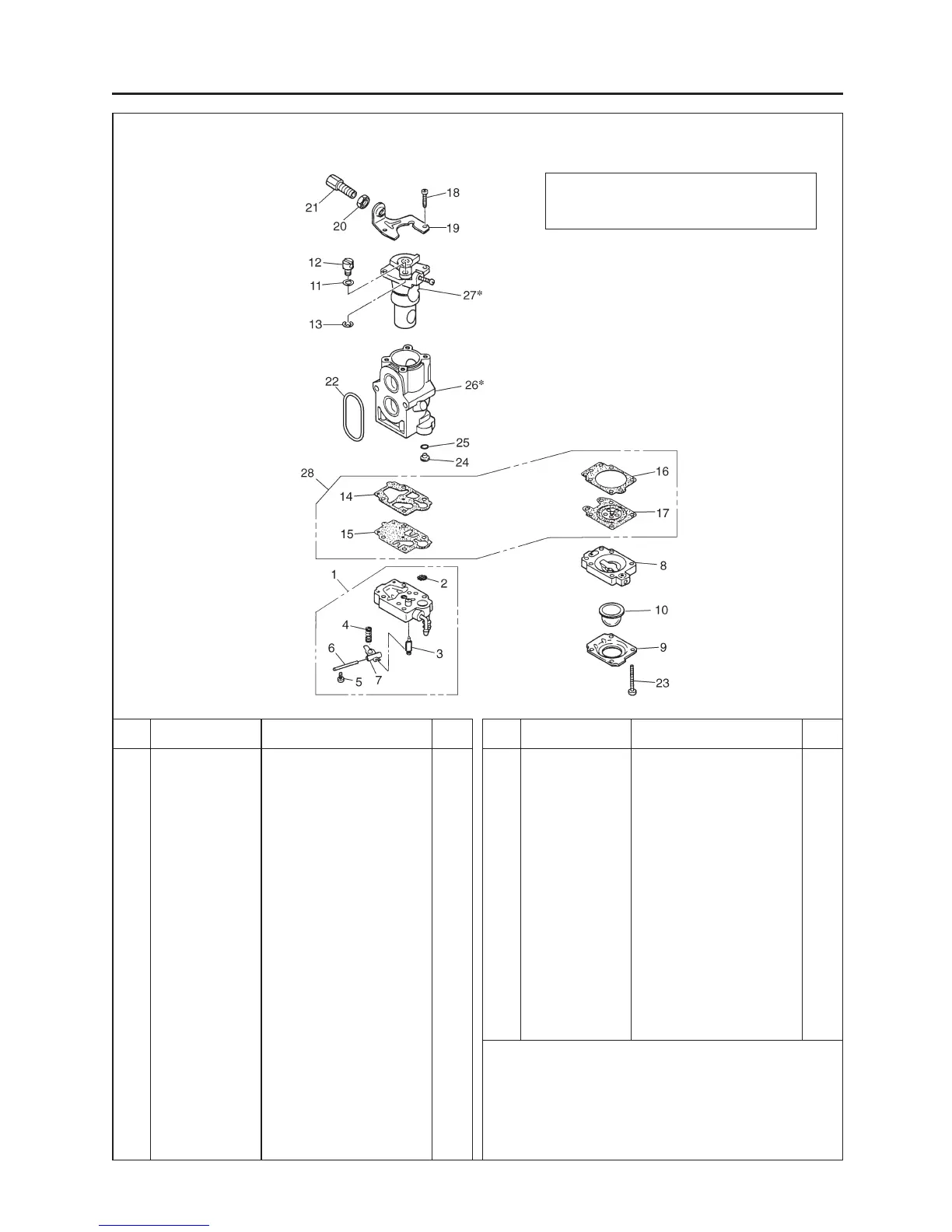

Fig.3 CARBURETOR COMPONENTS (S/N 40500101 and up)
CARBURETOR ASSY (WYA-44)
P/NO. 848H008100
*Acc: Accessory, which is not included in standard package.
