26

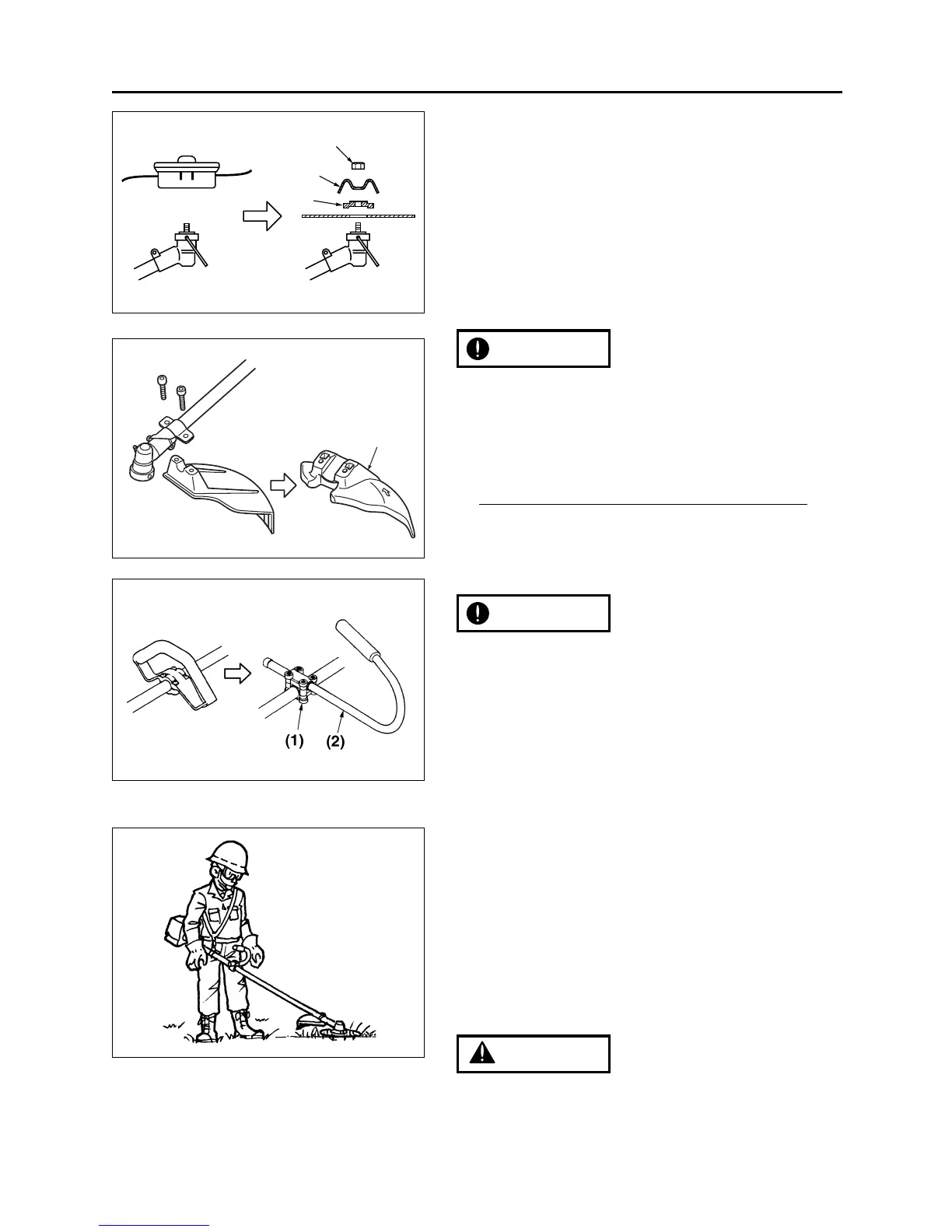

11. Optional blade usage
■ SET UP THE BLADE
1. Detach the line head assembly. (OPT2)
2. Put on the blade, making the marked side face
the shaft side, put the holder and the cover on,
and fasten the blade with the nut. (OPT2)
(1) Cover: 3540-13283
(2) Holder (B): 6019-13250 (STANDARD)
(3) Nut: T3002-13260 (STANDARD)
[BCZ3000S/BCZ3000SW]
Change to the debris guard which is suitable for
the metal blade. (OPT3)
26~43.5 in-lbs
TIGHTENING TORQUE:
(2.94~4.9 N.m.)
(1) Guard: T3246-24110
[BCZ3000S]
Change the loop handle to the J-handle for safe
operation. (OPT4)
(1) Bracket: 3583-14101
(2) J-handle: 6367-14200
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit balances with
head just touching on the ground. (OPT5)
■ STARTING THE ENGINE
Please refer 5.For safe operation (P.9~10),
8.Operation (P.18).
• The product is equipped with a centrifugal
clutch mechanism, so the cutting attachment
begins to rotate as soon as the engine is
To Next Page
