Parts List : EB4401

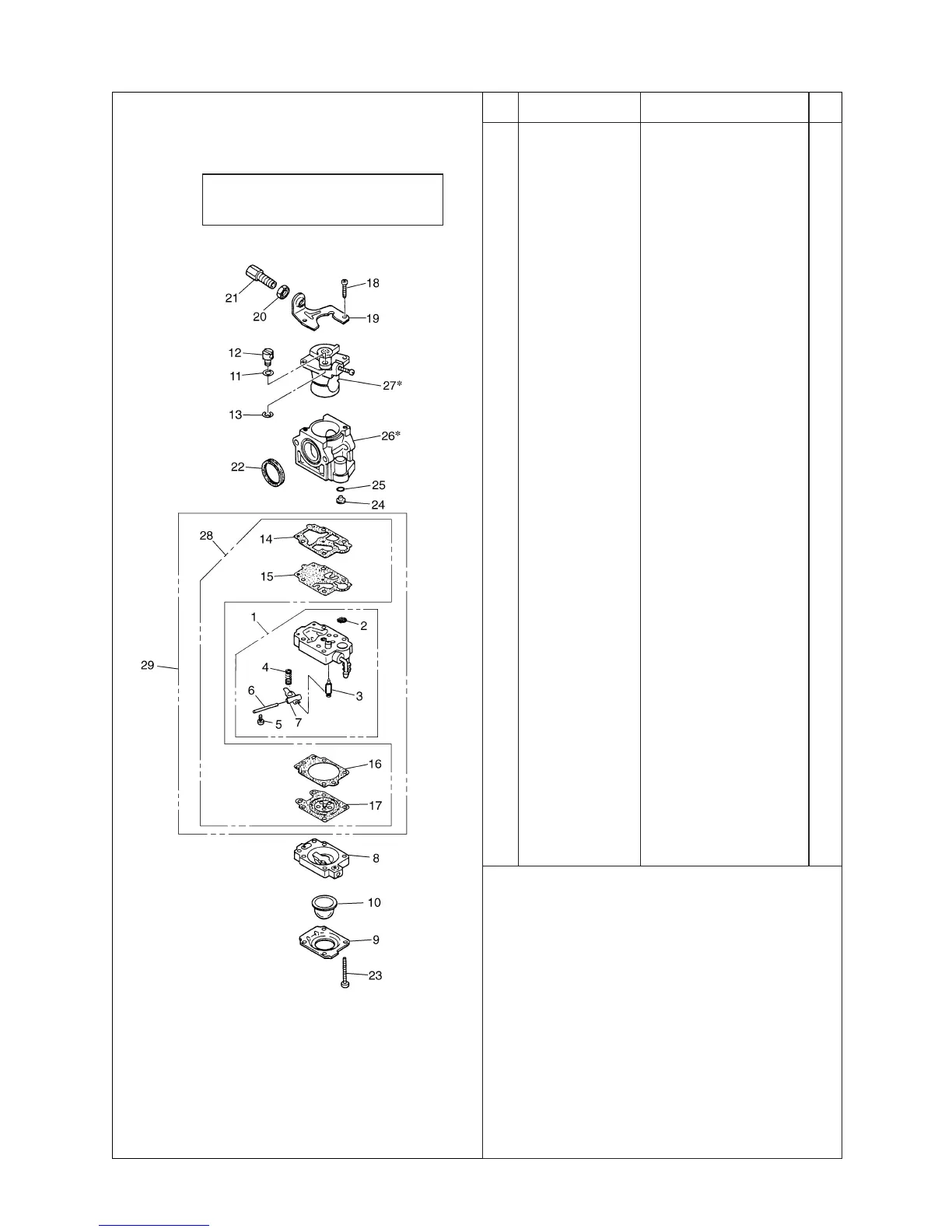

Fig.3 CARBURETOR COMPONENTS
(S/N 310001 and up)
Key# Part Number Description Q'ty
1 1850-81450 Body ass’y 1
2 ————— Screen 1
3 ————— Valve 1
4 ————— Spring 1
5 ————— Screw 1
6 ————— Pin 1
7 ————— Lever 1
8 1850-81490 Body 1
9 1850-81520 Cover 1
10 1751-81510 Pump 1
11 5500-81160 Washer 1
12 1881-81140 Swivel 1
13 1751-81130 Ring 1
14 ————— Gasket 1
15 ————— Diaphragm 1
16 ————— Gasket 1
17 ————— Diaphragm 1
18 1752-81110 Screw 2
19 5500-81120 Bracket 1
20 1751-81180 Nut 1
21 1918-81170 Screw 1
22 1881-81130 Ring 1
23 1850-81530 Screw 4
24 3407-81250 Jet 1
25 1751-81240 O-Ring 1
26* ————— Body 1
27* ————— Valve ass’y 1
28 5602-06020 Gasket Kit OP
(Key# 14,15,16,17)
29 5602-06030 Rebuild Kit OP
(Gasket Kit + Key# 1)
[NOTE]
• 26*-Body and 27*-Valve ass’y are not supplied
as an individual part respectively, but supplied
as a carburetor ass’y (P/NO. 3407-81000).
Carburetor Ass’y (WYK-67)
P/NO. 3407-81000
