RedMax EBZ7001 - Page 51

51

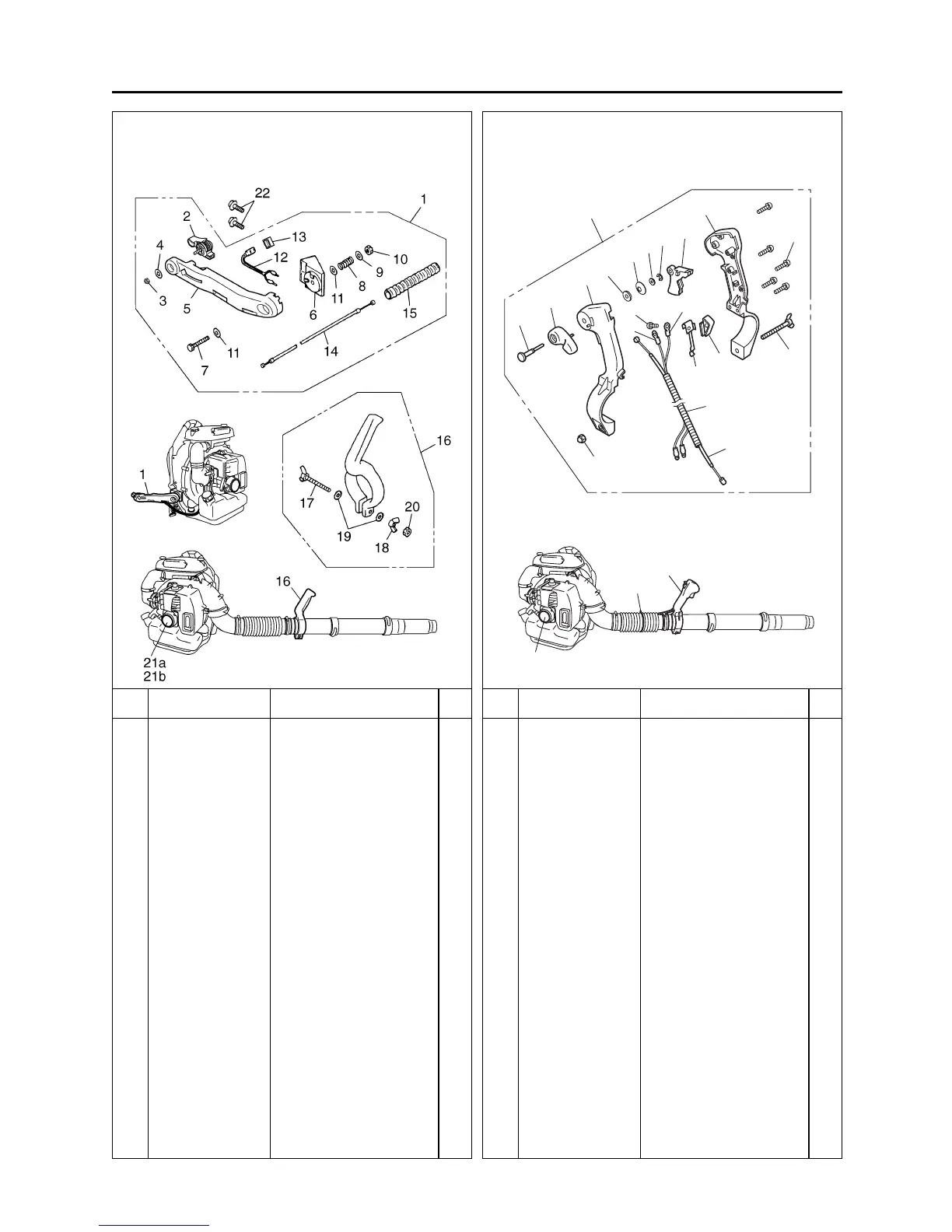

13. Parts List : EBZ7001/EBZ7001RH/EBZ7001-CA/EBZ7001RH-CA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
22a
22b
Fig.4 LEVER SET
(EBZ7001 : S/N 60600101 and up)
(EBZ7001-CA : S/N 70400101 and up)
Fig.5 LEVER (R) SET
(EBZ7001RH : S/N 60600101 and up)
(EBZ7001RH-CA : S/N 70400101 and up)
Key# Part Number Description Q'ty
1 848-L58-3301 LEVER SET 1
2 T4012-25100 • LEVER 1
3 3310-53331 • NUT 1
4 01642-20508 • WASHER 1
5 T4012-25211 • ARM 1
6 T4012-25311 • BRACKET 1
7 3495-25410 • BOLT 1
8 3495-25420 • SPRING 1
9 3495-25440 • WASHER 1
10 01584-00605 • NUT 1
11 3495-25450 • WASHER 2
12 848-L53-72A2 • SWITCH 1
13 1601-72411 • CAP 1
14 848-L53-72A2 • CABLE COMP. 1
15 848-8H1-3052 • TUBE 1
16 848-L58-6521 GRIP ASSY 1
17 2750-51520 • WING BOLT 1
18 3495-51430 • WING NUT 1
19 3238-15230 • WASHER 2
20 2750-51540 • NUT 1
21a 848-L5C-90C2 LABEL, RECOIL 1
21b 848-L63-90C0
LABEL, RECOIL (CA only) 1
22 T4960-51631 SCREW TORX 2
Key# Part Number Description Q'ty
1 848-L59-3411 LEVER (R) SET 1
2 848-L59-34B0 • COVER 1
3 848-L59-34A0 • CASE 1
4 T4023-25310 • SCREW 4x14 5
5 T4023-25410 • LEVER, throttle 1
6 848-L54-34D1 • LEVER 1
7 T4023-25440 • SHAFT 1
8 T4023-25450 • WASHER 1
9 T4023-25460 • SPRING WASHER 1
10 3238-15230 • WASHER 1
11 T4023-25480 • CLIP 1
12 T4023-25710 • SWITCH 1
13 T4023-25721 • SPRING 1
14 T4023-25730 • SCREW 4x10 1
15 T4023-25740 • CORD 1
16 T4023-25750 • CORD 1
17 848-8P0-0190 • CABLE 1
18 848-8H1-9402 • TUBE 1
19 3495-51420 • WING BOLT 1
20 2750-51540 • NUT 1
21 848-L59-65G0 CLAMP 1
22a 848-L5C-90C2
LABEL, RECOIL 1
22b 848-L63-90C0
LABEL, RECOIL (CA only) 1
